Service Parts
IMPORTANT: THIS IS DATED INFORMATION. When requesting service or replacement
parts for your appliance please provide model number and serial number. All parts listed
in this manual may be ordered from an authorized dealer.
Stocked
at Depot
ITEM DESCRIPTION COMMENTS PART NUMBER
15.1 Gasket , Pilot Bracket 4066-328
15.2 Male Elbow 4021-045
15.3 SS Flex Line 4021-696 Y
15.4
Pilot Assembly NG 4021-628 Y
Pilot Assembly LP 4021-629 Y
Pilot Tube 4021-705 Y
15.5 Battery Pack** 2166-323 Y
15.6 Wire Assembly 4021-697 Y
15.7 On/ Off Switch 060-511 Y
15.8 Wire Assembly 4021-697
15.9 Module 2166-307 Y
15.10 Valve Bracket 4066-115
15.11 Flex Ball Valve Assembly 2078-022 Y
15.12 90 Degree Elbow 4021-373
15.13
Valve NG 2166-302 Y
Valve LP 2166-303 Y
Wire Harness 2166-304 Y
Electric Conversion Kit to AC Power ELEC-CARODG
Power Supply 2166-305 Y
Wire Assembly 4021-711 Y
Wire Harness 2166-304 Y
Orifi ce, NG
CARODG36i
4066-154 Y
Orifi ce, LP 4066-155 Y
Orifi ce, NG
CARODG42i
4067-154 Y
Orifi ce, LP 4067-155 Y
**Fuse for battery pack can be sourced locally, not a warranty item. Specs are 500mA~10A 3/4” long

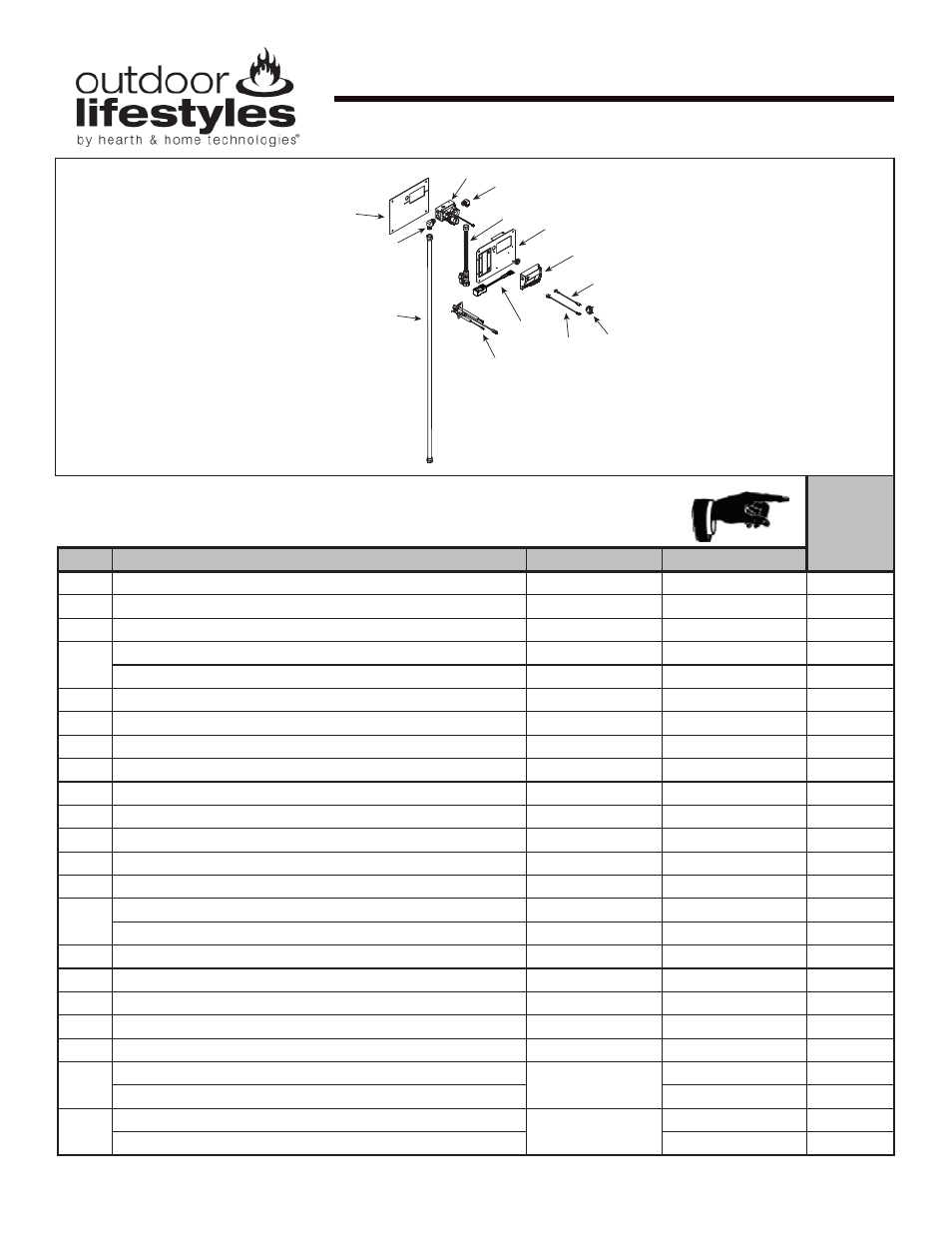

#15 Valve Assembly
15.1
15.2
15.3
15.4
15.5
15.6 15.7
15.8
15.9
15.10
15.11
15.12
15.13
CARODG36
I
, CARODG42
I
Beginning Manufacturing Date: Sept 2009
Ending Manufacturing Date: Active
