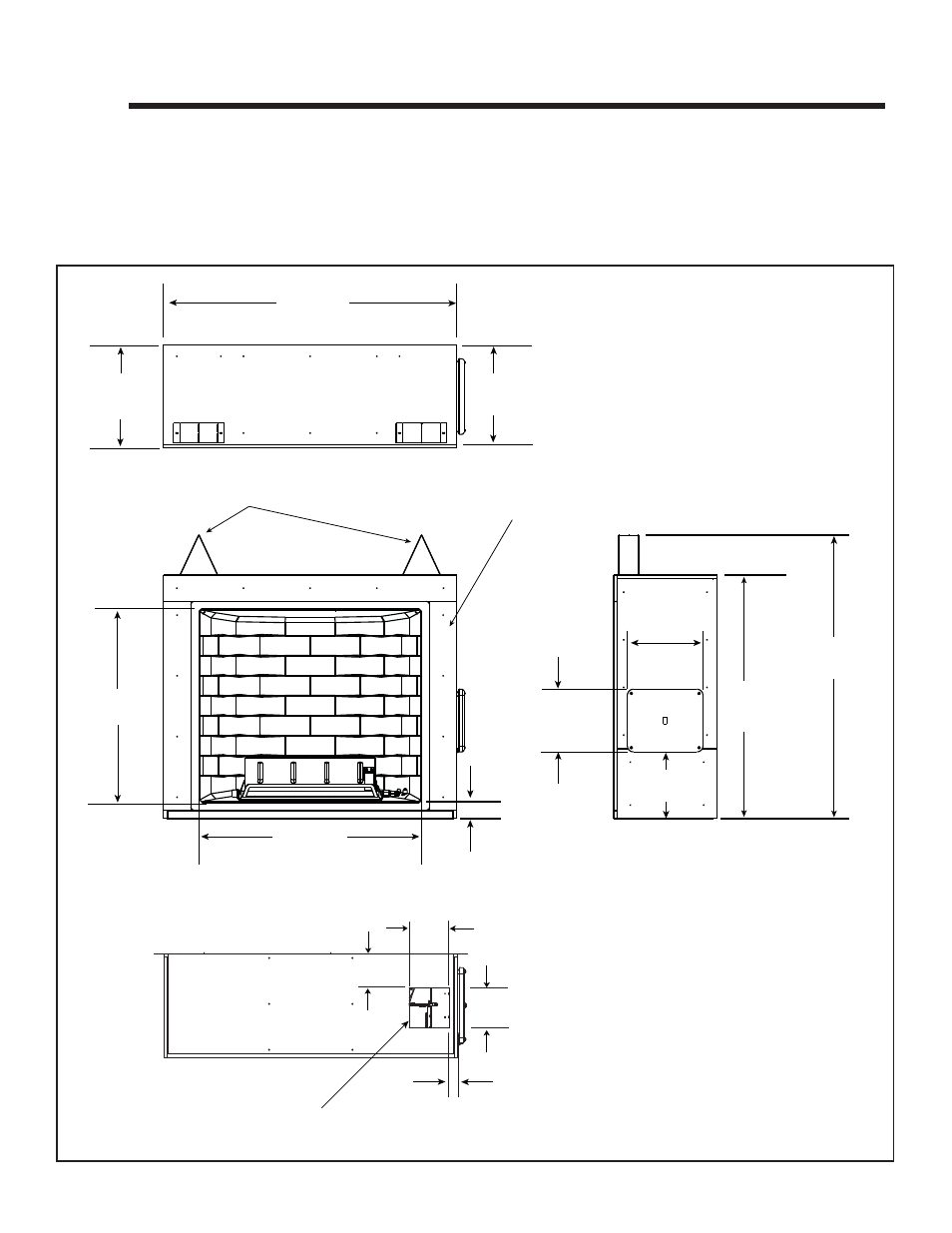

A. Appliance Dimension Diagram
Dimensions are actual appliance dimensions. Use for reference only. For framing dimensions and clearances refer to
Section 3.
44 in.
(1118 mm)
28-7/8 in.
(734 mm)
33-3/8 in.
(848 mm)
42-1/2 in.
(1080 mm)
36-1/2 in.
(927 mm)
15-1/2 in.
(394 mm)
NON-COMBUSTIBLE BOARD
STANDOFFS CAN BE REMOVED
IF NOT INSTALLED IN A WALL
15 in.
(381 mm)
11-1/2 in.
(292 mm)
9-1/2 in.
(241 mm)
10 in.
(254 mm)
2-1/4 in.
(57 mm)
TOP VIEW
BOTTOM VIEW
FRONT
3/4 in.
(19 mm)
6 in.
(152 mm)
6 in.
(152 mm)
5-1/8 in.
(130 mm)
GAS ACCESS LOCATION ON APPLIANCE
IF CONTROL BOX IS LOCATED ON SIDE OF APPLIANCE
Figure 12.1 Appliance Dimensions - CARODG36I, CARODG36IL
