B. Control Module Operation
1. The control module has an ON/OFF/REMOTE selector
switch that must be set. See Figure 6.1 and 6.2.
OFF Position: Appliance will ignore all power inputs and
will not respond to any commands from a wall switch or
remote. The unit should be in the OFF position during
installation, service, battery installation, fuel conversion,
and in the event that the control goes into LOCK-OUT
mode as a result of an error code. The external control
switch must be in the OFF position also.
ON Position: Appliance will ignite and run continuously
in the HI fl ame setting, with no adjustment in fl ame
output. This mode of operation is primarily used for
initial installation or power outage operation with battery
backup. The external control switch must be in the ON
position also.
REMOTE Position: Appliance will initiate commands from
an optional wired wall switch and/or one of the optional
wireless remote options. The external control switch
must be in the ON position also.
2. With the module in REMOTE mode, the fl ame output
can be adjusted with the HI/LO selector switch on the
module. See Figure 6.2. Note that the control module will
always ignite the fi replace on HI and remain so for the
initial 10 seconds of operation. If the HI/LO is switched to
the LO position, the fl ame output will automatically drop
to the lowest setting after the fl ame has been established
for 10 seconds. After this 10-second period, the fl ame
can be adjusted from HI to LO with the switch.
3. The control module has a safety feature that automatically
shuts down the fi replace after nine hours of continuous
operation without receiving a command from the wall
switch or optional remote.
4. The module has the capability to recognize potential
malfunctions. If these occur, it will fail to ignite and/or
respond to a command to ignite. If it fails to ignite, turn
off the external control switch and wait fi ve seconds
and turn back on. If it fails to light the second time,
see Trouble Shooting guide. In this case, the module
may have gone into LOCK-OUT mode. In this state, it
will emit a RED/GREEN LED error code. To reset the
error code, switch the selector to OFF, and then back to
REMOTE or ON. If the ignition command again fails, the
module will emit an LED error code prior to going back
into LOCK-OUT mode. Contact your dealer for service
if this occurs.
NG/LP SETTING
WIRE LEAD FROM REGULATOR CONNECTS HERE
MODULE

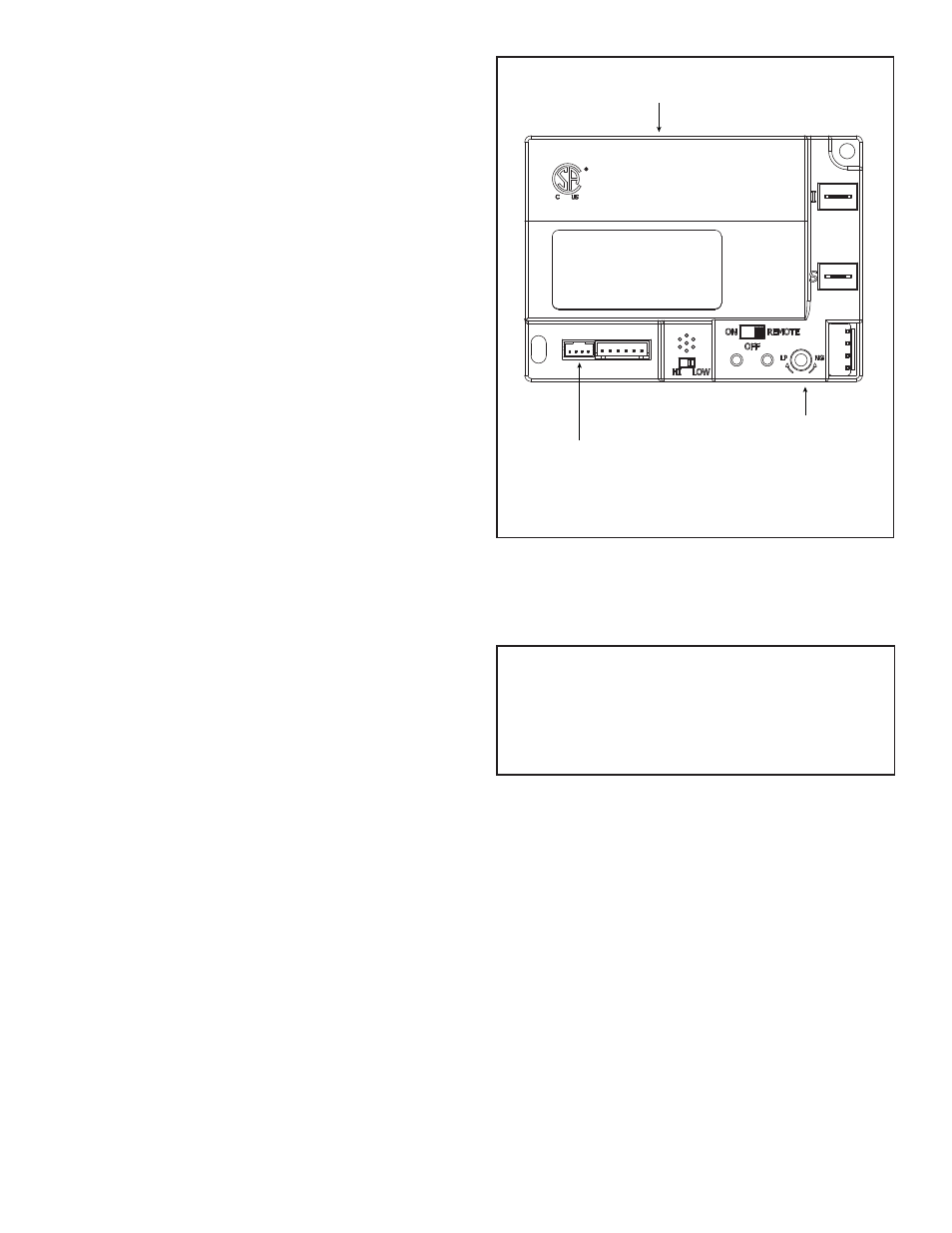

Figure 6.2 Control Module
Nine Hour Safety Shutdown Feature
The appliance has a safety feature that automatically
shuts down the fi replace after nine hours of continuous
operation without receiving a command from the wall
switch or optional remote.
