Chapter 4 • Cabling and connections
34
1035567-0001 Revision A
Receive cable Connect the receive cable to the LNB as follows:
1. Connect the receive cable (marked with red tape) to the LNB
connector as illustrated in Figure 32.
2. Tighten the cable connector with a 7/16-in. wrench.
3. Apply dielectric silicone grease to the connection.
4. Secure the cable with cable ties.

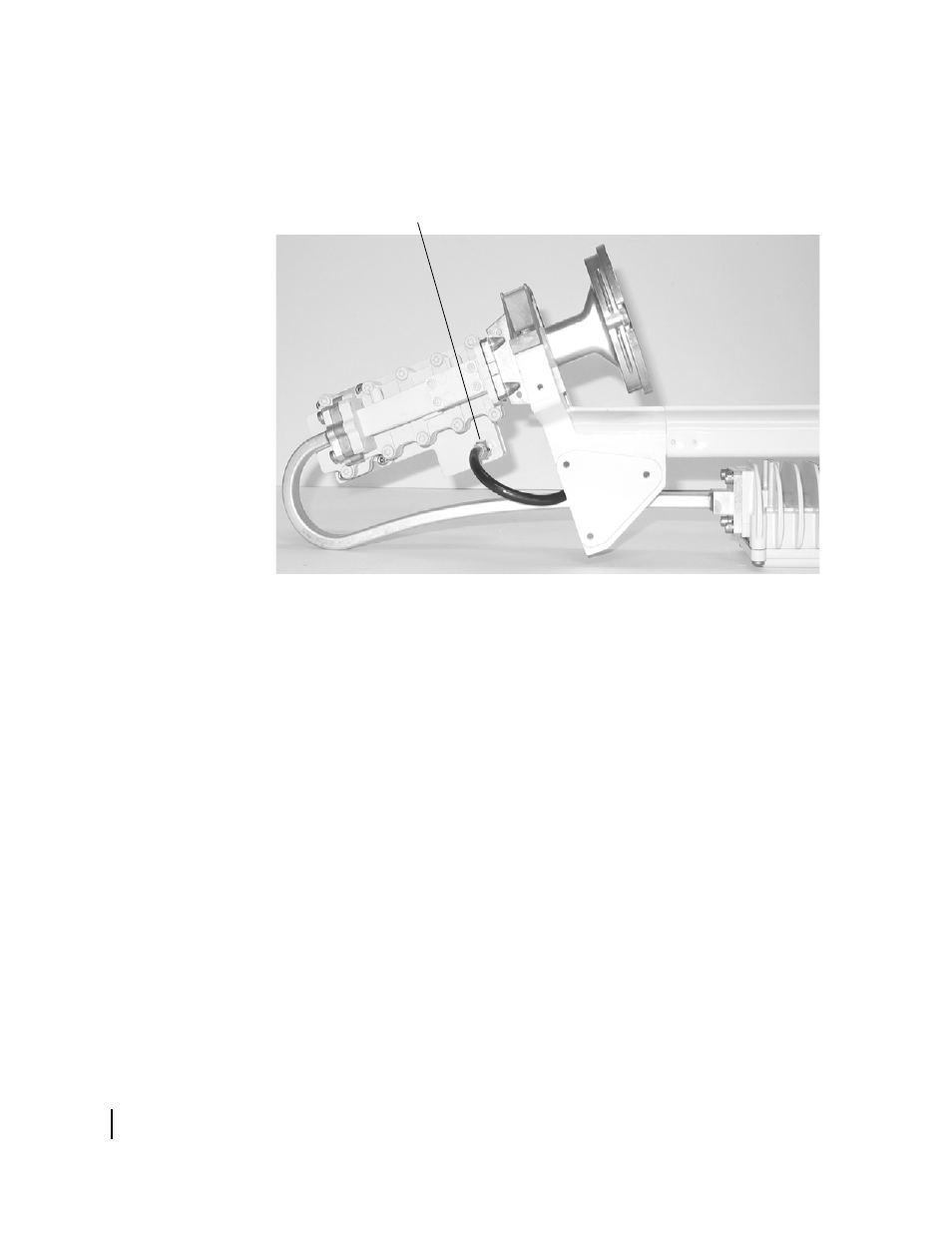

Figure 32: Connecting the receive cable to the LNB
Receive F connector, female
