Chapter 4 • Cabling and connections
1035567-0001 Revision A
33
Connecting the transmit
and receive cables This section explains how to connect the transmit and receive
cables to the radio assembly.
Transmit cable Connect the transmit cable to the transmitter as follows:
1. From inside the building, disconnect the IDU power supply.
2. Go outside and connect the transmit cable (marked with blue
electrical tape) to the transmitter connector marked IFL, as
shown in Figure 31.
Use a weatherproof connector.
3. Tighten the connection with a 7/16-in. wrench.
4. Secure drip loops and other points on the cable with cable
ties.
5. Back inside the building, reconnect the IDU power supply.

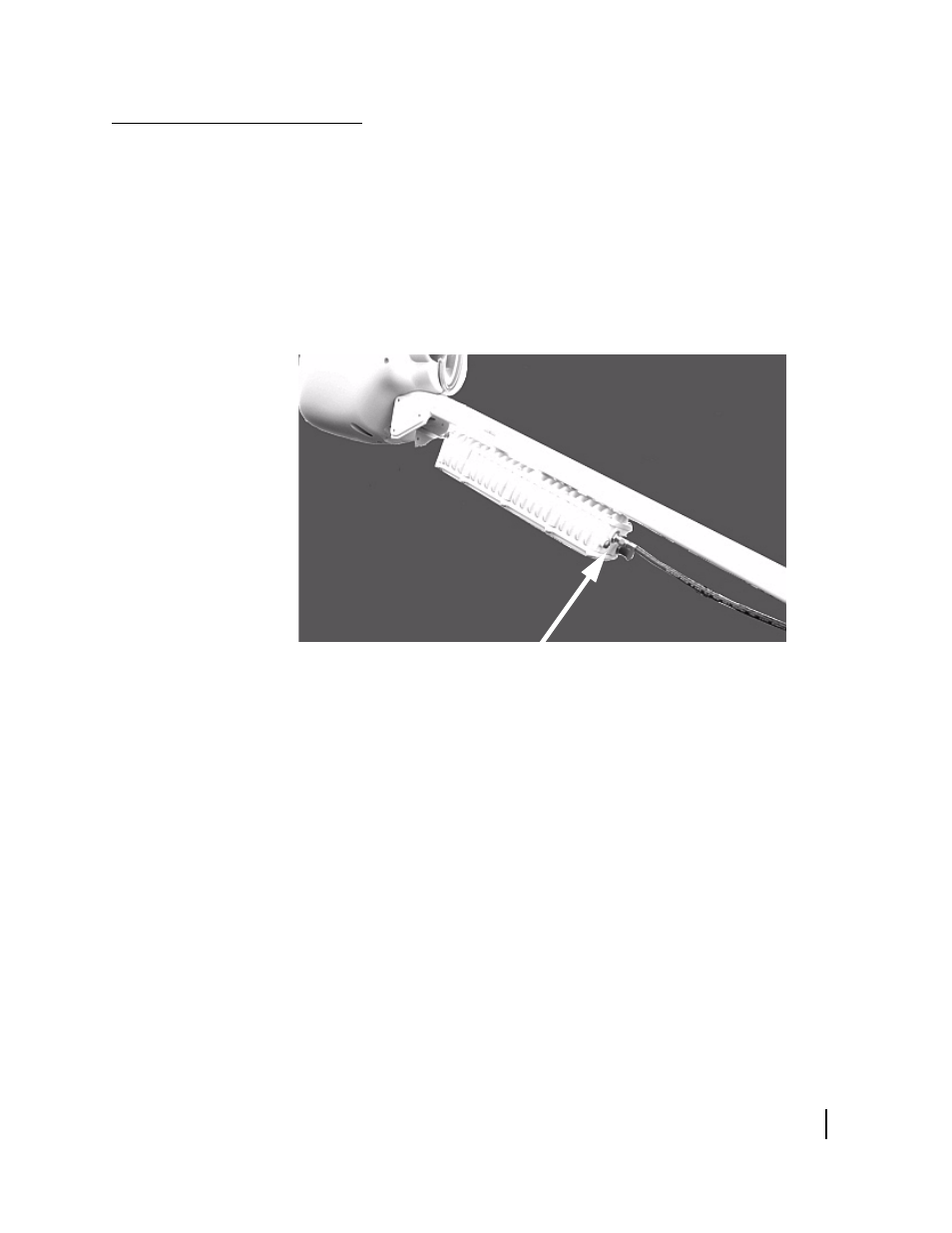

Figure 31: Connecting the transmit cable
Transmitter cable
connector
