Chapter 2 • Antenna parts and required tools
1035567-0001 Revision A
7
Feed arm and radio Figure 4 shows the feed arm, and Figure 5 shows the radio
assembly.
The radio assembly (Figure 5) consists of the transmitter, low
noise block converter (LNB), and transmit/receive isolation
assembly (TRIA).

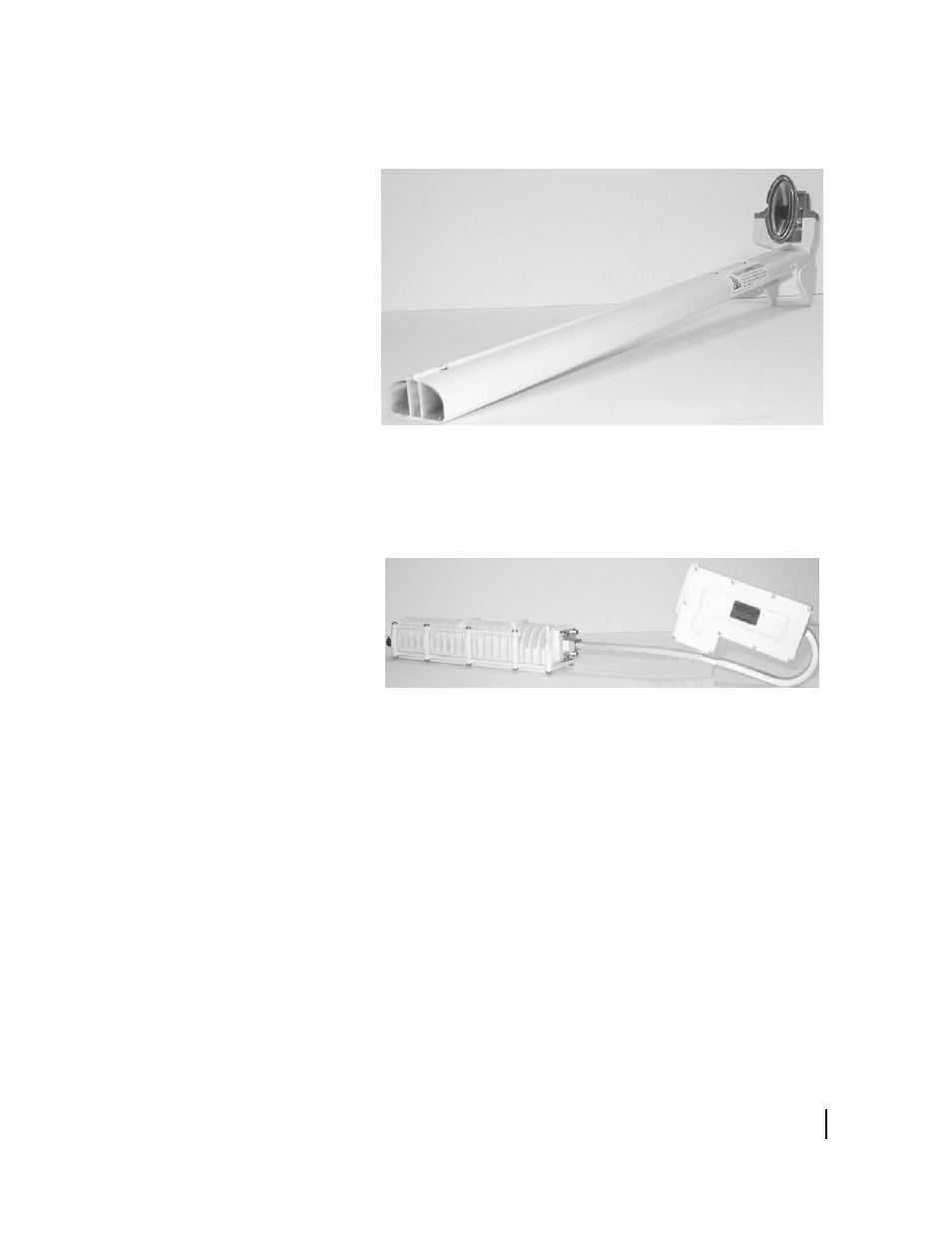

Figure 4: Feed arm (unattached)
Figure 5: Radio assembly
