Chapter 3 • Installing the radio and antenna assemblies
28
1035567-0001 Revision A
Installing the antenna
assembly onto the mast This section describes how to install the antenna assembly
(including the Az/El cap) onto the mast.
To install the antenna assembly onto the mast:
1. Lightly grease the area at the end of the mast or metal pole
that will be covered by the Az/El cap canister. This makes it
easy to rotate the antenna to adjust the azimuth. Any grease
will do; you can use automotive grease or household grease
such as Vaseline.
2. Use a 1/2-in. open-end wrench to loosen the three clamp nuts
and the elevation pivot bolt nut so the collar can slide over the
mast or metal pole.
3. Lift the antenna assembly and slide the Az/El cap onto the
mast or metal pole (see Figure 26).
The antenna should face toward the satellite.
4. Tighten the clamp nuts all the way, then loosen them just
enough to move the antenna reflector from side to side and
adjust the azimuth. The clamp bolts should be as snug as
possible, but still allow the antenna reflector to be moved
from side to side.

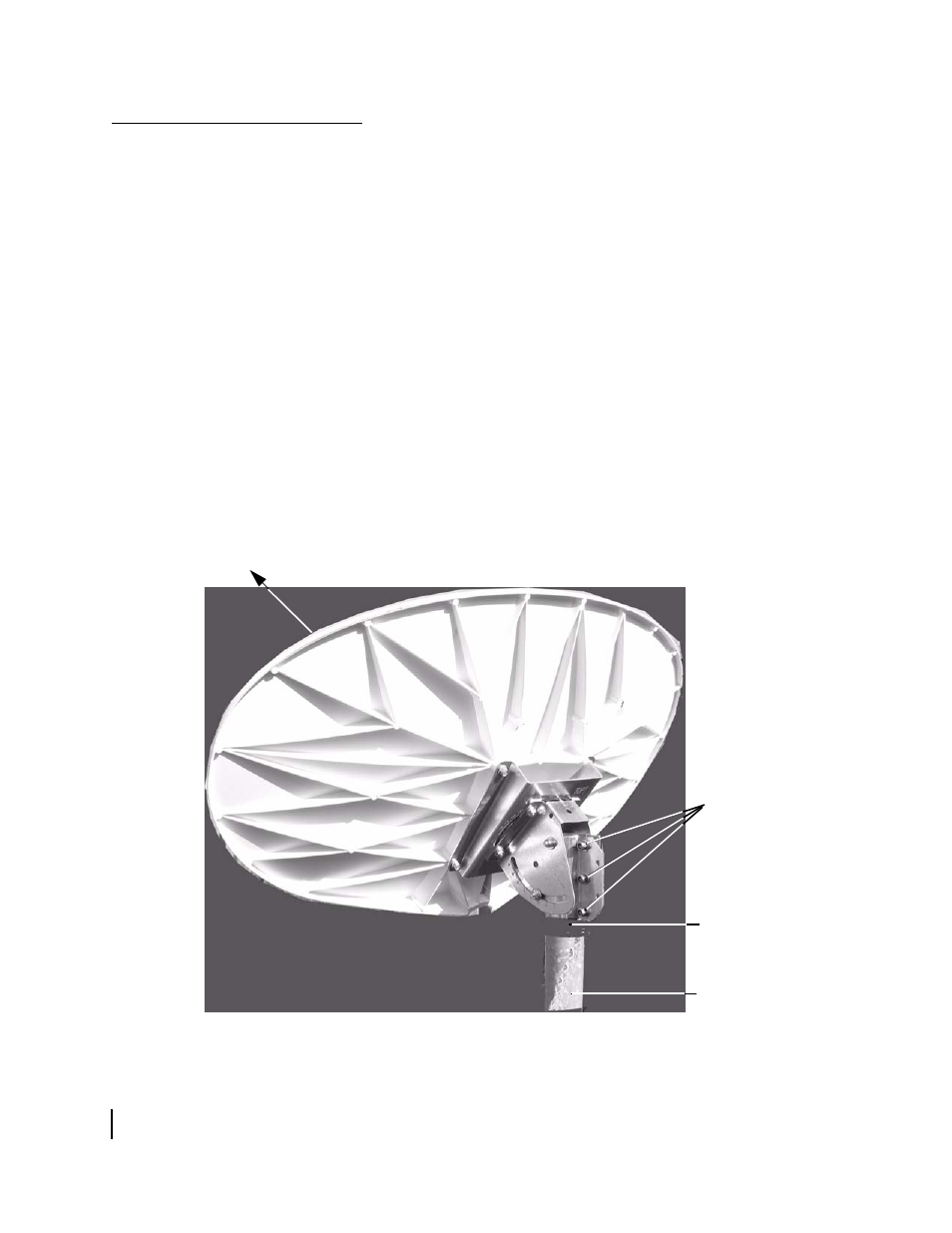

Figure 26: Installing the antenna assembly onto the mast
Clamp bolt nuts
Place Az/El cap
over mast or metal
pipe
Mast or metal pipe
To satellite
