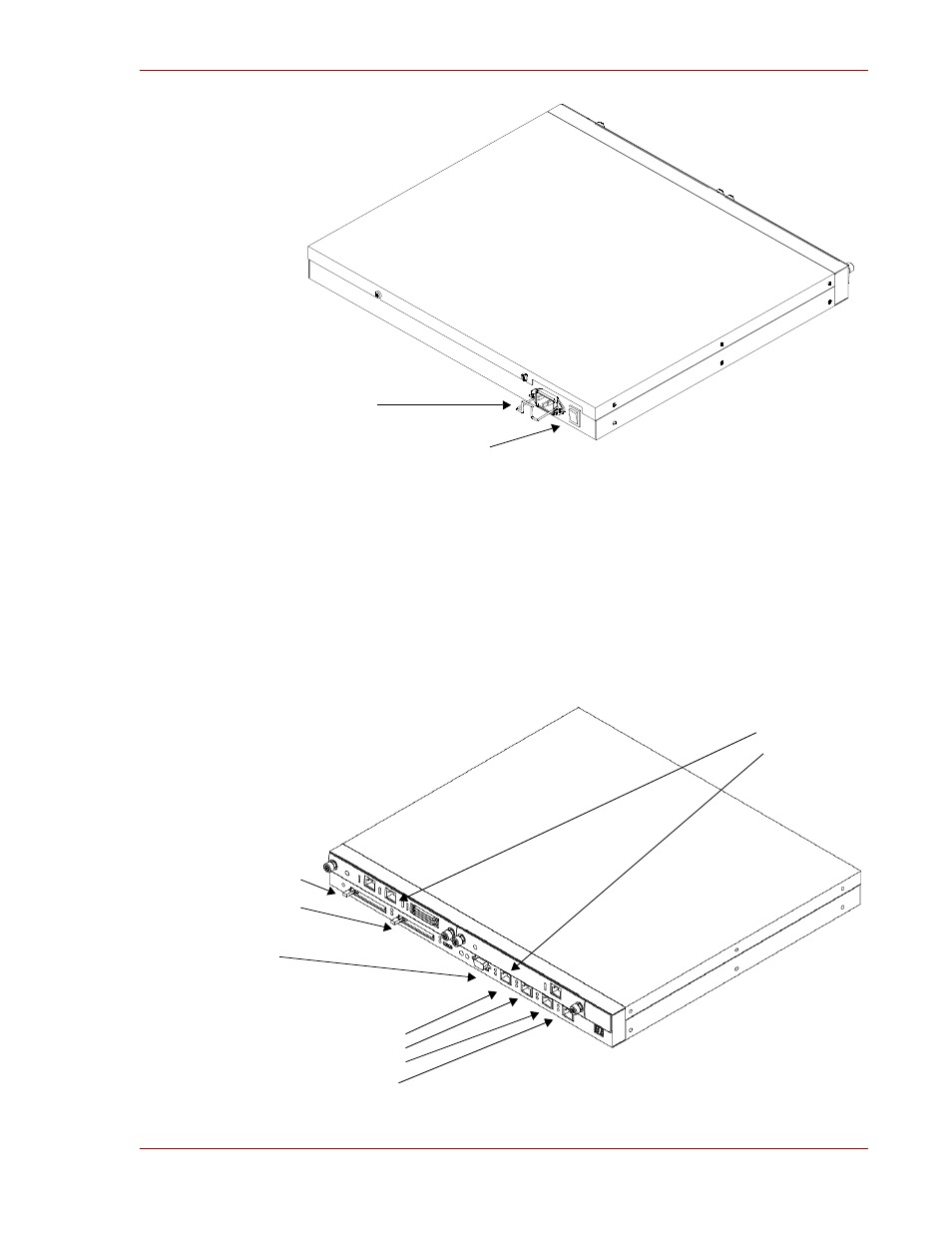

Figure 2-2 GR2000-1B Rear View
2.3.2 GR2000-2B
The GR2000-2B has the following hardware features.
„ Four built-in Ethernet ports 10BASE-T/100BASE-TX,
„ Two slot for network interface boards, and
„ Two MC (Memory Card) slots.
Figure 2-3 shows the front view of the GR2000-2B with both option slots filled.
Figure 2-4 show the rear view of the GR2000-2B.
Figure 2-3 GR2000-2B Front View
Power Plug with
Locking Bail
Power Switch
Memory Cards
Slot 1
(MEM CARD 1)
Slot 0
(MEM CARD 0)
RS-232C
Connector
(CONSOLE)
Built-In Ethernet
10BASE-T/100BASETX
3 (LINE 3)
2 (LINE 2)
1 (LINE 1)
0 (LINE 0)
Network Interface Slots
1 (NIF 1)
0 (NIF 0)
