2.3 Setting Up the GR2000-B
2.3.1 The GR2000-1B
The GR2000-1B has the following hardware features:
„ Two built-in Ethernet ports 10BASE-T/100BASE-TX,
„ One slot for a network interface board, and
„ Two MC (memory card) slots.
Figures 2-1 and 2-2 show the front and rear views of the GR2000-1B, respectively.

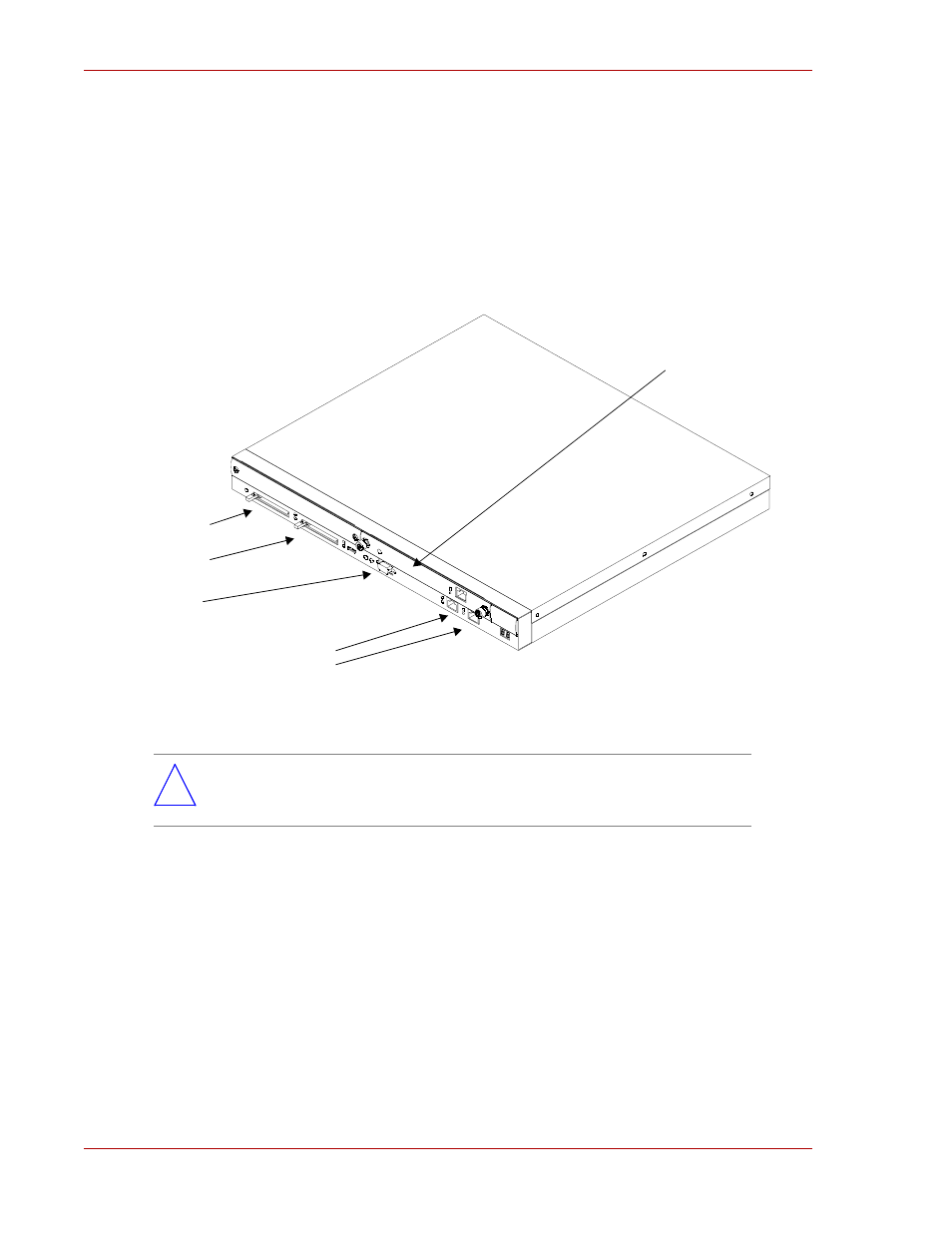

Figure 2-1 GR2000-1B Front View
*
Note: For the details about connectors, indicators, and switches, see the GR2000-B
Installation Guide.
Memory Cards
Slot 1
(MEM CARD 1)
Slot 0
(MEM CARD 0)
RS-232C
Connector
(CONSOLE)
Built-In Ethernet
10BASE-T/100BASETX
1 (LINE 1)
0 (LINE 0)
Network Interface
Slot 0
(NIF 0)
