Honeywell HD-16DVR-C - Manual (Page 117)

Honeywell
101
Iris close Open
In Figure 6-12 , click the PTZ setup button and you will see the following
interface. See Figure 6-13 .

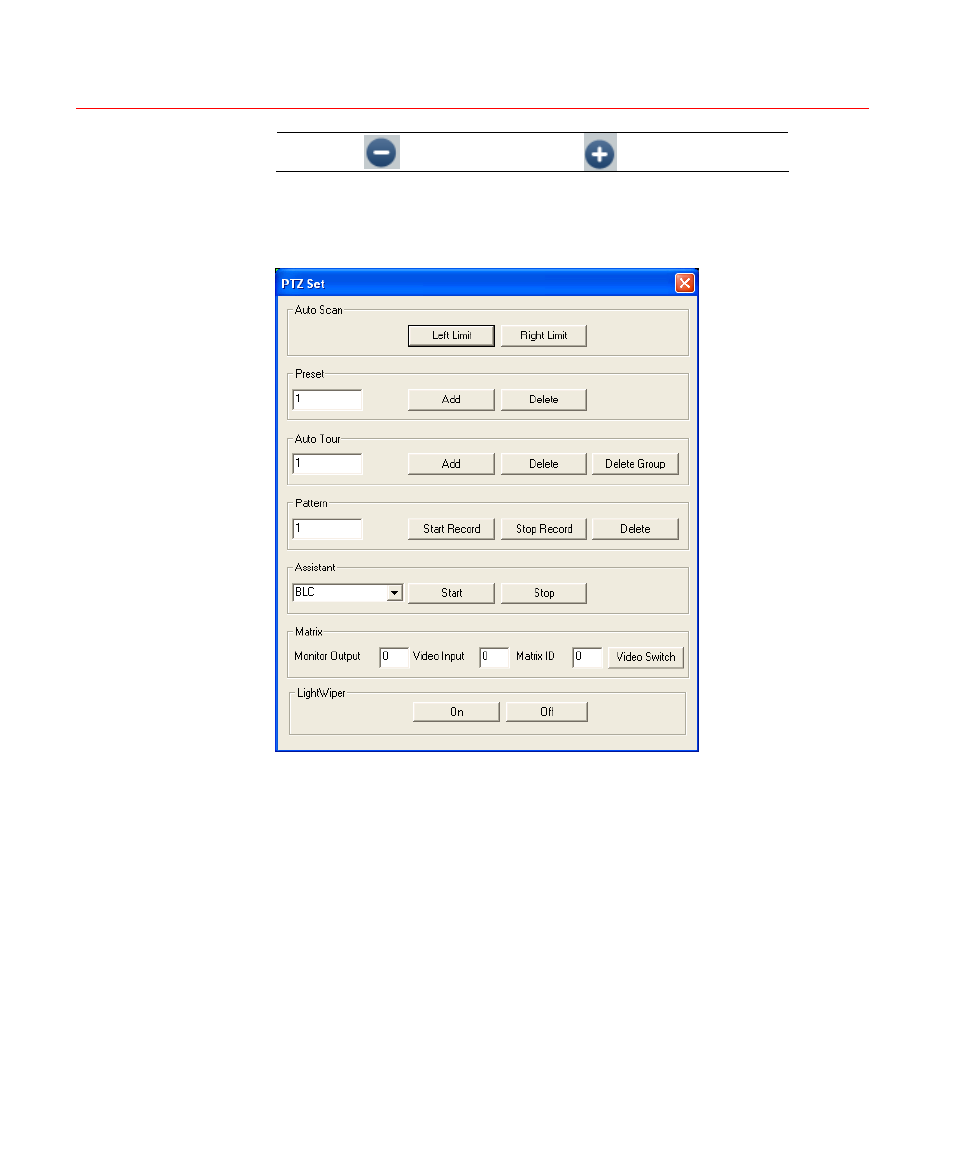

Figure 6-13 PTZ Setup Menu
Auto Scan
In Figure 6-13 , move the camera to your desired location and then rotate it
to left rotation limit and click Left Limit.
Then move the camera again and rotate it to the right rotation limit and then
click Right Limit to set a right limit.
Pattern
In Figure 6-13 , you can input pattern value and then click start record
button to begin PTZ movement. Please go back to Figure 6-12 to
implement camera operation. Then you can click stop record button. Now
you have set one pattern.
Preset
