598-1157-05

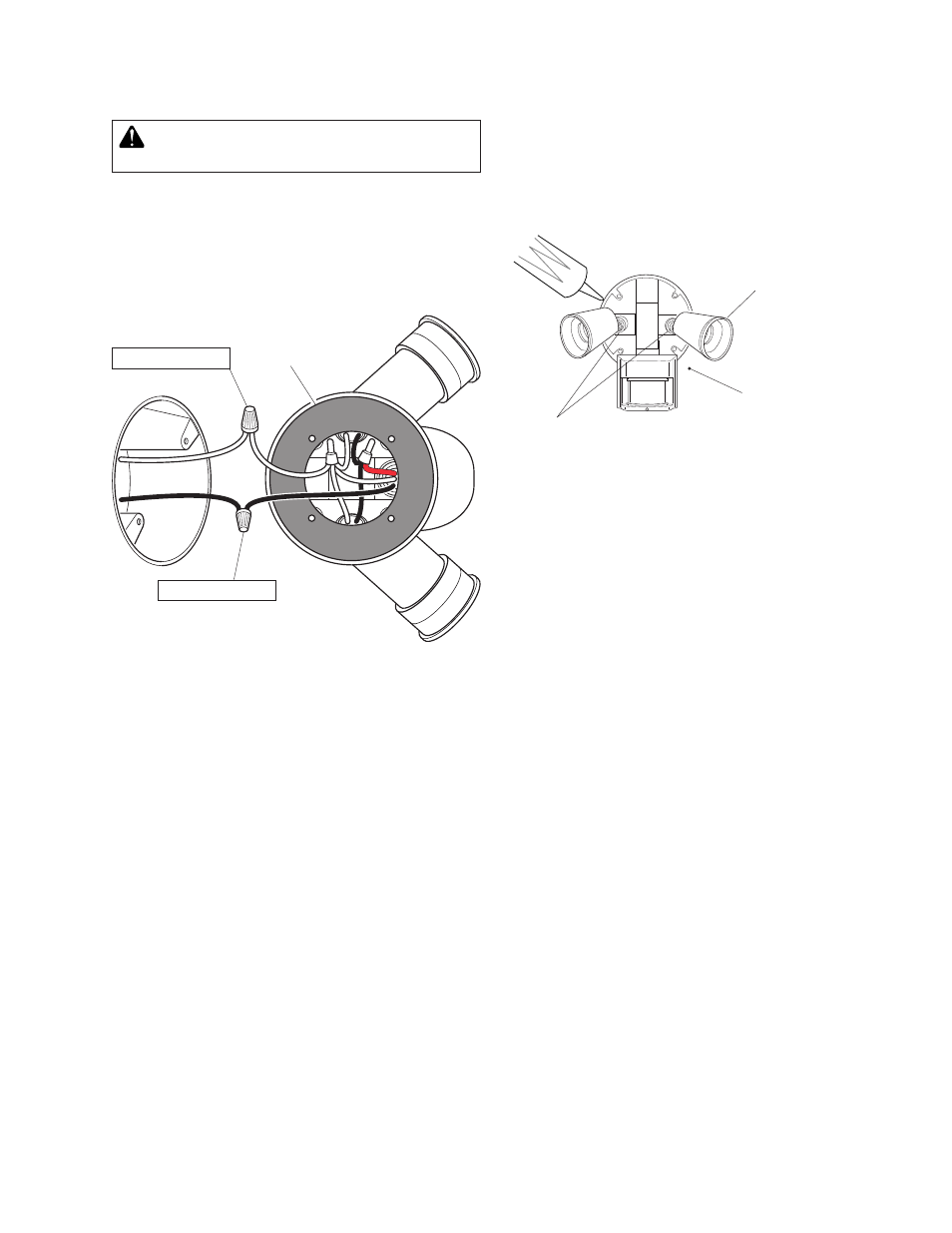

Wire the Light Control Mount the Light Control
❒ Align the light control cover plate and the junction
box holes. Secure with the mounting screws.
❒ If not installed on a weatherproof box or if an adaptor
plate (not included) was used, caulk the wall plate
and mounting surface with silicone.
❒ Adjust the lamp holders by loosening the lock nuts
but do not rotate the lamp holders more than 180°
from the factory setting. When screwing in the flood-
lamps, do not overtighten.
Keep lamps at
least 1" (25 mm)
from the sensor.
Avoid water damage and
electrical shock - keep lamp
holders below horizontal.
Lock nuts
Black to Black
White to White Gasket
❒ Remove the existing light fixture.
❒ Route the light control’s wires through the large
gasket hole.
❒ Connect the junction box wires to the light control
wires. Twist together and secure with a wire
connector.
WARNING: Turn power off at the fuse or circuit
breaker.
