Heath Zenith SL-5309 - Manual

Motion Sensor Quartz
Security Light
Model SL-5309
The Motion Sensor Quartz Security Light turns on 300
watts of quartz-halogen lighting when motion is de-
tected and then, after a selectable period of time,
automatically turns the lighting off. The built-in photocell
keeps the lighting off during daylight hours.

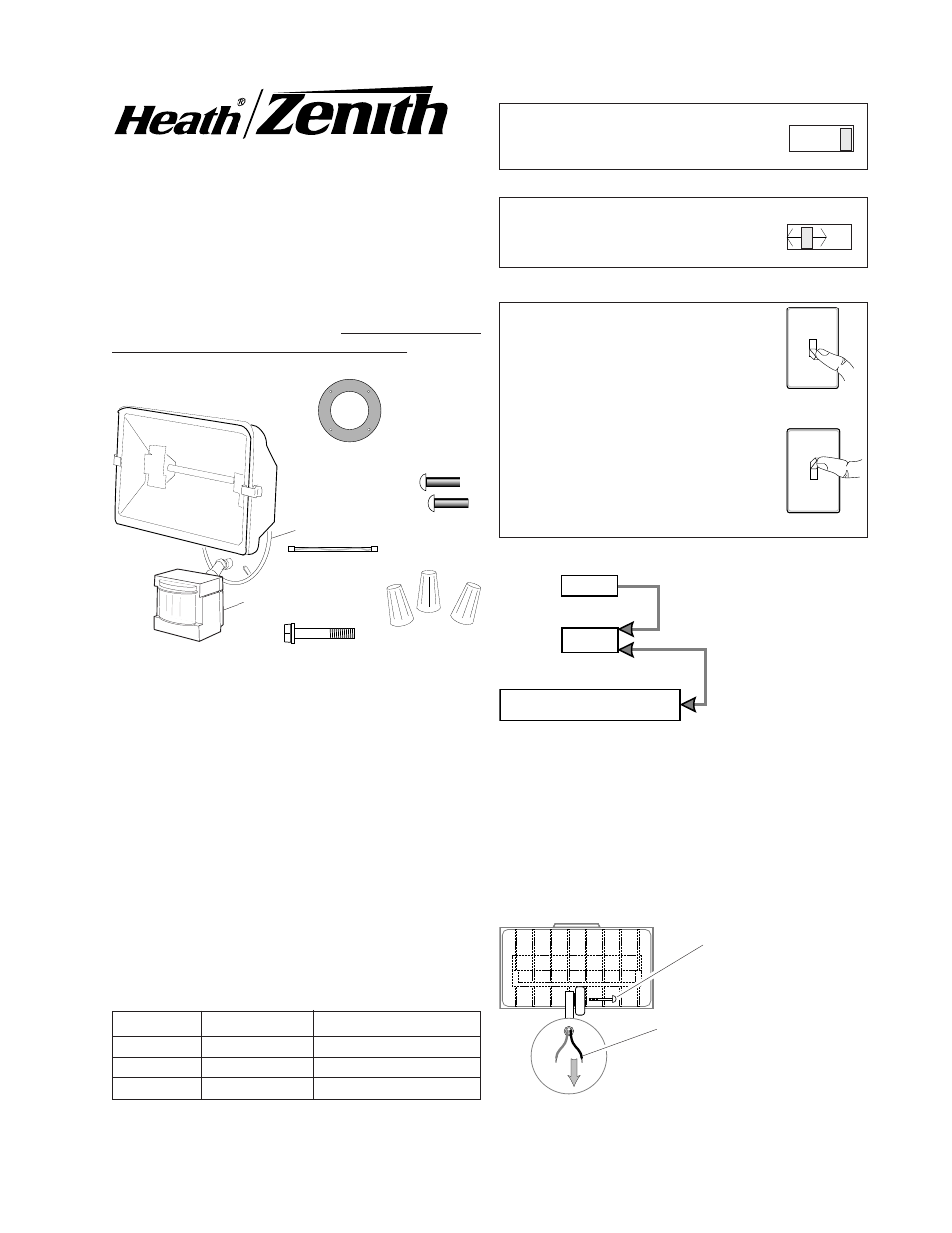

Cover
Plate
Sensor
3 Wire
Connectors
4 Screws
(2 sizes)
Light Control
Cover Plate
Gasket
© 2003 DESA Specialty Products™ 595-5496-06
Halogen
Bulb
OPERATION
Move ON-TIME Switch
to 1, 5 or 10 minutes
Mode Switching Summary
Flip switch off for
one second then
back on*
* resets to Auto Mode at dawn.
TEST
AUTO
MANUAL MODE
ON-TIME
ON-TIME
Requirements
• The Light Control requires 120-volts AC.
• If you want to use Manual Mode, the control must be
wired through a switch – not a dimmer or other
electronic switch.
• Some codes require installation by a qualified
electrician.
• This product is intended for use with the enclosed
gasket and with a junction box marked for use in wet
locations.
• The backplate has knockouts so the sensor can be
mounted on most junction boxes.
• In some applications a universal adaptor plate may be
needed. Adaptors are available at Home Centers and
Electrical Supply Stores.
* If you get confused while switching modes, turn the
power off for one minute, then back on. After the
calibration time (1
1 /
2
min.) the control will be in the
AUTO mode.
INSTALLATION
For easy installation, select an existing light with a wall
switch for replacement.
❒ Attach the lamp arm to
the backplate arm and
secure with the long bolt.
Note: When tightening the
arm screw, pull on the wires
to make sure the wires are
not pinched by the joint.
10 5 1 TEST
10 5 1 TEST
MANUAL MODE
AUTO
TEST
... back on.
1 Second OFF
then...
Manual mode only works at night be-
cause daylight returns the sensor to
AUTO.
Flip the light switch off for one second
then back on to toggle between AUTO
and MANUAL MODE.
Manual mode works only with the ON-
TIME switch in the 1, 5, or 10 position.
Long Bolt
This package includes:
Mode: On-Time: Works: Day Night
Test 5 Sec x x
Auto 1, 5, 10 min. x
Manual Until Dawn* x
Put the ON-TIME switch on the bottom
of the sensor in the TEST position.
Put the ON-TIME switch in the 1, 5 or
10 minute position.
