Havis-Shields Kwik-Kit KK-100-03 User Manual
Page 4
KK-XXX-03_INST_10-07
4
3. PASSENGER WINDOW VAN PREPARATIONS:
Note: Kwik Kits are recommended for Cargo Vans. The installer must determine modifications
to the interior of a window van.
1. Remove all rear bench seats from the vehicle.
2. Modify / remove interior parts as needed.
3. Remove floor mat/carpet and replace with ½” plywood or sound deadening material.
(Recommended).
4. If installing KK-F-VAK, (OEM air conditioning adapter) cut or remove all plastic trim around
the rear OEM system.
UNPACKING AND INSTALLATION:
***Refer to exploded view drawing on page 22 to identify parts ***

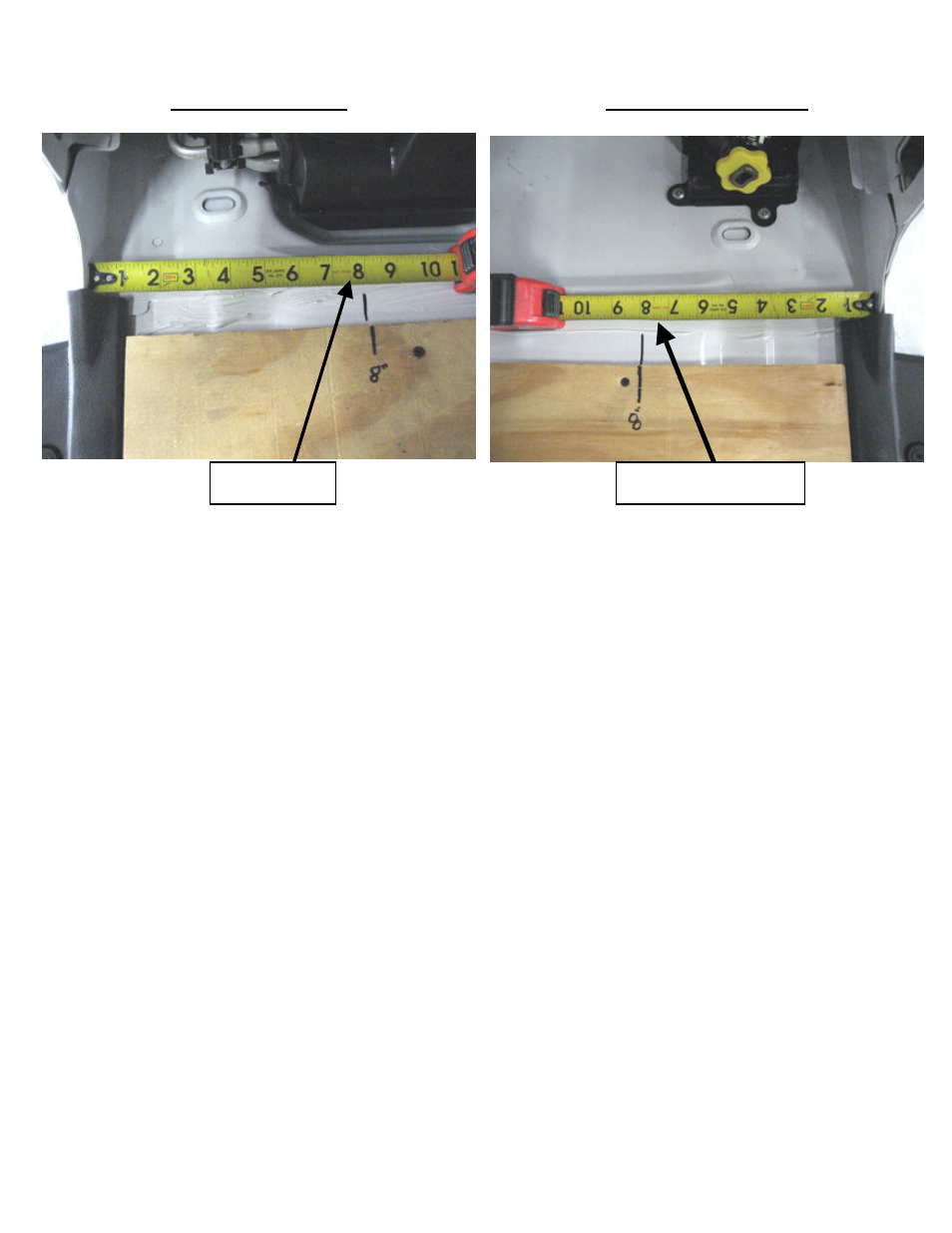

8”inches
8” inches
Ford Passenger-Side rear
Ford Driver-Side rear
***Kwik kits are designed for cargo vans with no rear OEM trim, however they can be installed
into passenger window vans. Some rear trim removal or modification is required. Do not remove
all rear trim and headliner as this will aid in sound deadening & insulation
