KK-XXX-03_INST_10-07 16
3/8” x 2” Hex head
bolt, washers, and nut

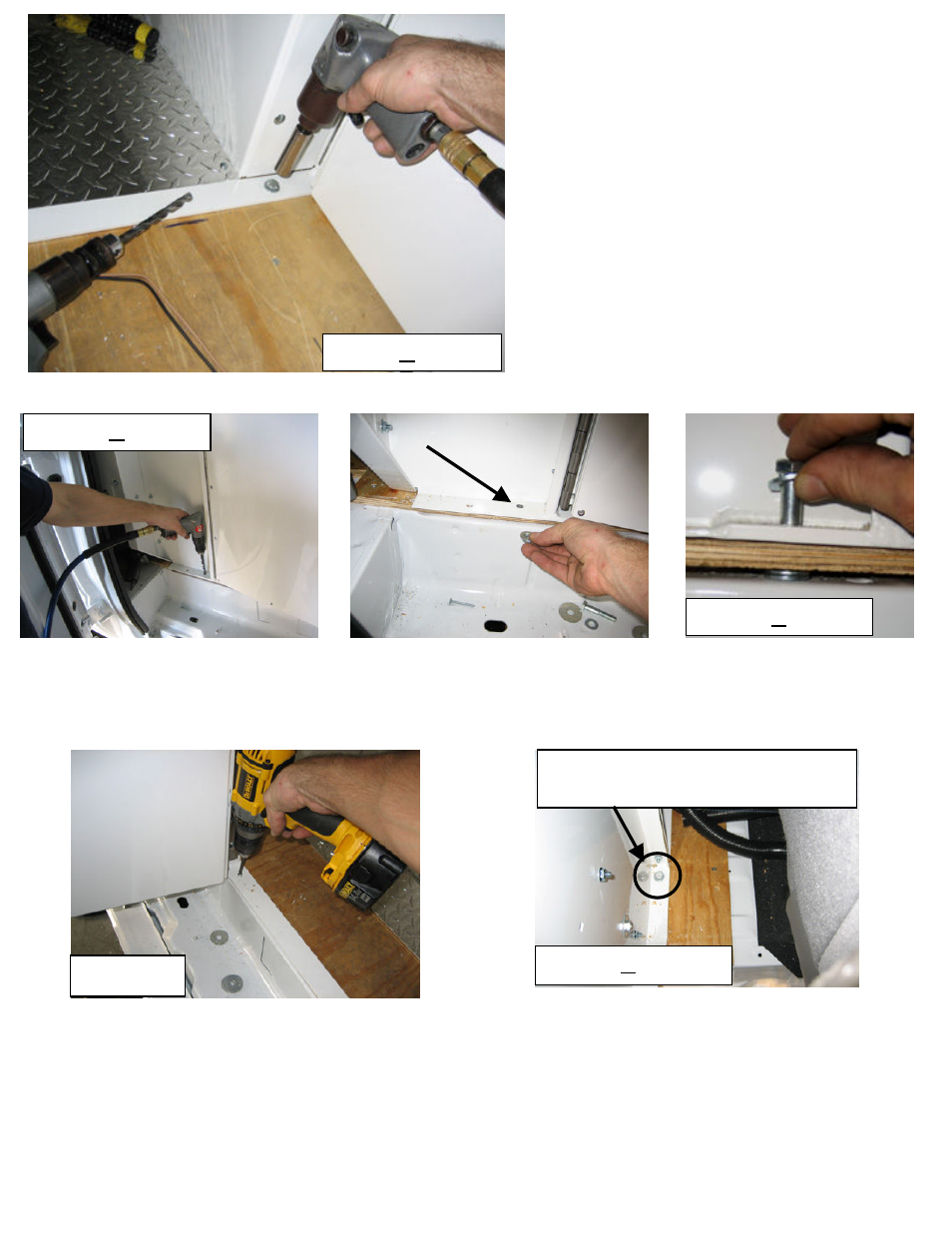

On the Rear doorframe, remove the
sheet metal screws installed earlier. Drill
3/8” holes through the doorframe, floor,
and vehicle. Attach using 3/8” x 2” hex
head bolts, washers, fender washers, lock
washers, and hex nuts.
Item #6 to van floor
On 3
rd
Compartment Doorframe repeat the same steps done on Rear Doorframe. Only one bolt
is used and must be located just to the left of the doors hinge as shown above.
Item #11 to van floor
Item #11 to van floor
Attach the doorframe to the vehicle
using #10 x 1” Phillips pan head sheet
metal screws
Item #11
Secure the Front Bulkhead. Drill (2- one
per-side) 3/8” holes through the frame, ½”
plywood, and floor of vehicle Attach using
3/8” x 2” hex head bolt, flat washer, fender
washer, and nut.
3/8” x 2” hex head bolt, flat washer,
fender washer, lock washer, and nut
Item #3 to van floor
