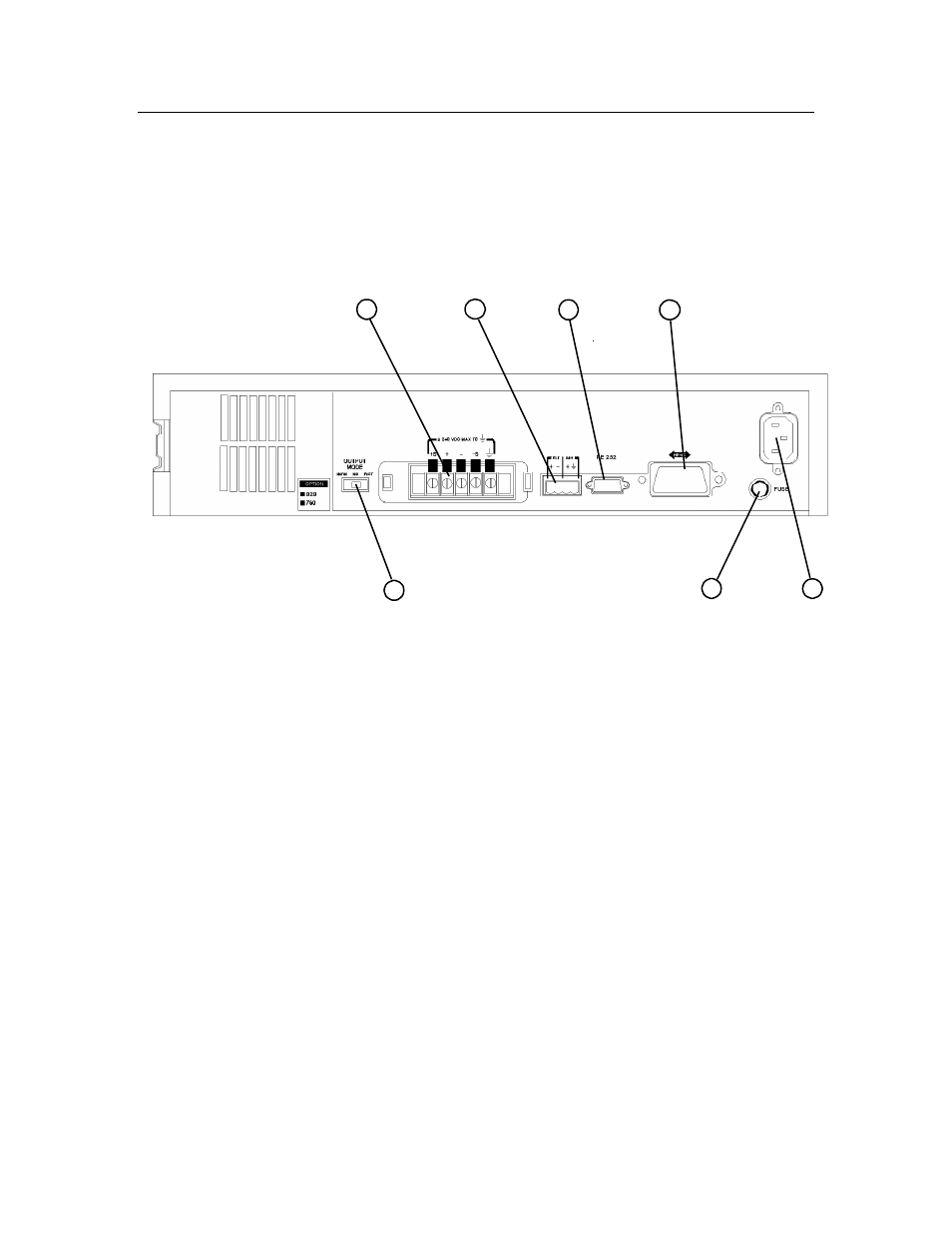

The Rear Panel - At a Glance
j
HP-IB (IEEE-488)
interface connector
k
RS-232 interface
connector
l
INH/FLT (remote
INHibit / internal
FauLT) connector.
Connector plug is
removable.
m
Output and Remote
sense terminal block.
3
2
1
5
6
7
4
n
Fast/Normal switch
o
Fuse holder
p
Power cord
connector (IEC 320)
Use the front panel Address menu to
♦
Select the HP-IB or RS-232 interface (see chapter 4 in User’s Guide)
♦
Select the HP-IB bus address (see chapter 4 in User’s Guide)
♦
Configure the RS-232 interface (see chapter 4 in User’s Guide)
