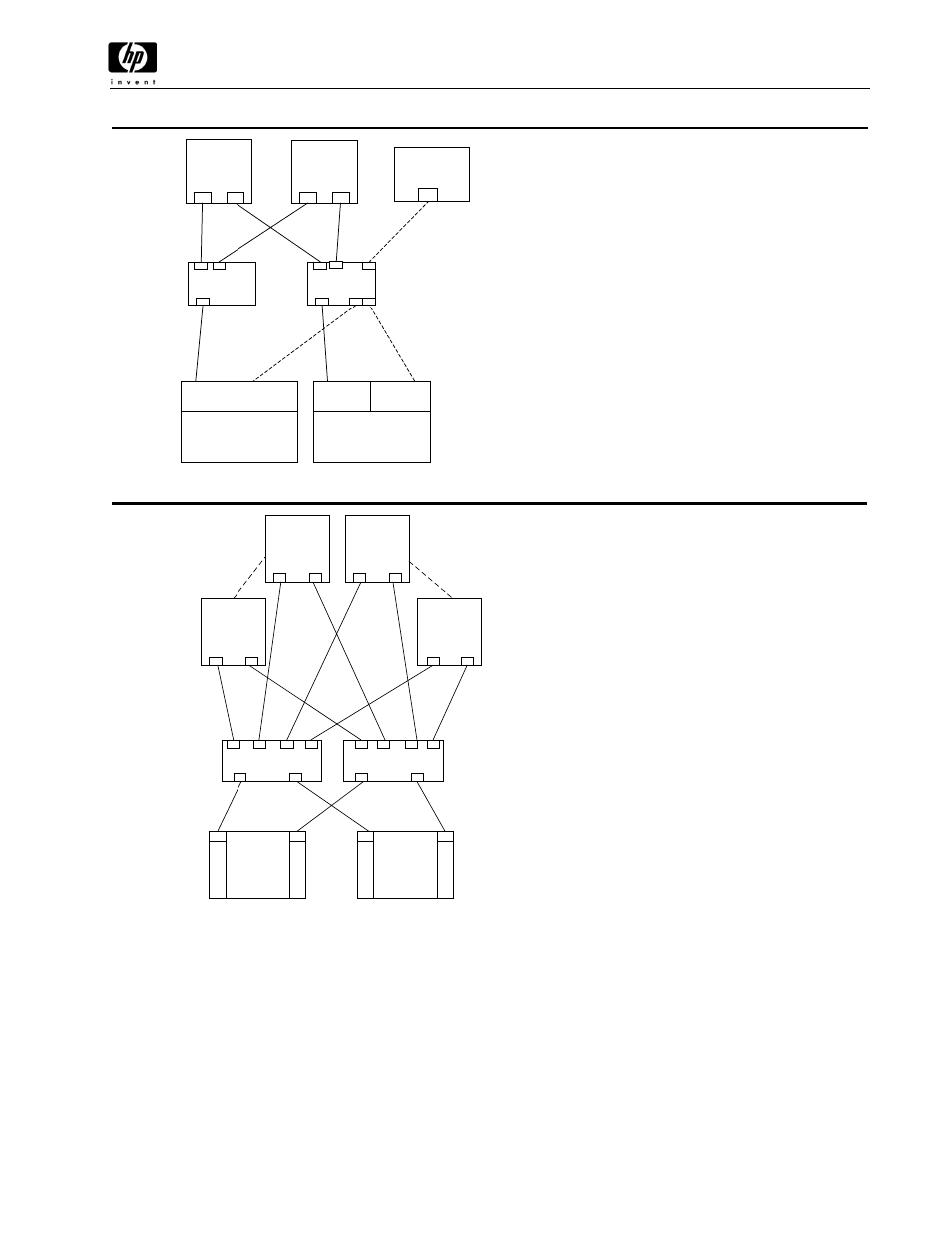

Figure 4.7.1.19 MPE/iX SAN Cluster
MPE
Switch
Switch
MPE
•
Dual HBA
•
Dual controllers
•
Dual switches
•
MPE Cluster/iX required (unsupported on VA7100)
•
Management Station required
•
If SCSI-FC is required then use A5814A option 003 for VA7410
Note:
•
If routers are used then use Single Initiator Zoning on the switches
VA71x0
Array
Controller 1 Controller 2
VA71x0
Array
Controller 1 Controller 2
Management
Station
Figure 4.7.1.20 Heterogeneous Cluster in a SAN
HP-UX
Server
Windows
Server
Windows
Server
HP-UX
Server
dedicated LAN
connection
dedicated LAN
connection
VA7100
1
2
VA7100
1
2
Switch
Switch
•
Requires fabric login
•
Requires LUN Security support
•
Single or Dual HBA
•
Dual controllers
•
Requires multi-path driver
•
SAN Manager software recommended
•
Windows MSCS and MC/ServiceGuard
Not Supported
