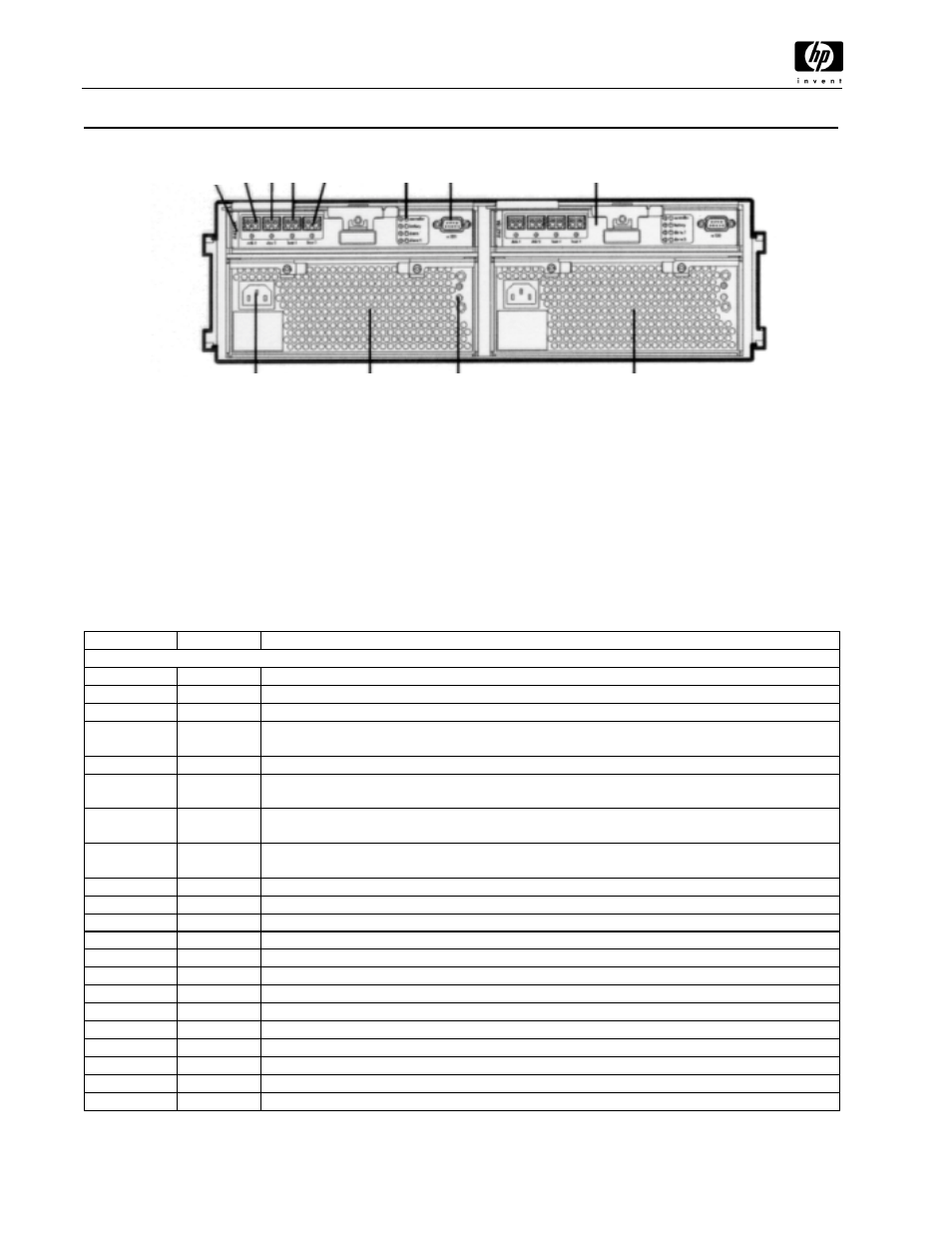

Figure 4.7.1.7 StorageWorks DS2405—Rear View
Array
Controller
Card 2
RS-232
Connector
Array
Controller
LEDs
Array
Controller
Card 1
Disk Ports
FC
Host Ports
FC
AC Power
Connection
Power
Module 1
Power
Module LEDs
Power
Module 2
1 2 1 2
Hardware Ordering Information
VA7100 Hardware Ordering Information
The following codes define the suffixes on product numbers: A = Field Racked, AE = diskless enclosure (field
disk integration), AZ = Factory Racked.
Order drives separately from the Enterprise Module section using the 0D1 option for integration. “AE”
products are shipped as diskless enclosure only no integration (disks are ordered separately and field
installed).
Product Number Option Number Description
VA7100 Field RK SKU
A6261A
Predefined SKU - VA7100 with Dual Controller, 2 GBICs, 256-MB Cache
A6262A Predefined SKU - VA7100 with Dual Controller, 2 GBICs, 512-MB Cache (1×512MB DIMM)
A6263A Predefined SKU - VA7100 with Dual Controller, 2 GBICs, 1024-MB Cache (2×512MB DIMM)
A6183A Field upgrade product. Select Virtual Array Controller (one or two) and cache and disk options separately (factory
installed). Includes filler for controllers and disks.
A6188A 0D1 Virtual Array Controller no memory installed
A6185A 0D1 256-MB Cache for Virtual Array Controller, 1×256MB DIMM, StorageWorks VAP requires equal cache for both
Controllers (if 2nd installed). Order 1 per installed VAP
A6186A 0D1 512-MB Cache for Virtual Array Controller, 1×512MB DIMM, StorageWorks VAP requires equal cache for both
Controllers (if 2nd installed). Order 1 per installed VAP
A6187A 0D1 2×512MB Cache for Virtual Array Controller, 2×512MB DIMM, StorageWorks VAP requires equal cache for both
Controllers (if 2nd installed). Order 1 per installed VAP
A6192A 0D1 36-GB 10K RPM FC HDD Module
A6193A 0D1 36-GB 15K RPM FC HDD Module
A6194A 0D1 73-GB 10K RPM FC HDD Module
A7288A 0D1 73-GB 15K RPM FC HDD Module
A6203A 0D1 Optical Gigabit Interface Circuit (GBIC)
A3583A 0D1 2-meter FC fiber optic cable M/M multimode SC-SC
A3531A 0D1 16-meter FC fiber optic cable M/M multimode SC-SC
A3735A 0D1 50-meter FC fiber optic cable M/M multimode SC-SC
A3736A 0D1 100-meter FC fiber optic cable M/M multimode SC-SC
C7529A 0D1 2-meter FC fiber optic cable M/M duplex LC-SC
C7530A 0D1 16-meter FC fiber optic cable M/M duplex LC-SC
C7534A 0D1 FC fiber optic coupler F/F SC-SC
C7540A 0D1 FC adapter kit (includes C7529A and C7534A)
