Chapter 4
Peripherals and Accessories
4-124 HP e3000 Business Servers Configuration Guide – Effective 1/04
Information Subject to Change
SAN Configurations

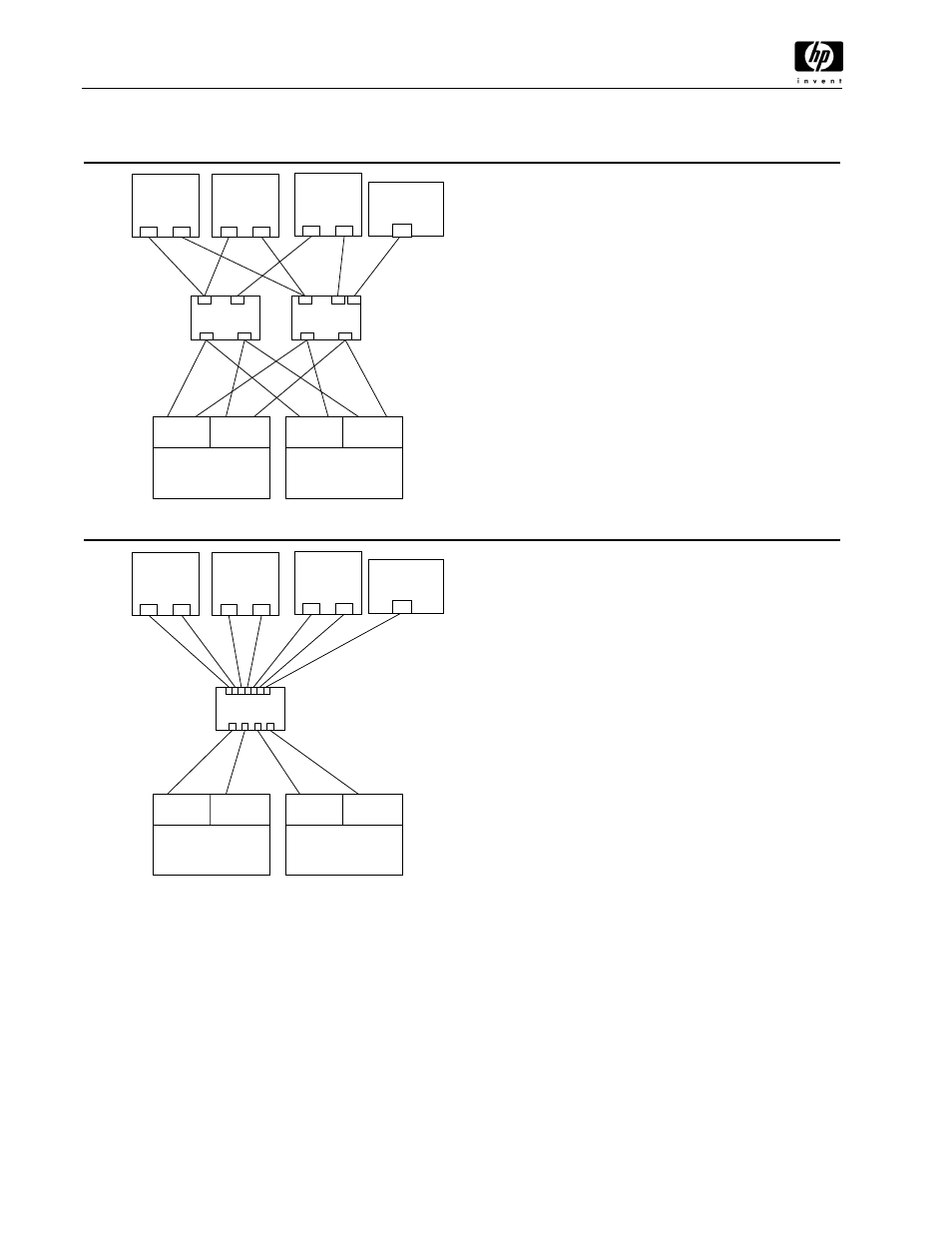

Figure 4.7.1.17 Midrange Multi-host (Non-clustered) SAN with Optional Path Redundancy
MPE
VA71x0
Array
Controller 1 Controller 2
Switch Switch
MPE
• Dual HBA
• Dual controllers
• Dual switches
• MPE Failover/iX required (unsupported for VA7100)
• Redundancy in storage paths
• Management Station required
• If SCSI-FC is required then use A5814A option 003 for VA7410
Note:
• If routers are used then use Single Initiator Zoning on the switches
VA71x0
Array
Controller 1 Controller 2
MPE Management
Station
Figure 4.7.1.18 A Typical SAN Configuration
MPE
VA71x0
Array
Controller 1 Controller 2
Switch
MPE
• Dual HBA
• Dual controllers
• Management Station required
• LUN Security is recommended if unfamiliar with managing the
management station (disk signatures)
• If SCSI-FC is required then use A5814A option 003 for VA7410
Note:
• If routers are used then use Single Initiator Zoning on the switches
VA71x0
Array
Controller 1 Controller 2
MPE Management
Station
