Chapter 4
Peripherals and Accessories
4-122 HP e3000 Business Servers Configuration Guide – Effective 1/04
Information Subject to Change

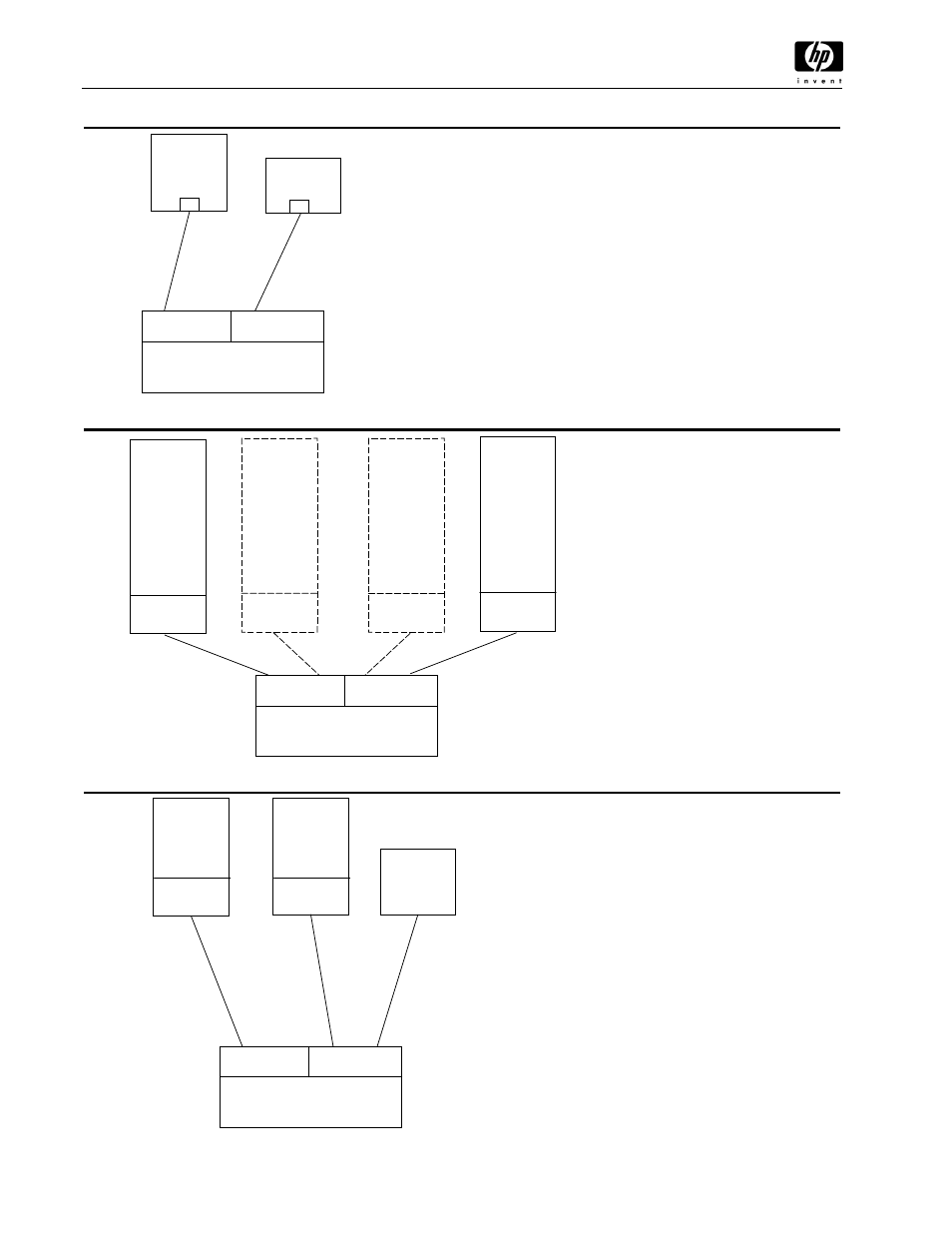

Figure 4.7.1.11 Lowest Entry Point (Minimum Configuration)
MPE
• No Multi-Path driver required
• No hub or switch required
• Windows/HP-UX/Linux and MPE supported
• MPE requires Management Station
• If SCSI-FC is required then use A5814A option 003 for VA7100 or VA7X10
Notes:
• Care must be taken to when attaching a management station running NT or
Windows 2000. Deny any requests for MS disk signatures.
• LUN Security can eliminate the risk of MS disk signatures.
VA71x0
Array
Controller 1 Controller 2
Management
Station
Figure 4.7.1.12 Lowest Entry Point, Non-HA—Minimum Configuration (VA7410 only)
•
Single HBA per host
•
Dual controllers
•
Supports Windows 2000,
HP-UX/Linux, and MPE
•
Requires LUN Security in a
heterogeneous environment
•
CommandView SDM required
on one of the hosts
•
If SCSI-FC is required then use
A5814A option 003 for VA7410
Array
Controller 1 Controller 2
MPE
HBA
MPE
HBA
MPE
HBA
Management
Station
HBA
Up to 4 host optional
Figure 4.7.1.13 Entry-level Cluster with Path Redundancy—High Availability (VA7410 only)
Notes:
•
The VA7410 supports both 1 and 2 Gbps HBAs in the
same host but the corresponding controller must be
set to the same speed as the HBA (if the HBA does
not support auto-negotiate). For example, if the HBA
is set to 2 Gbps, the connected controller must also
be set to 2Gbps.
•
This configuration supports MPE’s Cluster/iX
•
LUN Security recommended but not required
•
Single HBA
•
Two controllers set up with both personalities
•
CommandView SDM required on the management
station
MPE MPE
HBA HBA
VA71x0
Array
Controller 1 Controller 2
Management
Station
