Control-panel overview
The control panel provides controls for printer functions and shows messages about the printer, print
jobs, and supplies status.
?
10
11
12
9
8
7
6
5
4
3
2
1

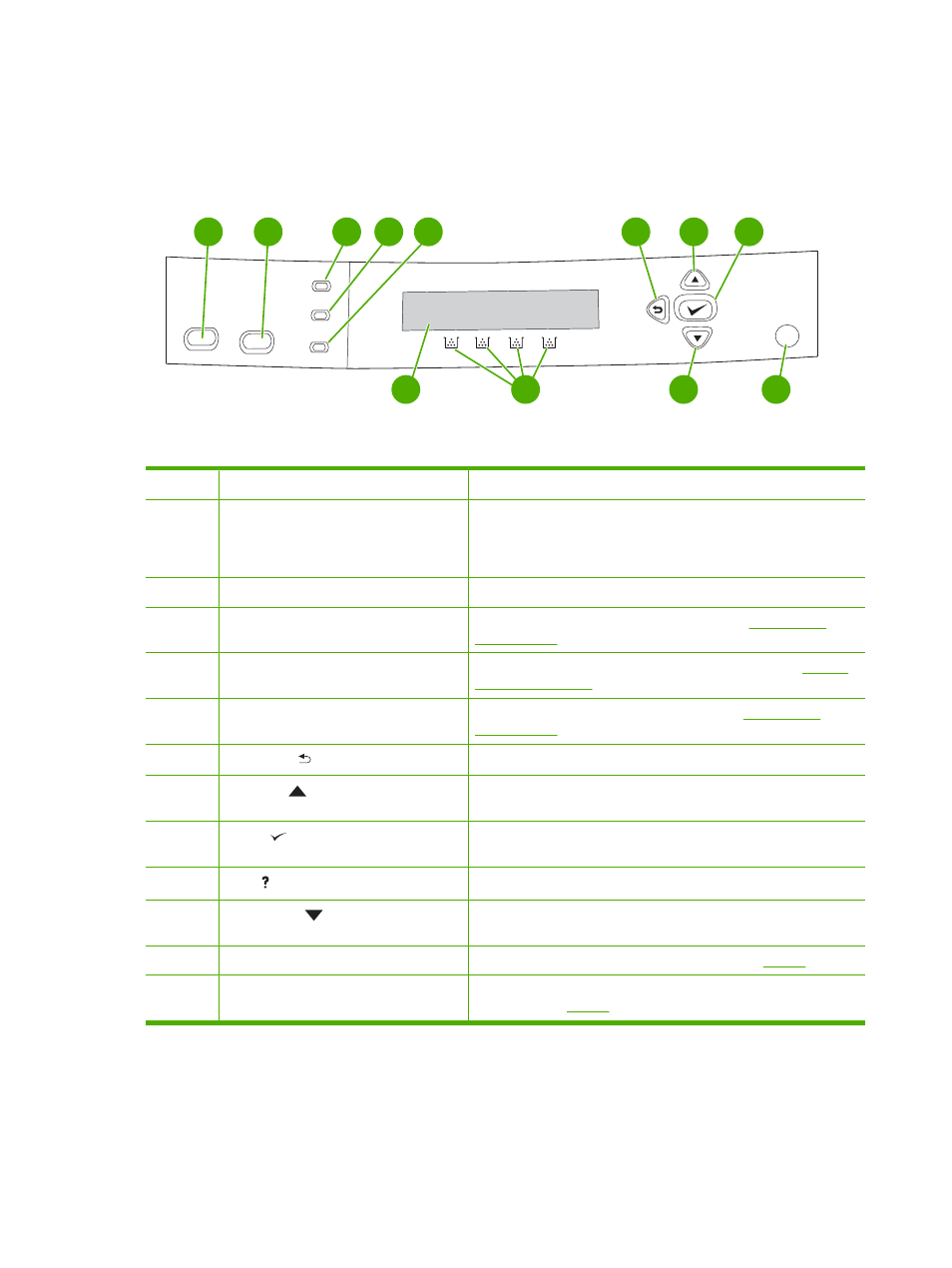

Figure 2-1
Control panel buttons and lights
Number
Button or light
Function
1
Stop
button
Halts the current job, presents a choice to resume or cancel the
current print job, clears media from the printer, and clears any
continuable errors that are associated with the halted job. If the printer
is not printing a job, pressing
Stop
pauses the printer.
2
Menu
button
Opens and closes menus.
3
Ready light
Indicates that the printer is online or offline. See
.
4
Data light
Indicates whether or not the printer is receiving data. See
.
5
Attention light
Indicates that a critical error has occurred. See
.
6
Back arrow (
) button
Navigates backward in nested menus.
7
Up arrow (
) button
Navigates menus and text, and increases the values of numerical
items in the display.
8
Select
(
) button
Makes selections, resumes printing after continuable errors, and
overrides a non-HP print cartridge.
9
Help
( ) button
Provides detailed information about printer messages or menus.
10
Down arrow (
) button
Navigates menus and text, and decreases the values of numerical
items in the display.
11
Supplies gauge
Shows the print cartridge-consumption levels. See
.
12
Display
Shows status information, menus, help information, and error
messages. See
The printer communicates through the display and the lights on the lower part of the control panel. The
display shows status information, as well as menus, help information, and error messages. The Ready,
Data, and Attention lights provide at-a-glance information about the printer state.
