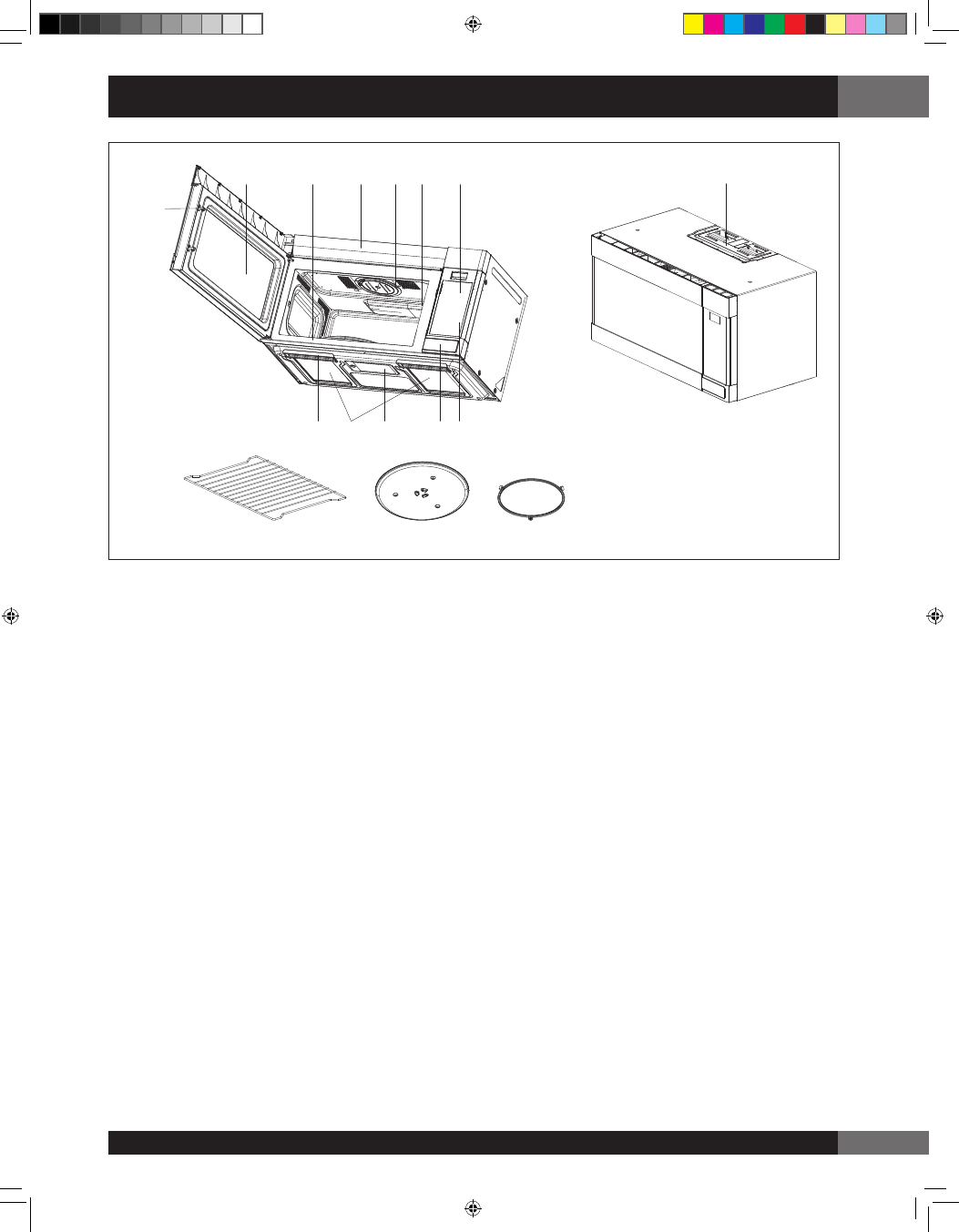

4 - FEATURES DIAGRAM
1
2 3 4 5 6 7 15
12 11 10 9 8
13 14 16
1. DOOR LATCHES
2. WINDOW with METAL SHIELD
Screen allows cooking to be viewed while keeping
microwaves confined in oven.
3. MODEL NUMBER PLATE
Located on the front wall of the microwave oven.
4. CHARCOAL FILTER
Behind Vent Grille
5. OVEN LIGHT
6. WAVEGUIDE COVER
Protects the microwave outlet from splashes of cooking
foods.
7. TOUCH CONTROL PANEL and DIGITAL DISPLAY
For detailed information on each feature, see Features
Diagram section, pages 10, 11.
8. HOOD CONTROLS
Vent Fan - Press Turbo, High, Low or Off.
Light - Press On or Off.
9. DOOR BUTTON
To open the door push the door open button.
10. COOKTOP LIGHT
11. GREASE FILTERS
12. HANDLE FILTERS
Use to insert Grease Filters.
13. METAL RACK
Use for extra space when cooking with more than one
container at the same time.
14. TURNTABLE / GLASS TRAY
Composed of glass tray and roller guide. The roller
guide is placed first in the bottom of the microwave
and supports the glass tray. Both parts must be in place
when using the microwave oven.
15. VENTILATION MOTOR
Your microwave oven is designed for adaptation to the
following three types of ventilation.
(Recirculation ventilation system, Vertical ventilation
system, Horizontal ventilation system)
See installation manual to select the type of ventilation
required for your installation.
16. GUIDE ROLLER RING
