CSVEQ 100 D • Operation
Operation, cont’d
3-8
Use a small, flat-blade screwdriver to rotate this control. View
the display and select the setting that gives the sharpest picture.
For a more precise setting, you can use an oscilloscope or a
waveform monitor connected to the far end of the output
cable, and adjust the equalization so that the color burst ranges
between -20 IRE and +20 IRE.
N The EQ control is a potentiometer with a mechanical stop
at the high and the low end. After you have reached the
high or low end of the adjustment, no change is apparent
on the display. The default is set to 0 dB (the dot position)
.

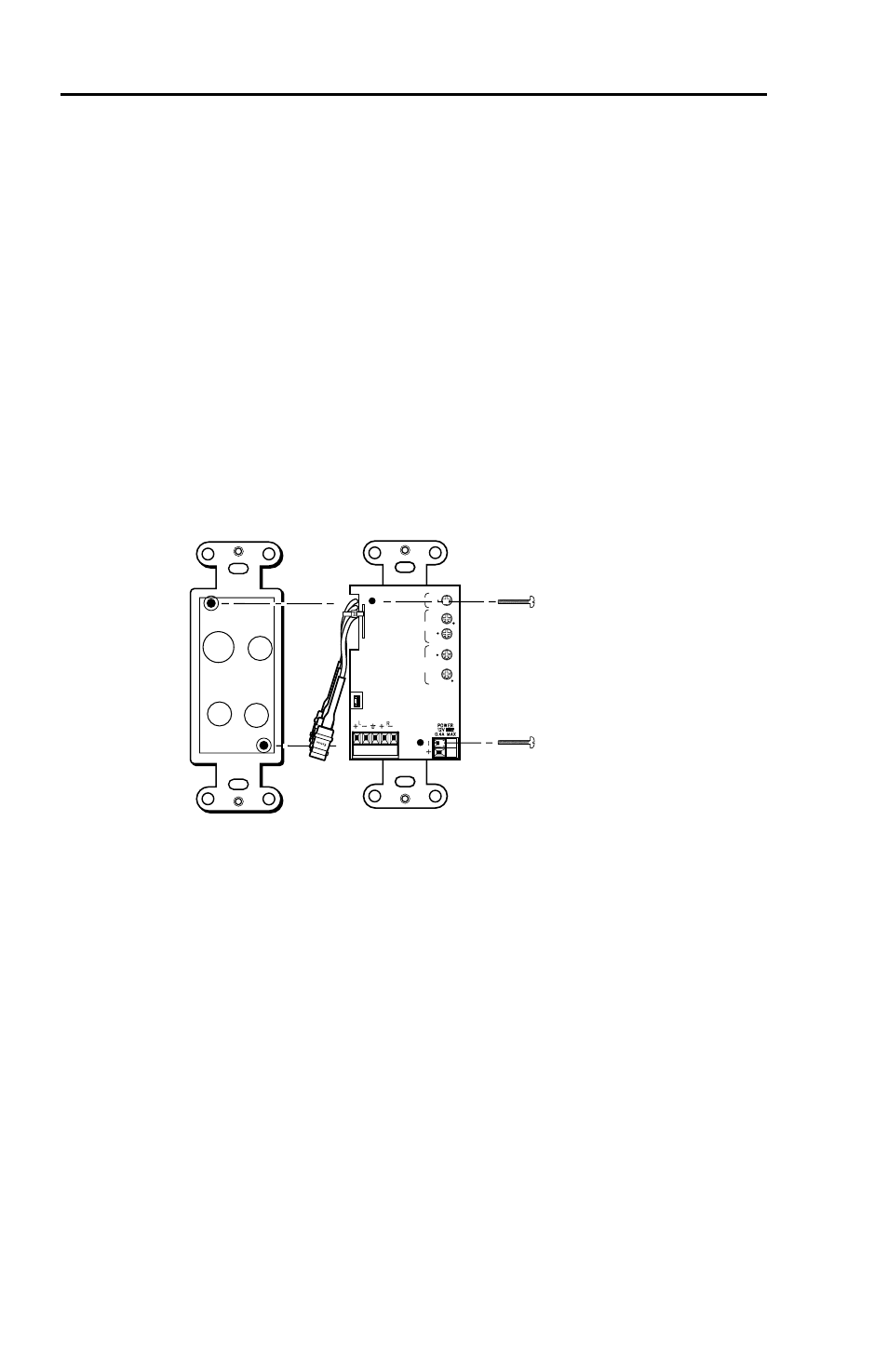

Replacing the Decora Faceplate
The front faceplate is replaced by removing the two rear panel
mounting screws, replacing the faceplate, then reattaching the
two screws, as shown in the CSVEQ 100 D example below.
Faceplate (rear)
VIDEO
AUDIO OUTPUT
JUMPER POSITION
OFF = DUAL MONO
ON = STEREO
AUDIO
OUTPUT
CONFIG
CSVEQ 100 D
VIDEO
OUTPUT
Y
C
GAIN
GAIN
GAIN
EQ
EQ
Mounting
Screws
Removing the CSVEQ 100 D faceplate
