CSVEQ 100 D • Operation
Operation
3-2

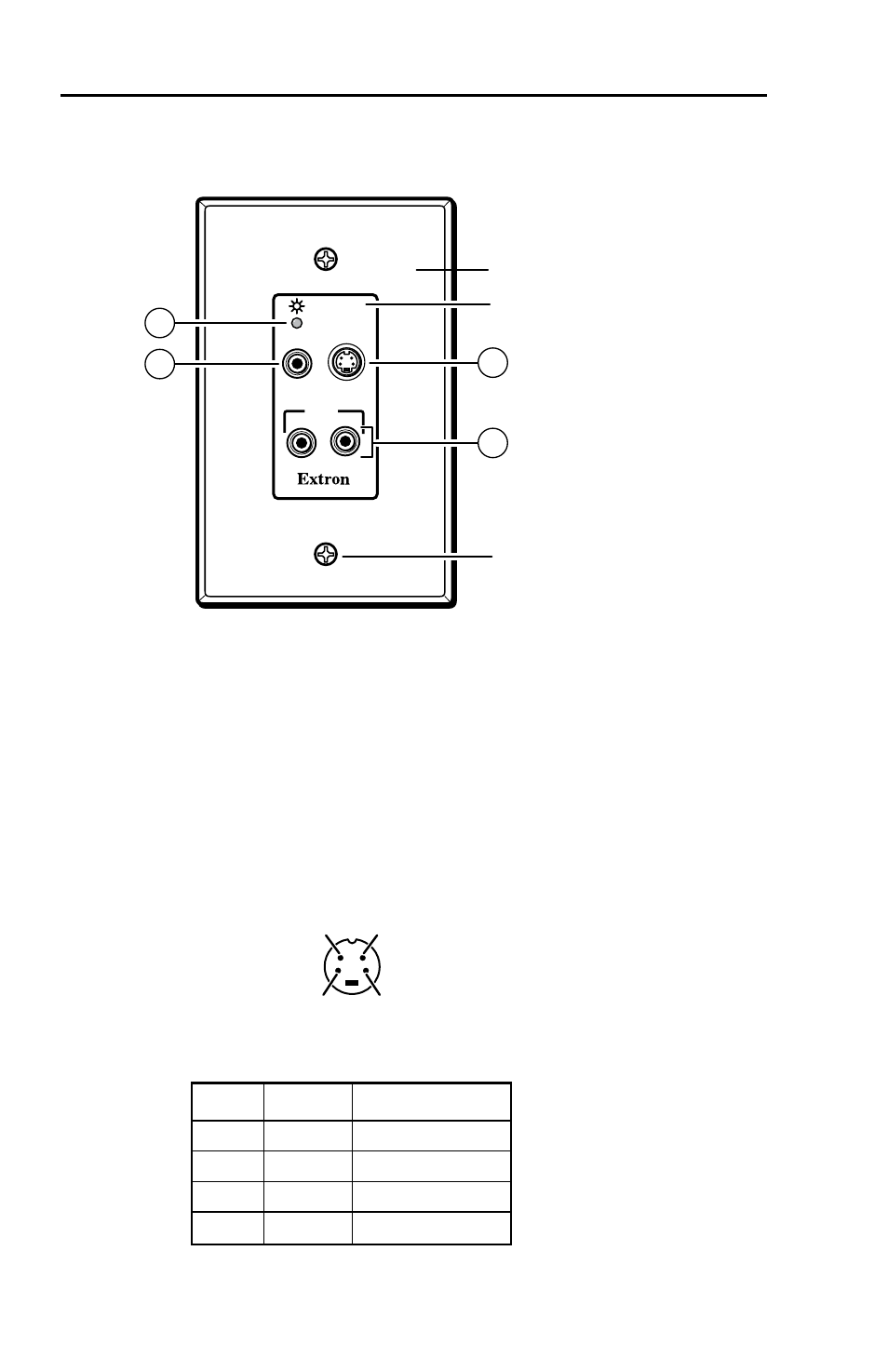

Front Panel Features and Operation
VIDEO IN
S-VIDEO
IN
L R
AUDIO IN
1
2
CSVEQ 100 D
Front Panel
3
4
Faceplate
Wall Plate
Wall Plate
Mounting Screw
a
Power indicator LED — This LED lights:
• Amber when the line driver is receiving full power
• Green when the line driver is receiving a video signal
b
Video input connector — Connect a composite video input
source to this RCA connector.
c
S-video input connector — Connect an S-video input source to
this 4-pin mini DIN connector. See the following pinout table.
3 4
1 2
PIN NAME DESCRIPTION
1 GND Ground (Y)
2 GND Ground (C)
3 Y Luminance
4 C Chrominance
S-video Pinout Table
