CSVEQ 100 D • Installation

2-5

4

.

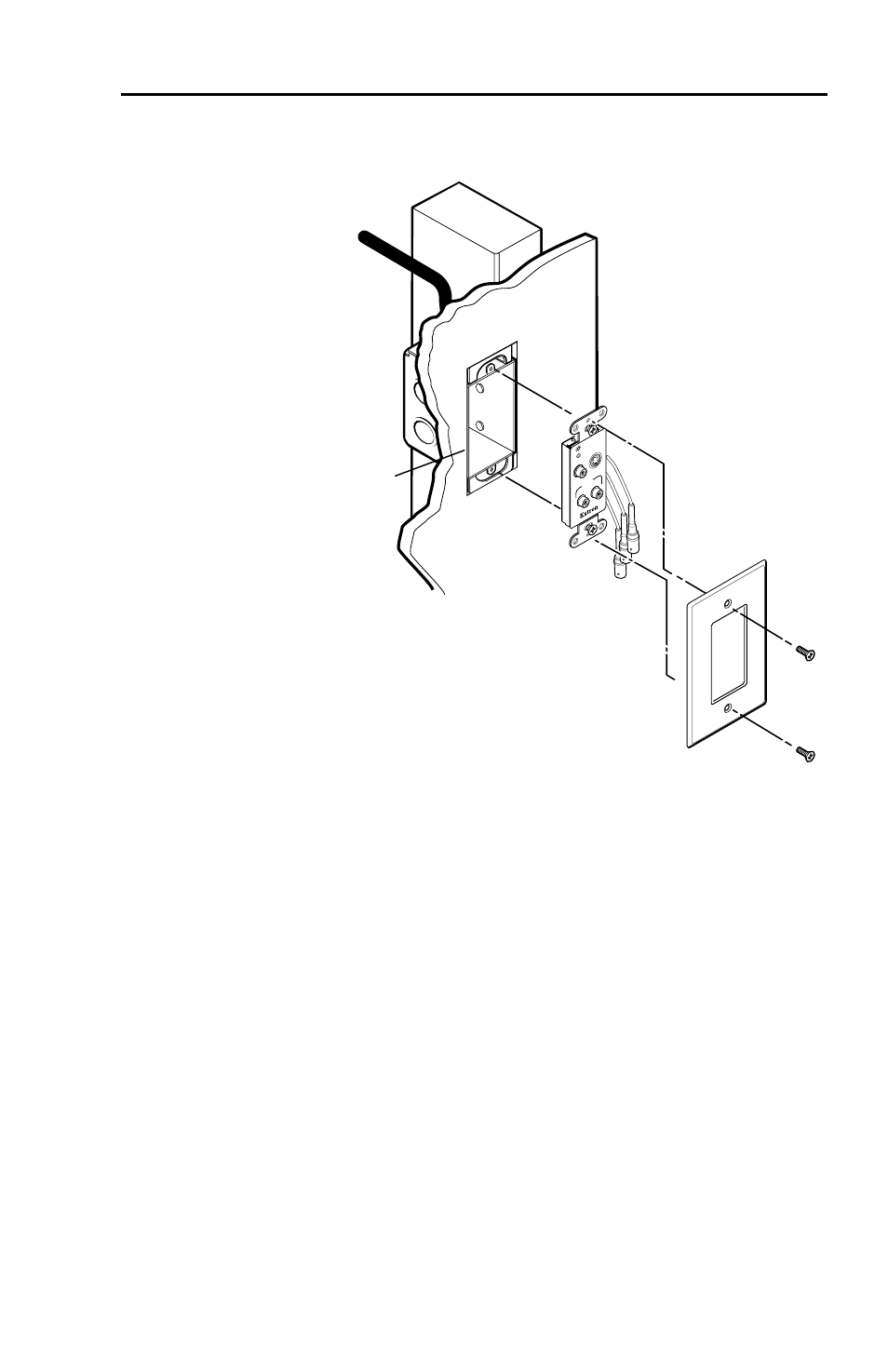

Mount the line driver to the wall box with machine screws

as shown in the following illustration.

Wall opening

is flush with

edge of box.

Wall Box

Decora

Faceplate

Extron
CSVEQ 100 D

VIDEO IN

S-VIDEO

IN

L

R

AUDIO IN

Mounting the line driver to a wall box

5

.

Attach the Decora

®

wall plate to the line driver as shown in

the illustration above.

6

.

Reconnect the power supply, connect input cables to the

line driver, and restore power to the equipment.

Installing the mud ring bracket

The CSVEQ 100 D can also be installed using the included mud

ring bracket. See the illustration below.
1

.

Once the proper wall location for mounting the line driver

has been determined, cut an opening in the wall using the

proper mounting template found in the appendix.

2

.

Carefully cut away the mounting surface material inside

the traced template lines

3

.

Test the fit of the mud ring. The doglegs should fit easily

into the hole and the flat portion should rest flush against

the wall. See the note in the following illustration.

4

.

Rotate all doglegs inward.
