CSVEQ 100 D • Operation
Operation, cont’d
3-6
f
Output equalization (EQ) potentiometer (luma) — Use a
small screwdriver to rotate this control to adjust equalization
when the line driver is connected to long output cables. The
adjustment range is 0 dB to +7 dB. The default is set to 0 dB (the
dot position). See "Equalization (EQ) adjustment control" in this
chapter.
g
Output gain potentiometer (luma) — Use a small screwdriver
to rotate this potentiometer to adjust the luminance gain
when the line driver is connected to long output cables. The
adjustment range is -1 dB to +3 dB. The default is unity (the dot
position). See "Gain adjustment control" in this chapter.
h
Output gain potentiometer (video) — Use a small screwdriver
to rotate this control to adjust the gain when the line driver is
connected to long output cables. The adjustment range is -1
dB to +3 dB. The default is unity (the dot position). See "Gain
adjustment control" in this chapter.
i
Output equalization (EQ) potentiometer (video) — Use a
small screwdriver to rotate this control to adjust equalization
when the line driver is connected to long output cables. The
adjustment range is 0 dB to +7 dB. The default is set to 0 dB (the
dot position). See "Equalization (EQ) adjustment control" in this
chapter.

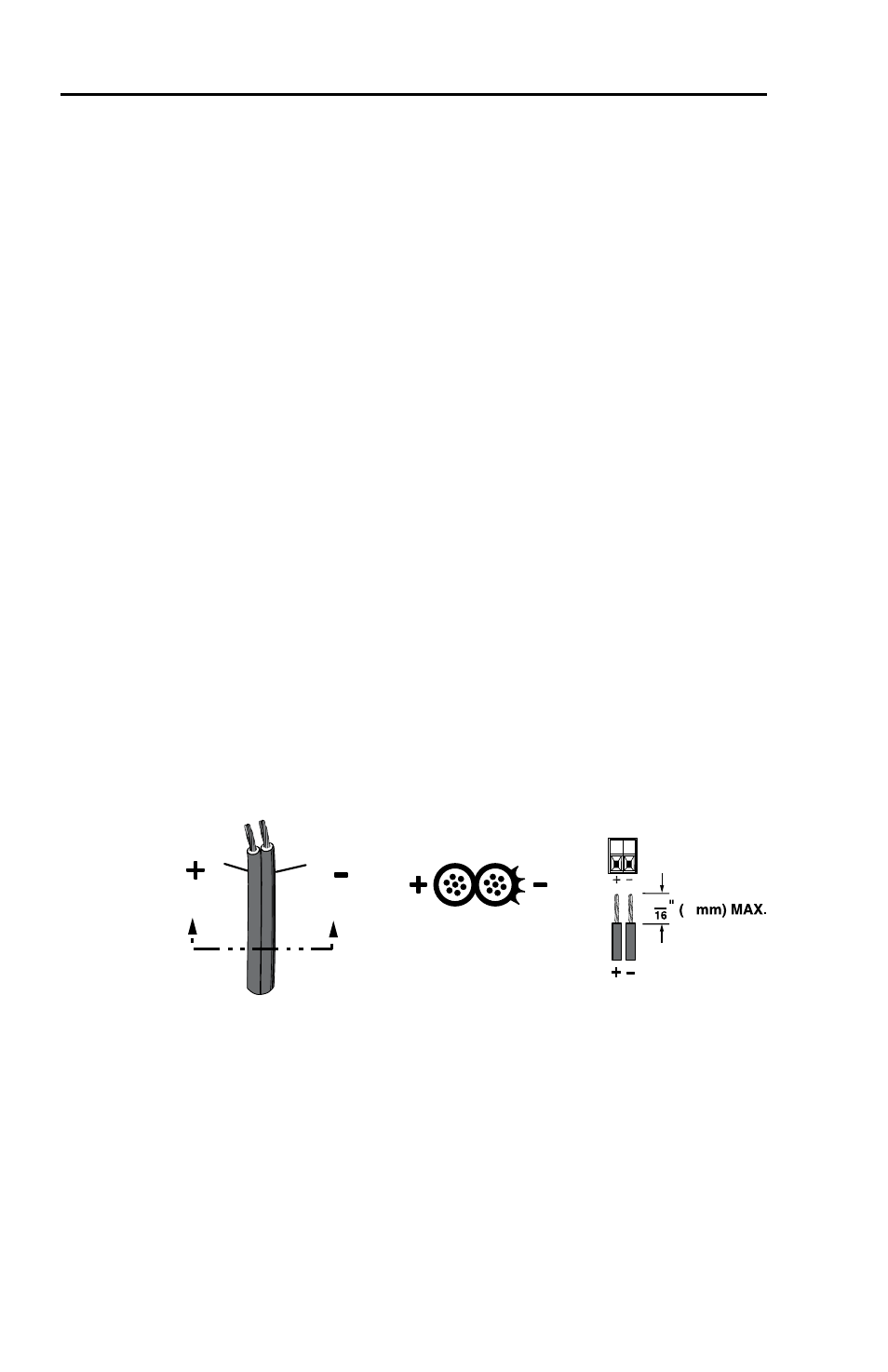

Power supply wiring
Wire the line driver's power connector as shown below.
Power Supply
Output Cord
SECTION A–A
Ridges
Smooth
A A
Captive Screw
Connector
3
5
Power connector wiring
C Power supply voltage polarity is critical. Incorrect
voltage polarity can damage the power supply and the
line driver. Identify the power cord negative lead by
the ridges on the side of the cord.
To verify the polarity before connection, plug in the power
supply with no load and check the output with a voltmeter.
