CSVEQ 100 D • Operation
Operation, cont’d
3-4
Rear Panel Features and Operation
VIDEO
AUDIO OUTPUT
JUMPER POSITION
OFF = DUAL MONO
ON = STEREO
AUDIO
OUTPUT
CONFIG
CSVEQ 100 D
VIDEO
OUTPUT
Y
C
GAIN
GAIN
GAIN
EQ
EQ

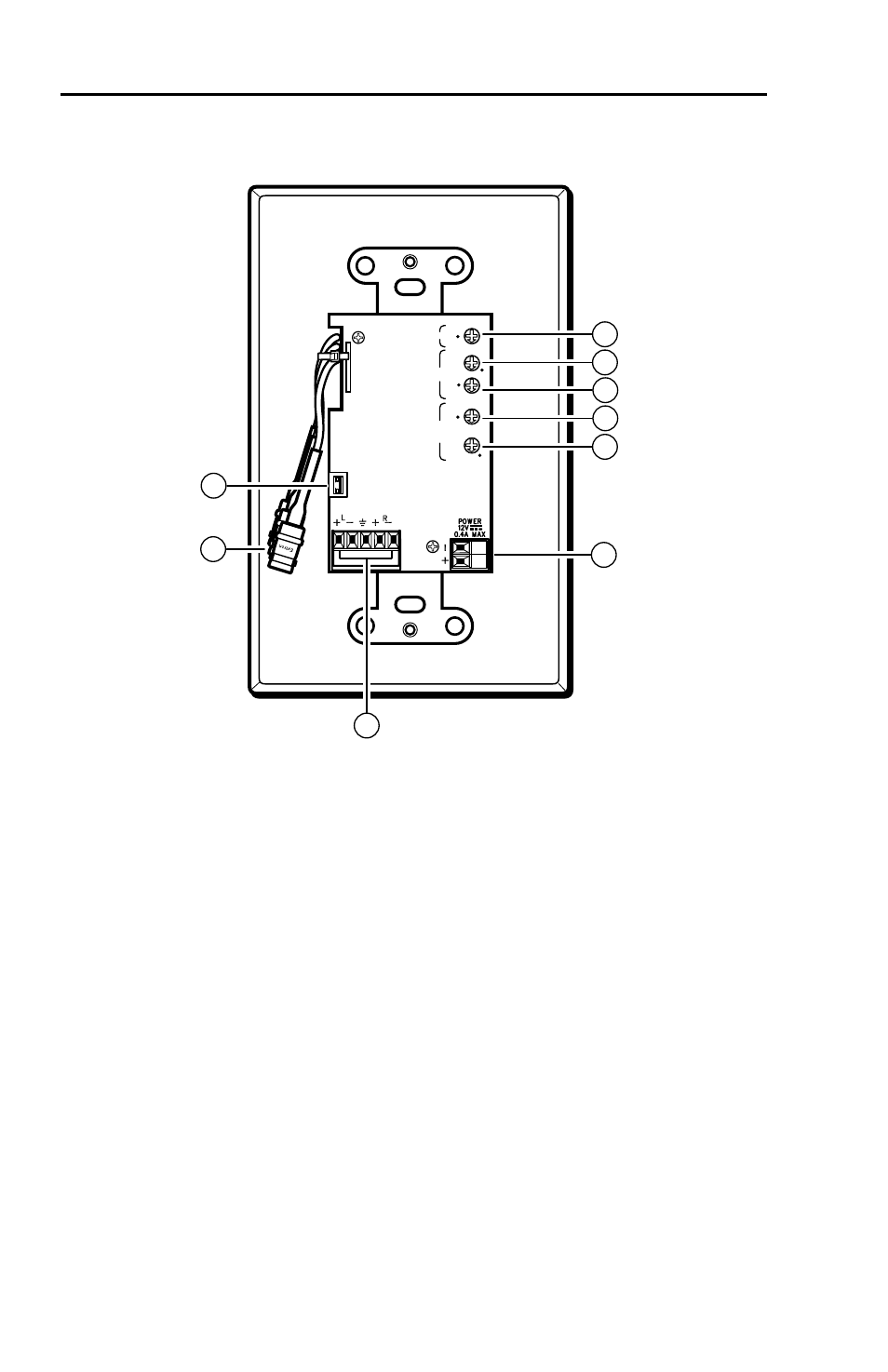

CSVEQ 100 D Rear Panel
1
9
8
7
6
5
2
3
4
a
Power connector — Connect the external 12 VDC power supply
into this 2-pin, 3.5 mm direct insertion connector. The power
supply is included with the unit. The "Power supply wiring"
section in this chapter explains how to wire the connector.
b
Audio output connector — Wire a balanced/unbalanced audio
output device to this 3.5 mm, 5-pole, direct insertion captive
screw connector. See the following wiring diagrams.
