CSVEQ 100 D • Installation
Installation, cont’d
2-6
5 . Insert the mud ring into the hole.
6 . Tighten all of the dogleg screws until the doglegs clamp
the mud ring to the mounting surface. Do not overtighten.
Standard mud rings only: If you are going to screw the
mud ring to the surface, rather than using the detachable
doglegs, mark the four surface mounting screw holes at the
corners of the mud ring.
Decora
Faceplate
Extron
CSVEQ 100 D
Wall
VIDEO I
N
S-VIDEO IN
L
R AUDIO IN
Extron
Wall Mounting Bracket

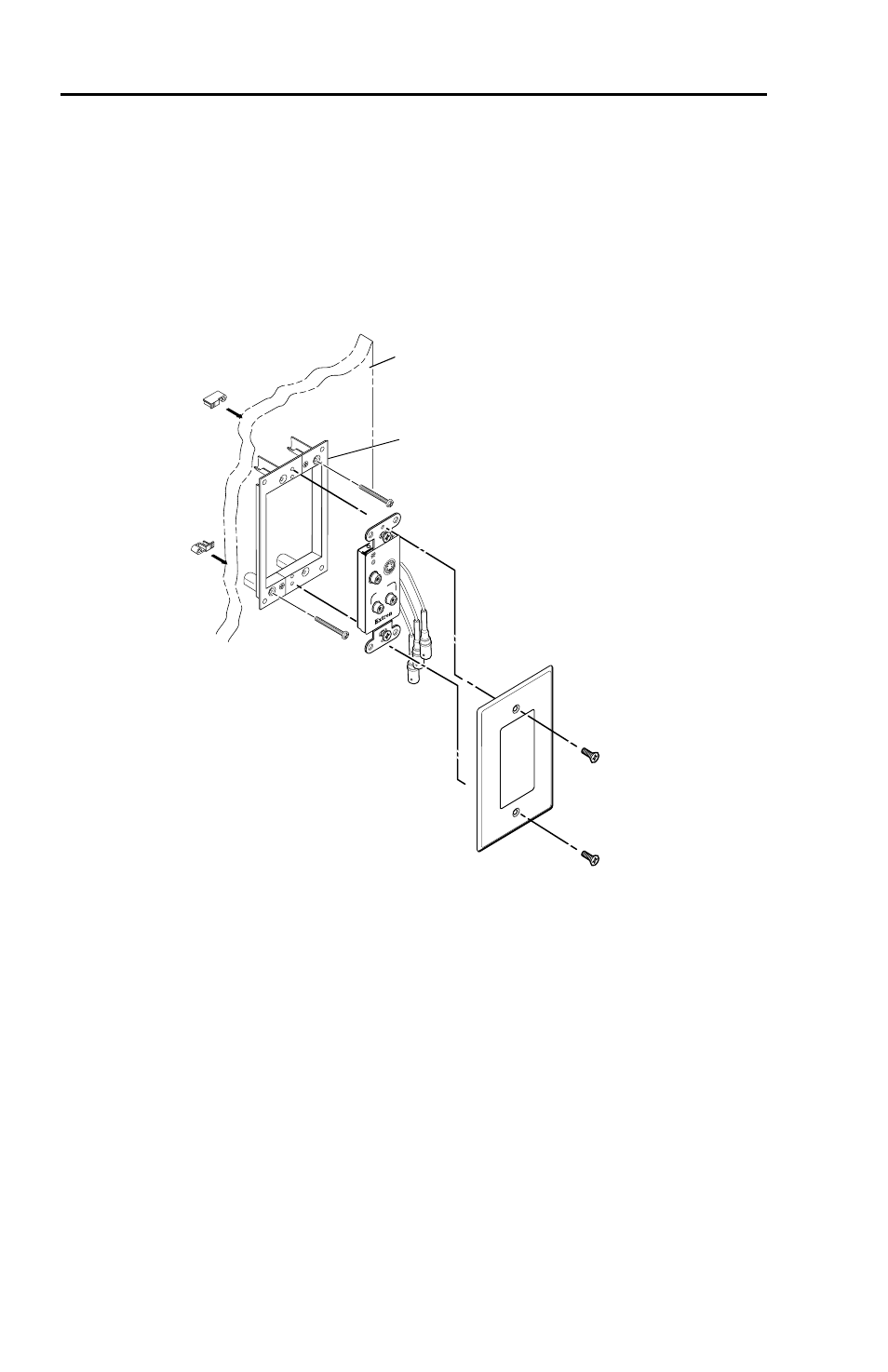

Installation using a mud ring
