Epson STYLUS R1900 - Manual (Page 16)

Sawgrass Technologies, Inc. ~ www.sawgrassink.com
10

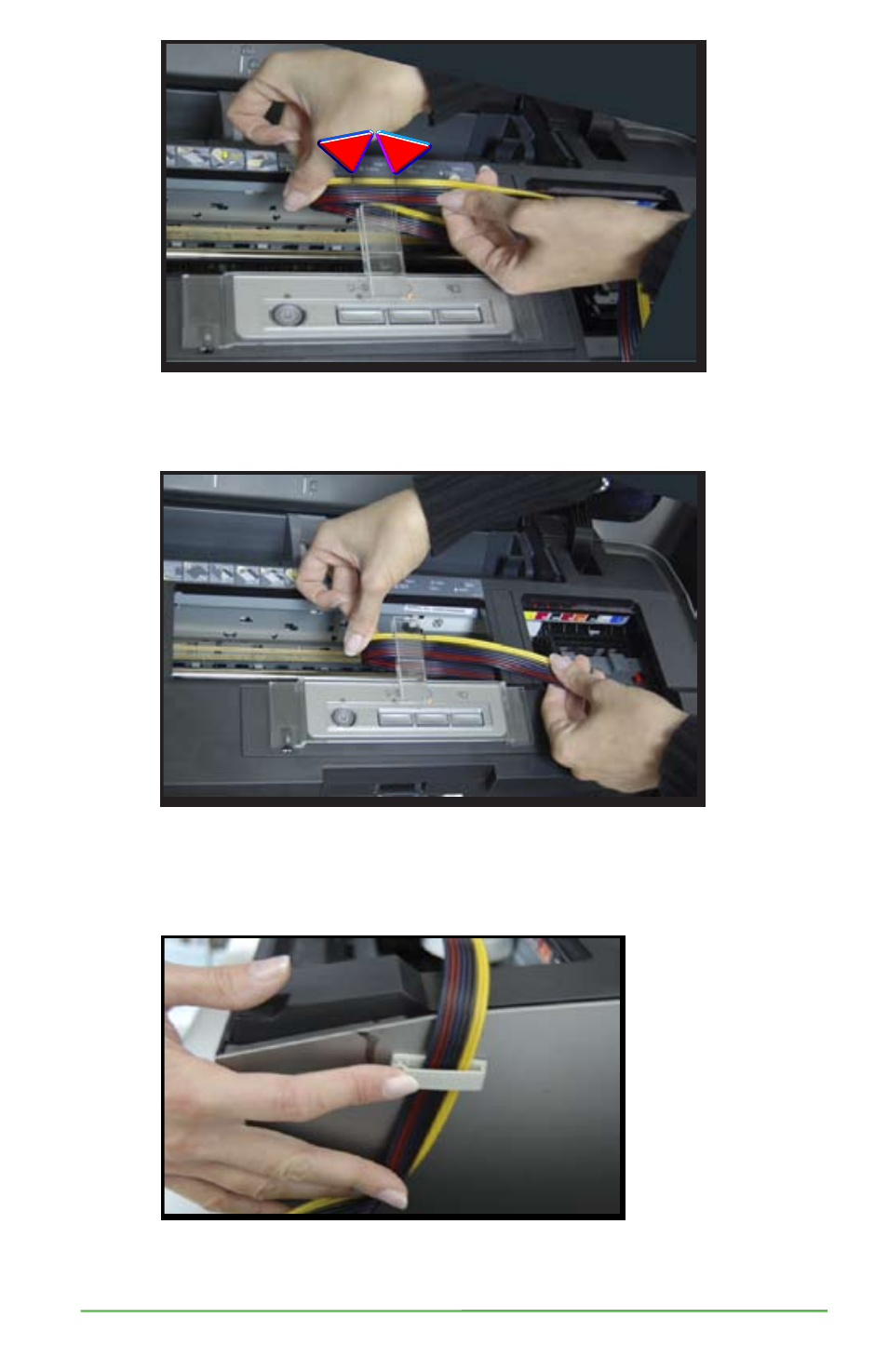

14.
Insert the Tubing into the Tube Holder with the black tube entering first & keeping
the black lines on the tubing aligned with the edges of the Tube Holder.
15.
Be sure to nestle the Tubing Belt as deeply as possible into the Holder. Maintain
a relaxed elbow as the Tubing Belt bends around to attach to the Cartridge
Carriage.
16.
Attach the Short Tube Holder to the Right Side of the Printer where the Tube
Belt hangs to enter the Ink Box.
