Water Connections

31

Liebert

®

CRV

7.4

Chilled Water Connections: Chilled Water Units

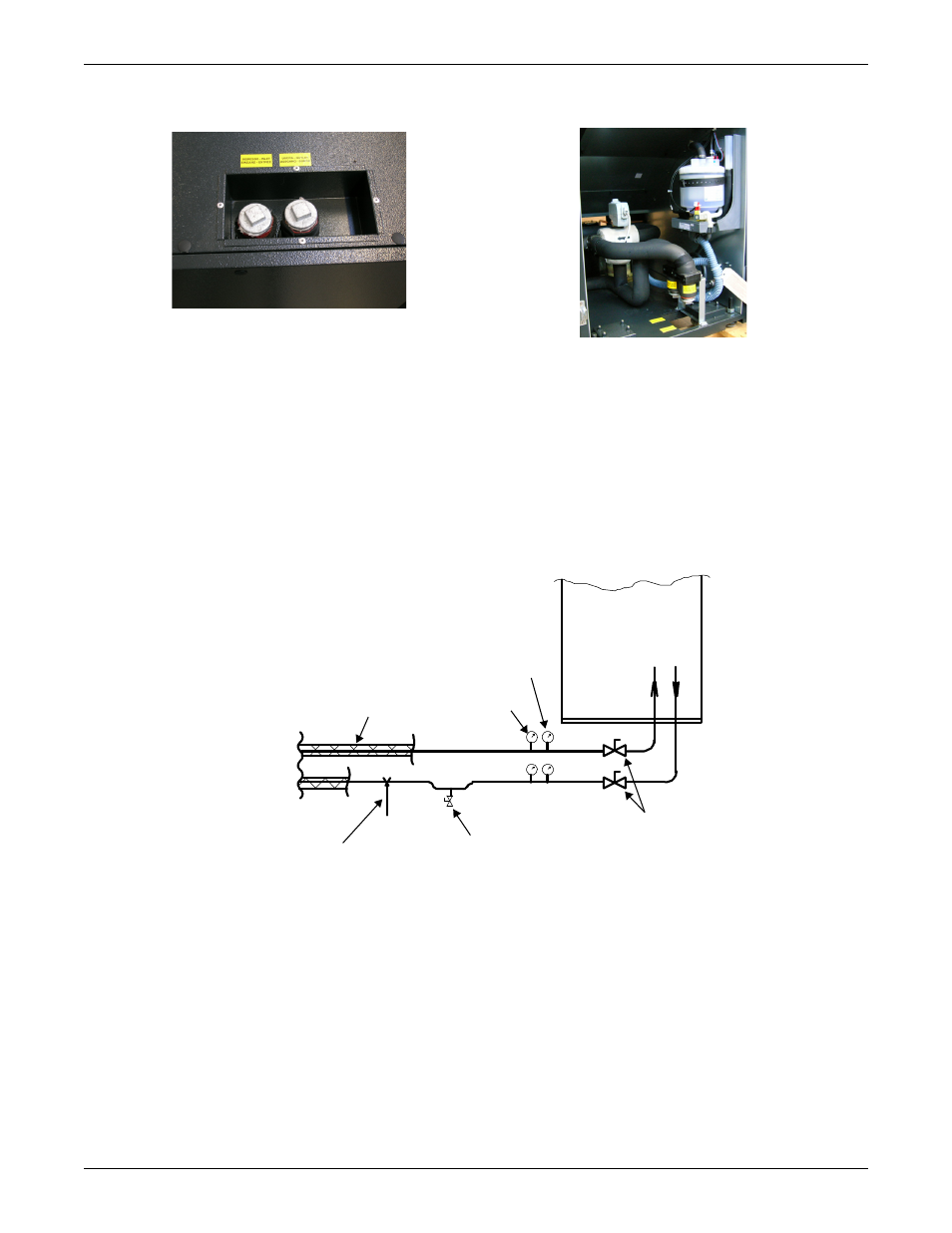

Figure 20 Chilled water connections

Refer to Figure 21 when performing these installation steps:

• Use copper tubing or steel pipe.
• Place the tubing on supporting saddles.
• Insulate both tubes
• Install shutoff ball valves on the inlet and outlet pipes to ease maintenance.
• Install optional thermostats and pressure gauges on the inlet and outlet pipes.
• Install a water drain tap at the lowest point in the circuit.
• Fill the circuit with water or glycol.

Figure 21 Chilled water circuit

Top Connections

Bottom Rear Connections

Tubing Support

Water Drain Tap

Ball
Valves

Thermostat

Pressure
Gauge

Insulation

Liebert CRV
