Inspection and Unpacking

Liebert

®

CRV

12

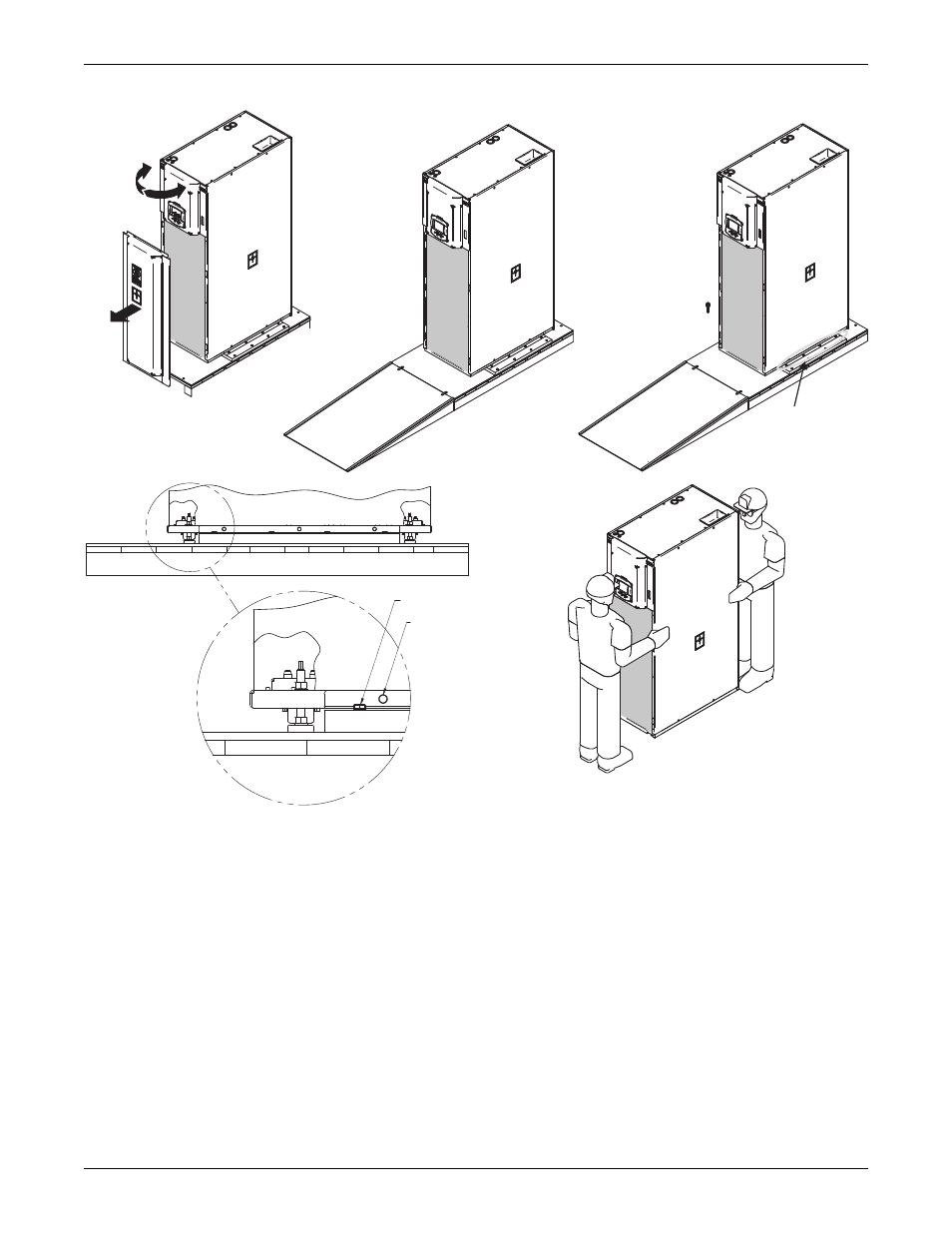

Figure 11 Removing the unit from the skid

3.6

Reattach the Baffle Panel

Once the Liebert CRV has been moved to where it will be installed, the baffle panel can be reattached.
1. Open top panel door (the one with the Liebert iCOM

®

).

2. Reattach the bottom baffle panel assembly with screws, using a T30 Torx drive.
3. Close and latch top panel door.

4 Bolts on Each Side
Secure the Tie-Down
Bracket to the Skid

M17 Socket

M13 Socket

Step 5

197023

Rev. 4

Step 1

Step 8

Step 8

Step 15
