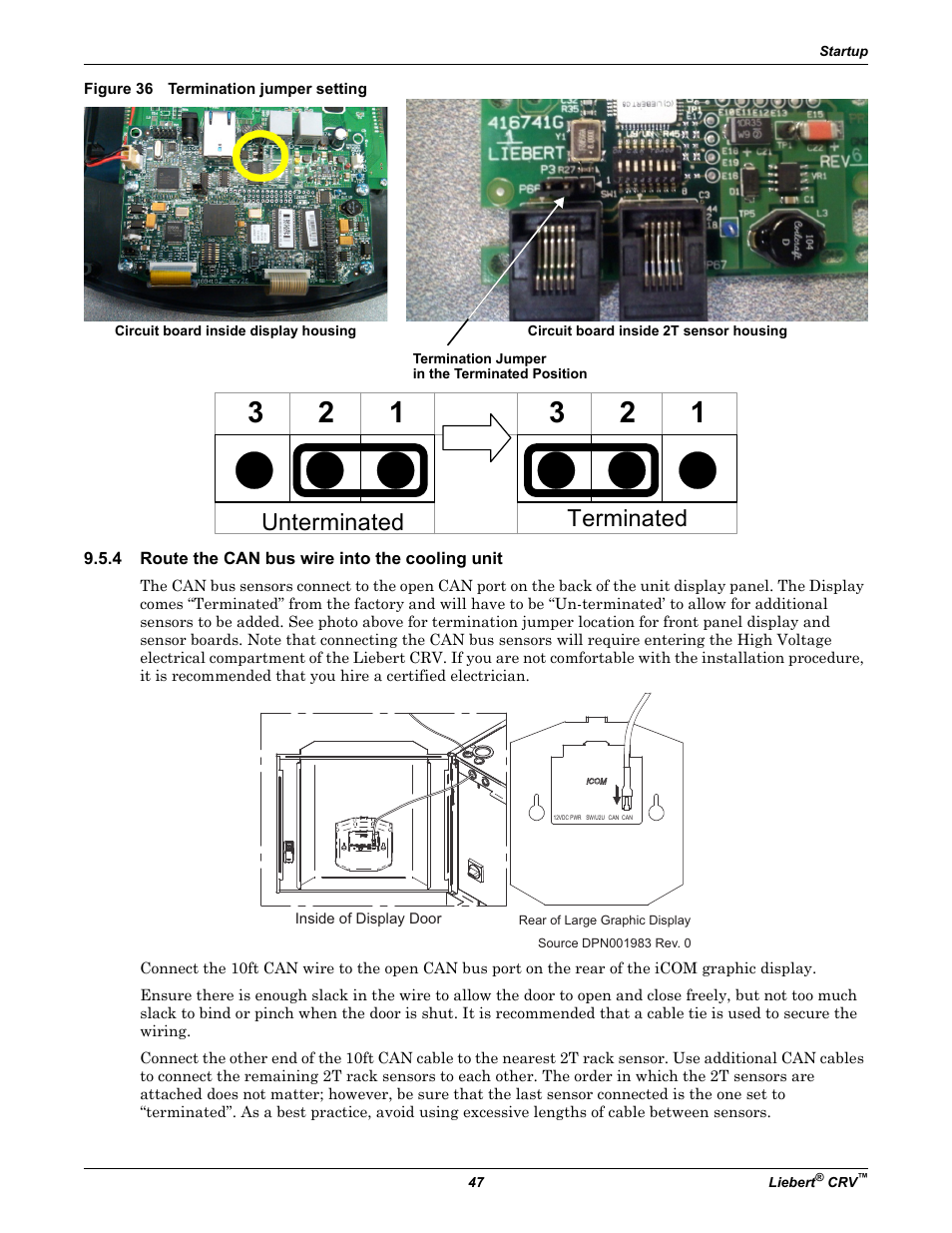

Figure 36 termination jumper setting, 4 route the can bus wire into the cooling unit, Route the can bus wire into the cooling unit – Emerson Liebert CRV 1 2 3 4 5 6 7 8 9 10 11 12 13 14 15 16 17 18 19 20 21 22 23 24 25 C R 0 2 0 R A 1 C 7 S D 1 8 1 1 E L 1 0 P A User Manual
Page 55: Unterminated terminated
Figure 36 termination jumper setting, 4 route the can bus wire into the cooling unit, Route the can bus wire into the cooling unit | Unterminated terminated | Emerson Liebert CRV 1 2 3 4 5 6 7 8 9 10 11 12 13 14 15 16 17 18 19 20 21 22 23 24 25 C R 0 2 0 R A 1 C 7 S D 1 8 1 1 E L 1 0 P A User Manual | Page 55 / 140
