15
English

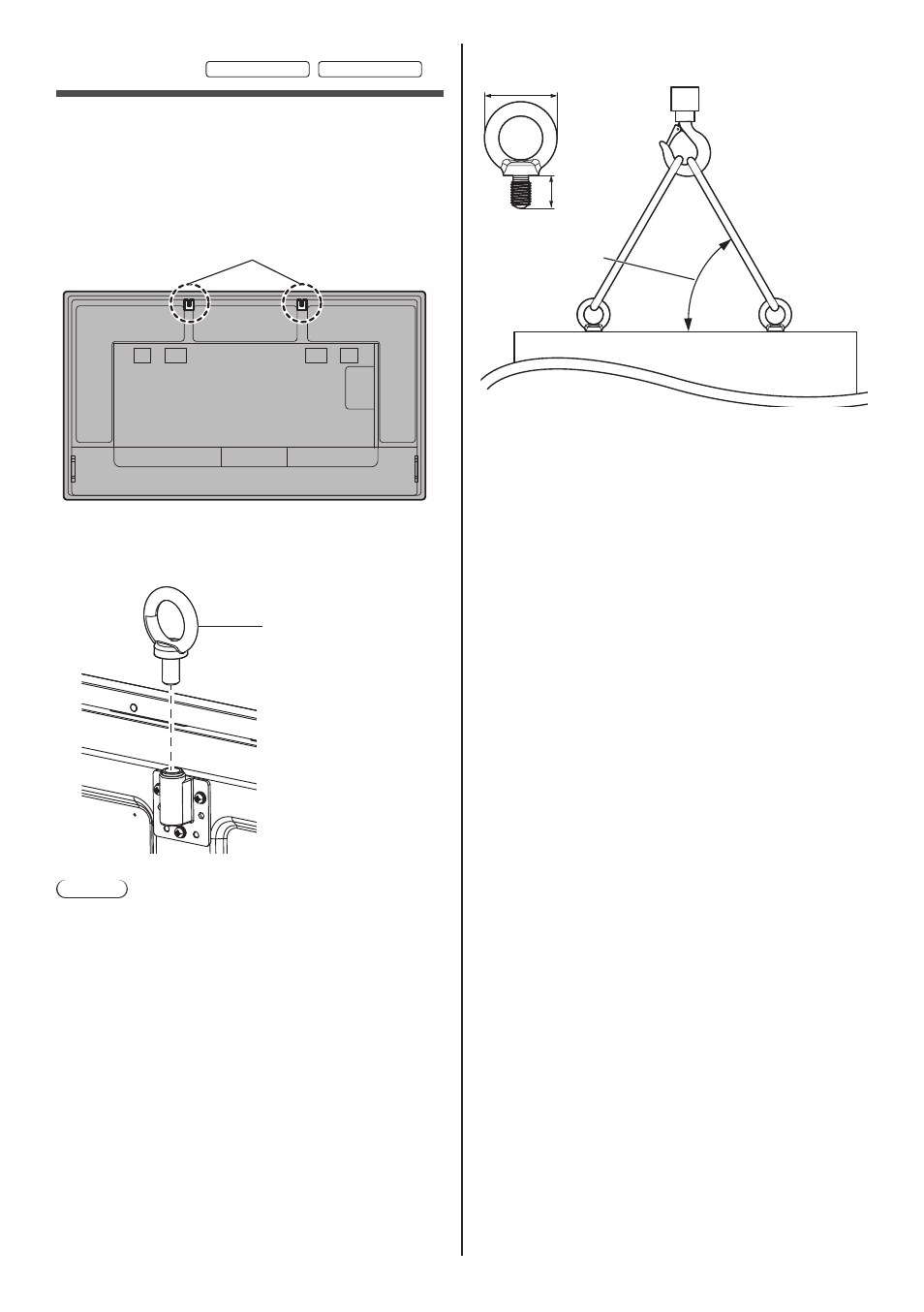

Eyebolt
86-inch model 75-inch model
The TV has holes for attaching eyebolts (M10). When
installing, use them to suspend the TV
Use the eyebolt only for temporary suspension or
movement for installation. This cannot be used for
permanent hanging installation.
Eyebolt (commercially available) mounting positions
Attach the eyebolt on the eyebolt
mounting position (two locations).
Eyebolt
Note
● Installation should be performed by an installation
professional.
● Do not suspend using only 1 eyebolt.
● Use commercially sold M10 eyebolts with a shank
length of 12 mm to 40 mm that satisfies the load
condition of product quality.
● Use ISO 3266 standard eyebolts. Also use ISO
standard members (wire, etc.) for hanging.
● The hanging angle should be 60° or more.
12 mm to
40 mm
φ 41 mm
or less
60° or more
