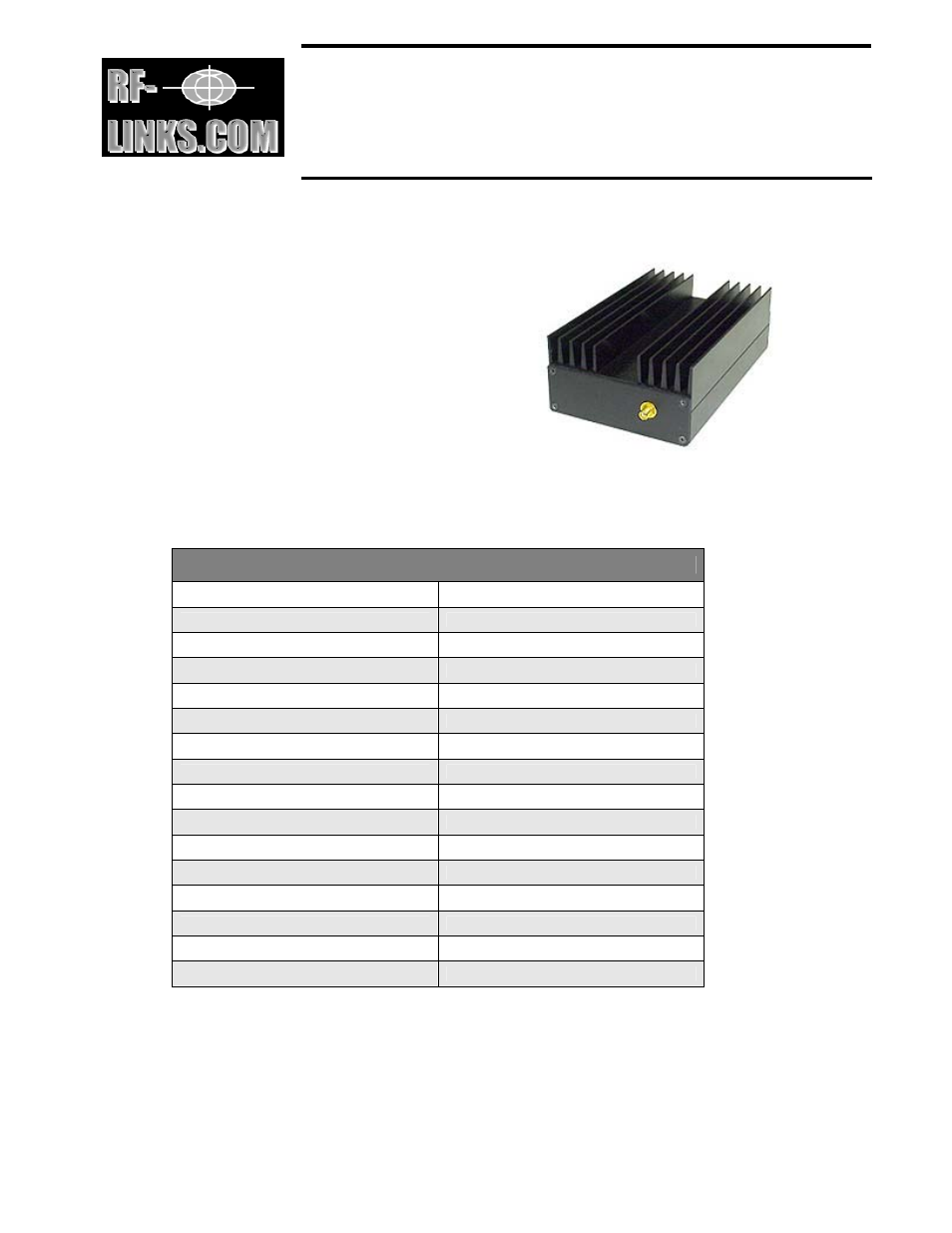

ZH-1522/3

HIGH POWER AMPLIFIER

2.5 W from 1500 MHz-2200 MHz

This is a tested Ultra low noise (Noise figure <2.1
dB/1,9 GHz), professional 2.5 W amplifier that requires
minimum driving input of 1 mW for the maximum of
2.5 W RF power output. It is broadband in 1,500 MHz-
2,200 MHz and doesn't require any tuning or adjusting.
Power supply is 12 V/ 0.98 A. Gain 28 dB. SMA
connectors Input / Output 50 ohms impedance. Class of
operation is AB.

Dimensions: 6.0" X 3.0 " X 2.0 ".

Technical Specifications

Operating Frequencies:

1500 MHz- 2200 MHz

Operating class:

Linear AB

DC Voltage:

12 V

RF power:

2.5 W

Input power:

1 mW, max. 10 mW

Minimum required voltage:

10 V

Battery power:

12 V - 14 V

Video distortion:

N/A

Video Format:

N/A

Current Consumption:

0.98 A / 12 V

Antenna:

N/A

Antenna Connector:

SMA

Impedance: 50

ohms

Temperature Range:

-40 +75* C

Dimensions:

6" X 4 " X 2"

Weight:

300 grams
