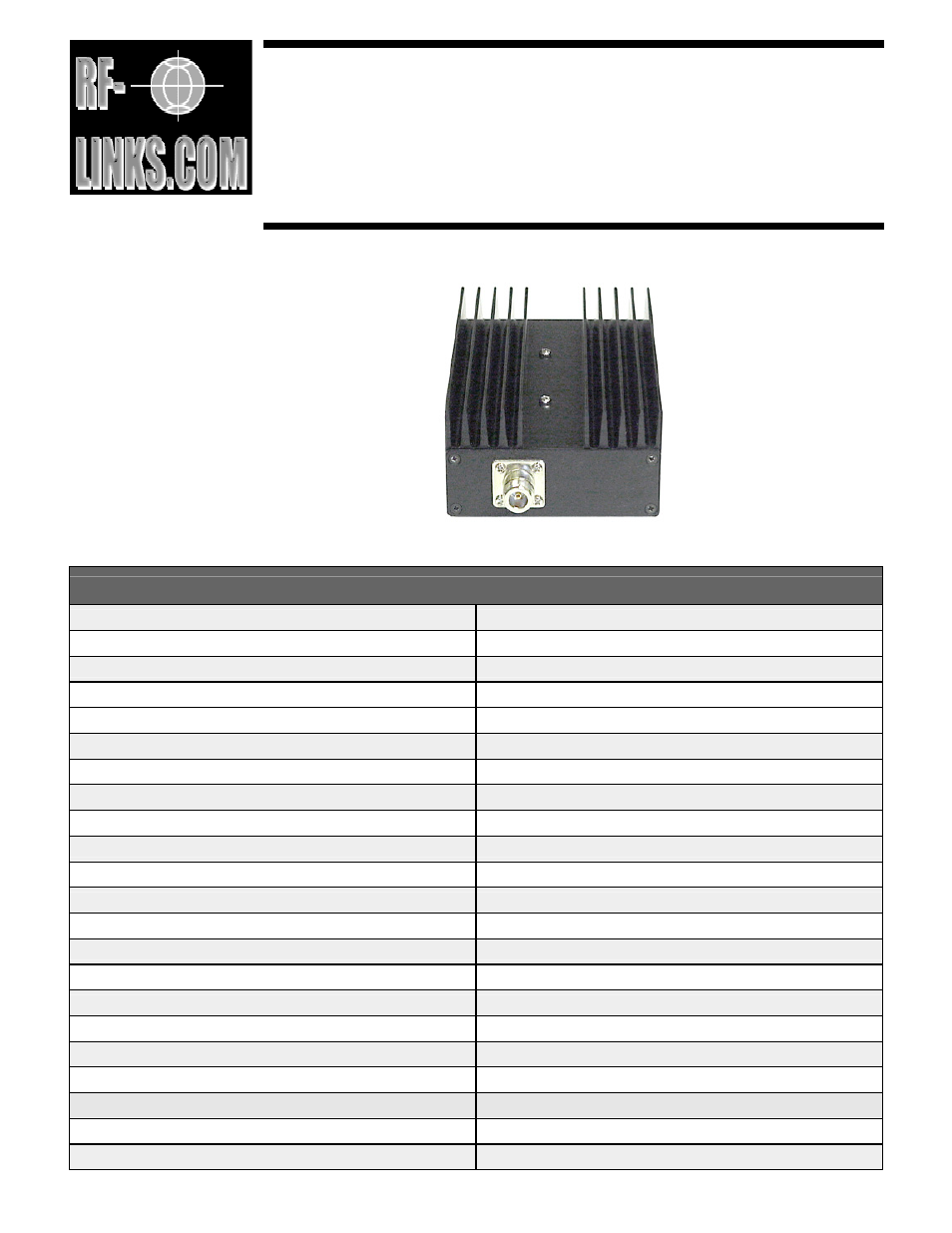

RF-Links Wideband Microwave 6W Amplifier (30-2500 MHz) - Manual

ZHM0325-6
WIDEBAND HIGH POWER
AMPLIFIER
30 MHz – 2500 MHz
This is a high power broadband amplifier for
labs or testing purposes. This amplifier is
excellent for VHF- UHF band 30 MHz- 2500
MHz. The gain is over 45 dB. The maximum
power is 6 W. Minimum required driving power
is only -8 mW. This amplifier is recommended
for testing, labs, Space research, Mil
applications etc.
Dimensions: 6.0 " X 4.0 " X 2.0 ".
Technical Specifications
Frequency range 30..2500 MHz
Input power for P1dB typ. -10 dBm, max. -6 dBm
Maximum input power 3 dBm
Output power P3dB typ. 37.8 dBm, min. 37 dBm
typ. 6 W, min. 5 W
Gain (small signal) min. 45 dB
Gain flatness (small signal) typ. +/- 2 dB
IM3 (1) typ. 23 dBc @ 37 dBm PEP
Efficiency min. 17 % @ 38.4 dBm
Input return loss (S11) min. 10 dB
ON voltage +5 ... 14 V DC
Supply voltage +28 V DC
Quiescent current typ. 1.1 A
Current consumption max. 1.5 A
Operating case temp. range -20 ... +55 °C
VSWR of load max. 1.8 : 1
Input connector / impedance N-female / 50 ohms
Output connector / impedance N-female, 50 ohms
Case milled aluminium
Dimensions (mm) 6.0” x 4.0” x 2.0”
Weight 520 g (typ.)
(1) Measured 2-tone, frequency spacing: 1 MHz
