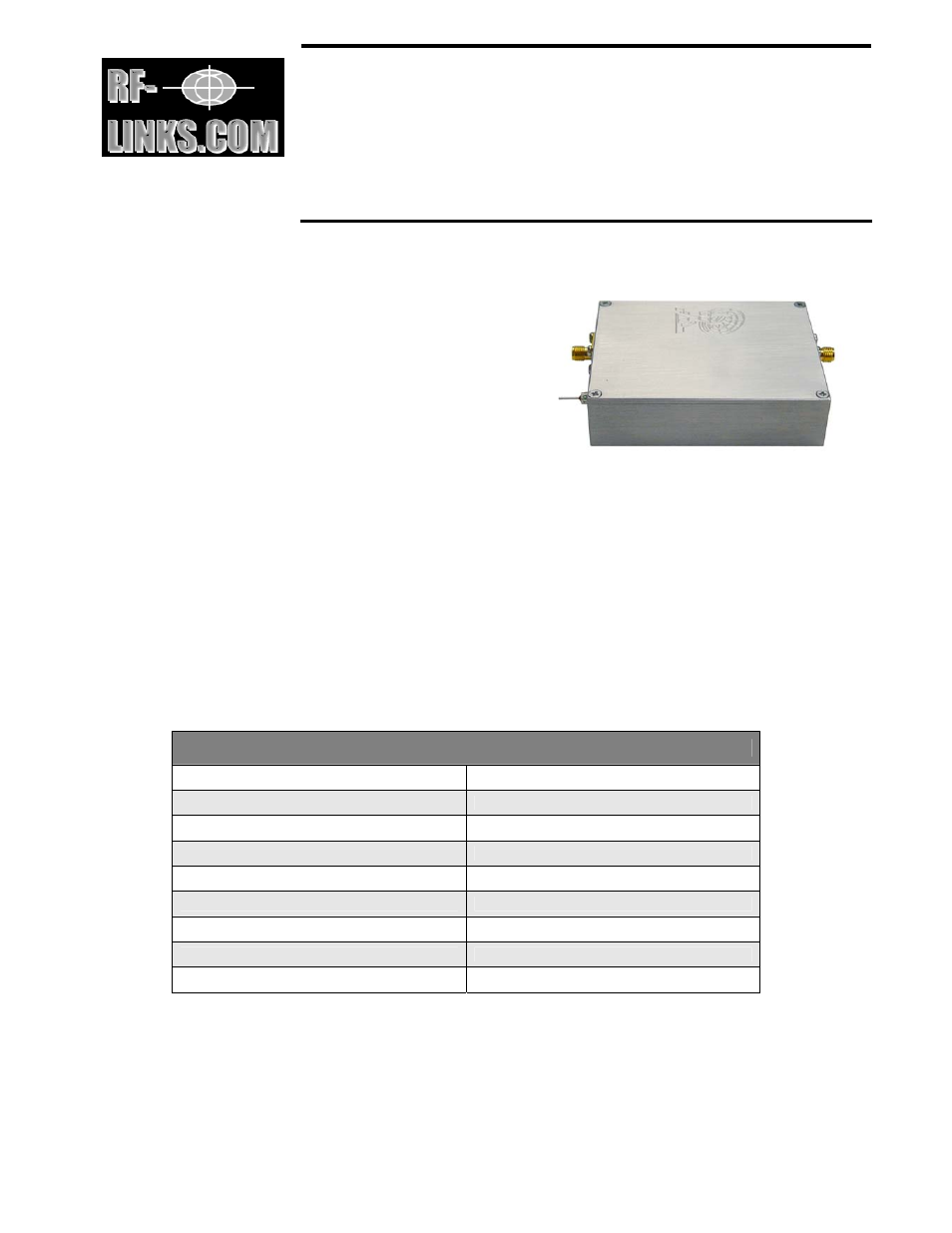

ZHM-5659/10
WIDEBAND MICROWAVE
AMPLIFIER 10 W
FORM 5.6-5.9 GHz
This is a high power broadband amplifier for labs or
testing purposes. This amplifier is excellent for SUHF
band 5600 MHz- 5900 MHz. The gain is over 36 dB. The
maximum power is 10 W. Minimum required driving
power is only 1-5 mW. This amplifier is recommended for
testing, labs, Space research, Mil applications etc.
Dimensions: 3.25" X 2.5" X 0.8"
10 W OUT WITH ONLY 1 mW DRIVING!
FEATURES
High Output Power: 36.0dBm(typ.)
High Linear Gain: 28.0dB(typ.)
Low VSWR
Broad Band: 5.6
～
5.9GHz
Impedance Matched 50
Ω
FOR US GOVERNMENT AGENCIES ONLY!
Technical Specifications
BATTERY POWER
12 V-17 V
RF POWER
10 W/50 ohms
CURRENT CONSUMPTION
1.6 A
RF IN/OUT
50 ohms
INPUT POWER
1-5 mW
WIDEBAND FREQ. RANGE:
5600 MHz- 5900 MHz
HIGH GAIN
28 dB / 5800 MHz
SIZE:
3.25" X 2.5" X 0.8"
CLASS LINEAR
AB
