RF-Links Wideband 15W Microwave Amplifier (5.6-5.9 GHz) User Manual
RF-Links Accessories for electrical

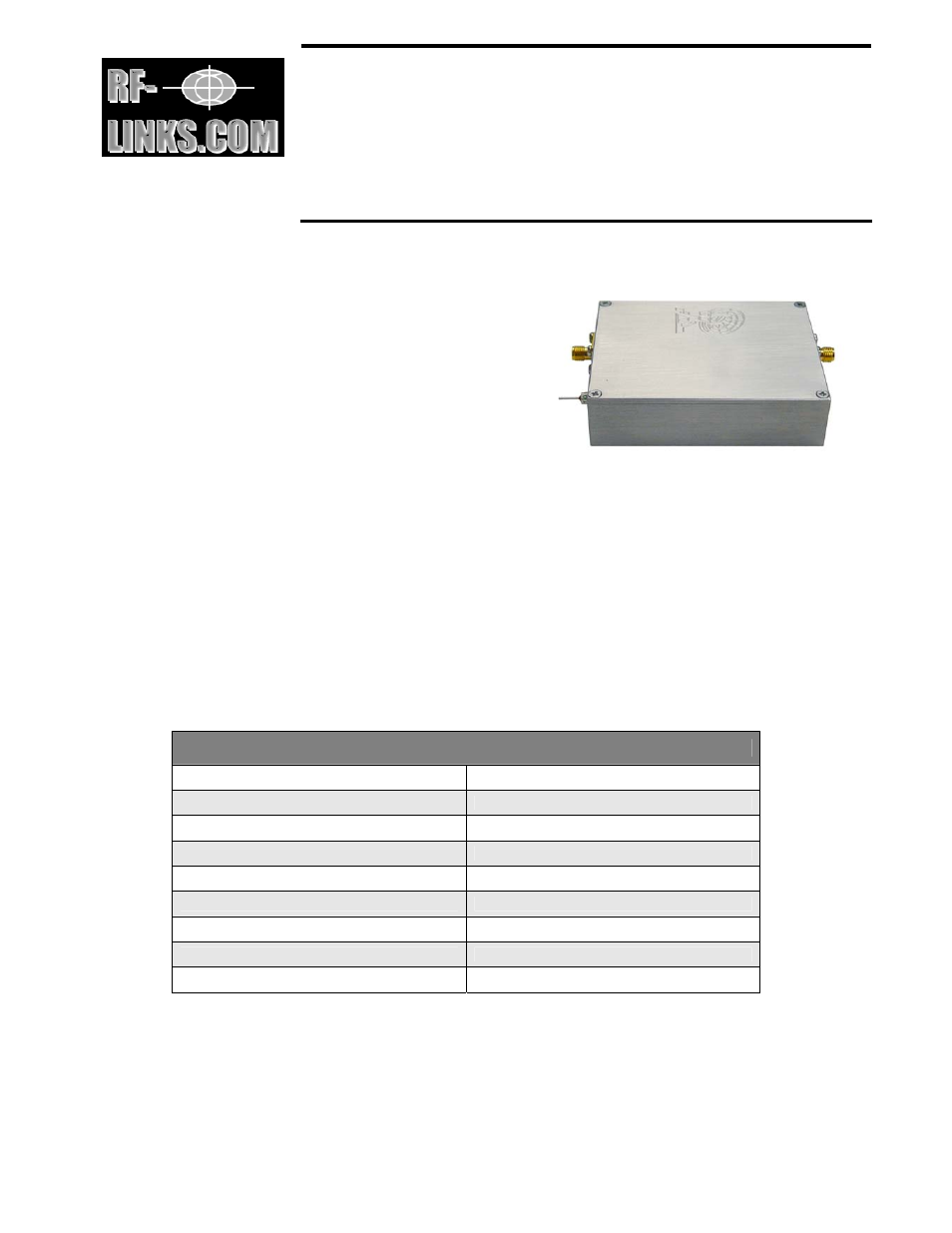

ZHM-5659/15
WIDEBAND MICROWAVE
AMPLIFIER 15 W
FORM 5.6-5.9 GHz
This is a high power broadband amplifier for labs or testing
purposes. This amplifier is excellent for SUHF band 5600
MHz- 5900 MHz. The gain is over 40 dB. The maximum
power is 15 W. Minimum required driving power is only 1
mW. This amplifier is recommended for testing, labs, Space
research, Mil applications etc
Dimensions: 3.25" X 2.5" X 0.8"
15 W OUT WITH ONLY 1 mW DRIVING!
FEATURES
High Output Power: 34.0dBm(typ.)
High Linear Gain: 41.0dB(typ.)
Low VSWR
Broad Band: 5.6
～
5.9 GHz
Impedance Matched 50
Ω
For more details please contact techsupport
FOR US GOVERNMENT AGENCIES ONLY!
Technical Specifications
BATTERY POWER
12 V-17 V
RF POWER
15 W/50 ohms
CURRENT CONSUMPTION
2.8 A MAX
RF IN/OUT
50 ohms
INPUT POWER
1 mW
WIDEBAND FREQ. RANGE:
5600 MHz- 5900 MHz
HIGH GAIN
41 dB / 5800 MHz
SIZE:
3.25" X 2.5" X 0.8"
CLASS LINEAR
