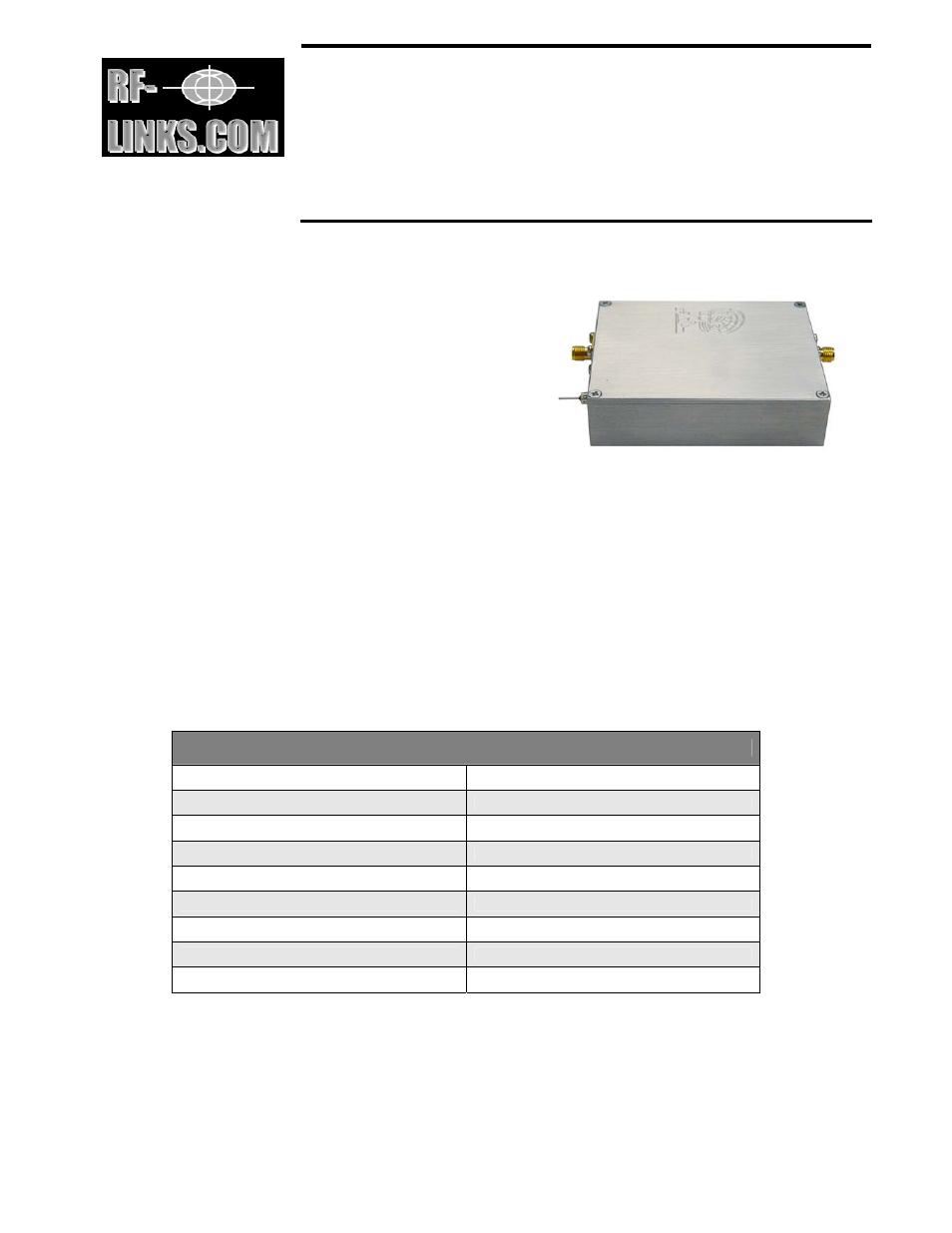

ZHM-5659/5
WIDEBAND MICROWAVE
AMPLIFIER 5 W
FORM 5.6-5.9 GHz
This is a high power broadband amplifier for labs or
testing purposes. This amplifier is excellent for SUHF
band 5600 MHz- 5900 MHz. The gain is over 36 dB. The
maximum power is 5 W. Minimum required driving power
is only 1 mW. This amplifier is recommended for testing,
labs, Space research, Mil applications etc.
Dimensions: 3.25" X 2.5" X 0.8"
5 W OUT WITH ONLY 1 mW DRIVING!
FEATURES
High Output Power: 36.0dBm(typ.)
High Linear Gain: 28.0dB(typ.)
Low VSWR
Broad Band: 5.6
～
5.9GHz
Impedance Matched 50
Ω
FOR US GOVERNMENT AGENCIES ONLY!
Technical Specifications
BATTERY POWER
12 V-17 V
RF POWER
5 W/50 ohms
CURRENT CONSUMPTION
1.6 A
RF IN/OUT
50 ohms
INPUT POWER
1 mW
WIDEBAND FREQ. RANGE:
5600 MHz- 5900 MHz
HIGH GAIN
36 dB / 5800 MHz
SIZE:
3.25" X 2.5" X 0.8"
CLASS LINEAR
AB
