Installation
15
5.3 Main Input and Output Terminal Block Connections
Conduit entry holes are provided on the front top of the removable cover plate for the parallel POD.
Input and output wiring should be run in separate conduit. See the following requirements and label
to connect the wires.

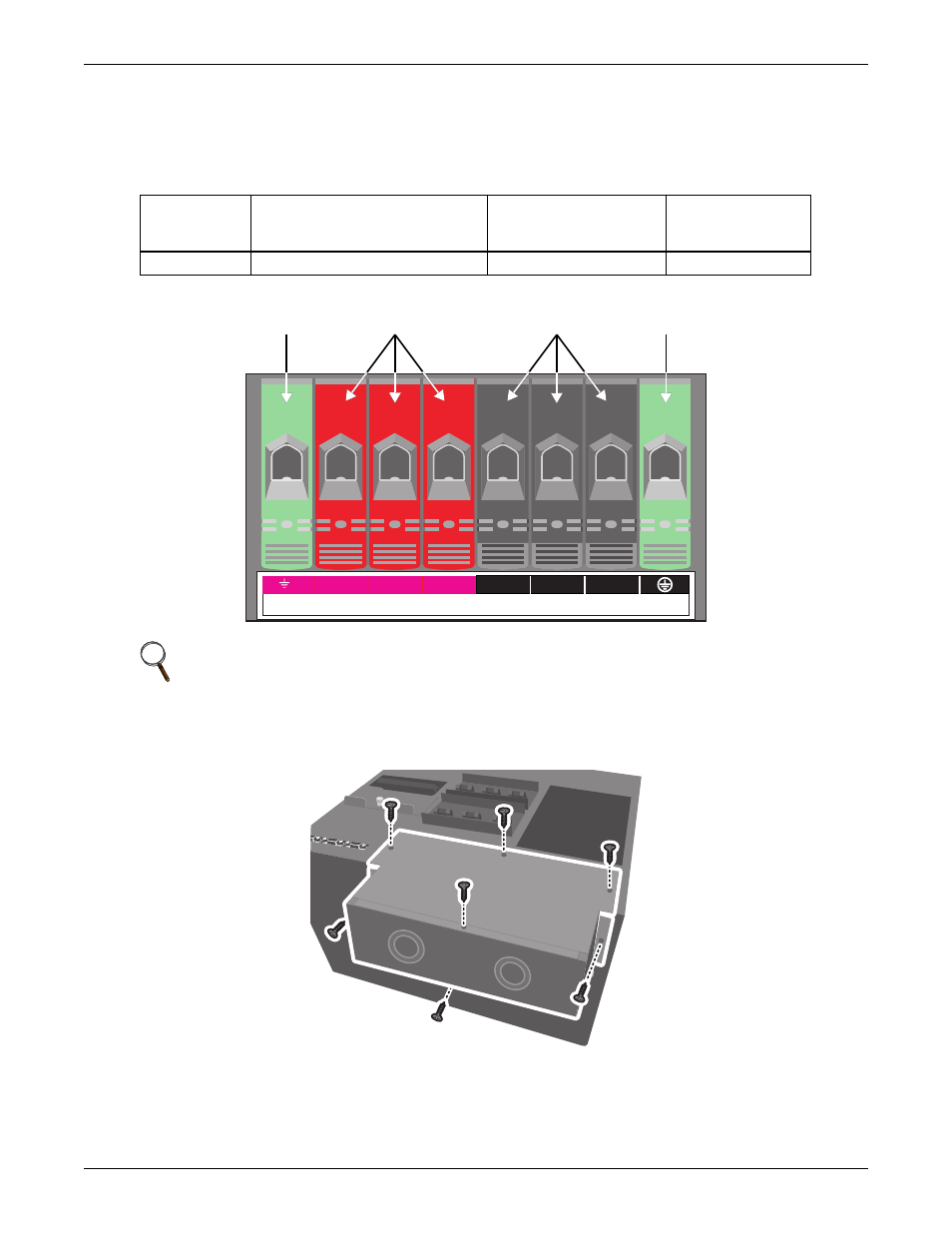

Figure 11 Hardwire terminal connections
When the terminal block connections are done, secure the cover plate with seven screws.
Figure 12 Secure the cover plate over the terminal connections
Table 1 Electrical requirements
Input Current
Rating
Recommended Maximum
External Overcurrent Protection
Recommended Wire
(including ground wire)
(75°C copper wire)
Terminal
Tightening Torque
83A 120A 1/0 AWG 50 lb-in (5.6 N-m)
NOTE
Terminal blocks are color-coded for easy installation. Make sure that the wires are connected to
the correct terminals. A 3/16" hex wrench is required for tightening the terminal blocks.
OUTPUT INPUT 120 Amp Max Branch
Overcurrent Protection
L1 N L2 L2 N L1
Red Black Green Green
