Installation
13
5.2 Paralleling System Connections
The Liebert GXT2-PP20KRT208 is shipped with the input and output slots for UPS and the optional
output power distribution section covered. Installation of the paralleling system requires: parallel
power cables, fixed plates and cable clamps. These are included in Liebert GXT2-20KPC-6 kit (see
Figure 7). Follow the procedure below to start the installation.

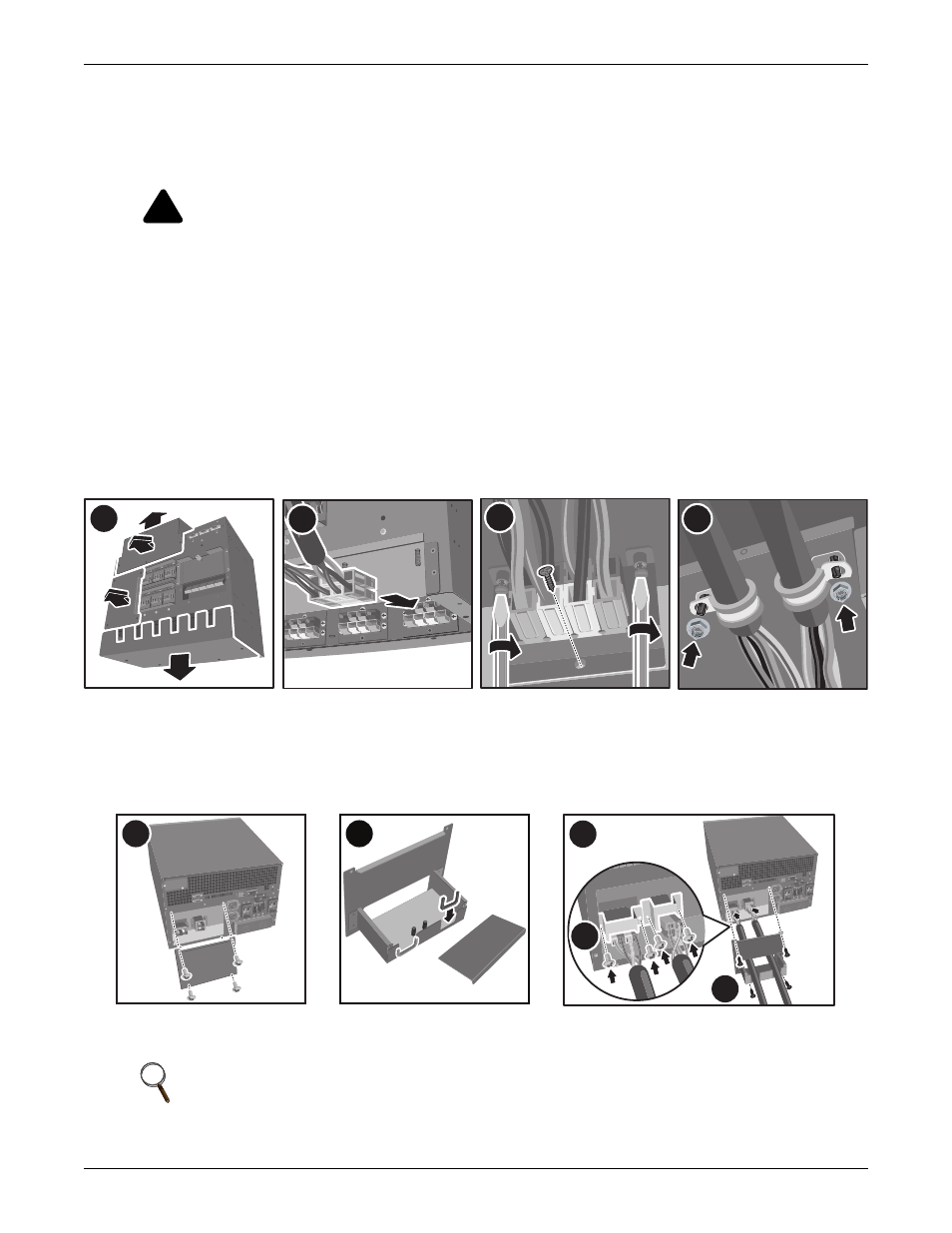

1. Remove the screws securing the parallel POD covers. Keep the optional output power distribution
cover closed when not in use (see 5.4 - Add an Output Power Distribution Module—
Optional for the optional distribution POD installation).
2. Connect one end (eight-pole connector) of the parallel power cable to the UPS input and output
slot on the parallel POD. They are color-coded for proper alignment and installation.
3. Use the fixed plate to tighten the connector securely.
4. Use two cable clamps to fasten the parallel power cable onto the parallel POD (10mm hex driver
is required).
5. Remove the output distribution cover from the rear panel of the UPS. If either power distribution
module PD-101, PD-102 or PD-1xx is installed on rear panel of the UPS, it must be removed.
6. Insert the edge guards (see Figure 6) into the open slots on the cable housing.
7. Pass the other end of the parallel power cable through the cable housing for output distribution of
UPS and connect the connectors to the slots inside the UPS. The connectors are color-coded and
assembled for proper alignment and installation.
8. Use the fixed plates to tighten the connectors securely.
9. Secure the cable housing to the rear panel of the UPS with four screws.
!
WARNING
Risk of electric shock. May cause property damage, personal injury or death.
Lethal voltages may exist within the UPS and parallel POD as long as the UPS is connected.
Ensure that all the UPS are disconnected and that the power is off before working within the
parallel POD. Check the circuits with a voltmeter.
In addition, make sure all the internal batteries within the Liebert GXT2-10000RT-208 UPSs
are disconnected.
NOTE
The parallel power cables assembly is the only connection to the UPS for input/output power
when connected to the parallel POD. Do not make any connections to the input/output
hardwired terminal block on the UPS’ rear panel.
2 3 4 1
8
9
7 5 6
