Installation
11
5.0 I
NSTALLATION
This section includes instructions on how to set up the connections between the parallel POD and the
UPS, connect wiring to the terminal block, install the Liebert GXT2-PP20KRT208 parallel POD in a
rack or on a wall and add an optional distribution POD.
Do NOT attempt to start the UPS, turn on any circuit breaker or energize the input power until
instructed to do so in 6.0 - Initial Startup and Electrical Checks. Verify that all circuit breakers
are in the open (Off) position.
Inspect the parallel POD for freight damage. Report damage to the carrier and your local dealer or
Liebert representative.
5.1 Mount the Liebert GXT2-PP20KRT208 in a Rack or on a Wall
The Liebert GXT2-PP20KRT208 may be mounted either in a rack or on a wall. When installing the
Liebert GXT2-PP20KRT208, use the factory-supplied fixed brackets.
Position the four fixed brackets at the screw holes—front, middle or rearmost—on either side of the
Liebert GXT2-PP20KRT208 that best fits the installation location desired and attach with included
screws. Figure 8 shows an example of securing the fixed brackets to the front screw holes.

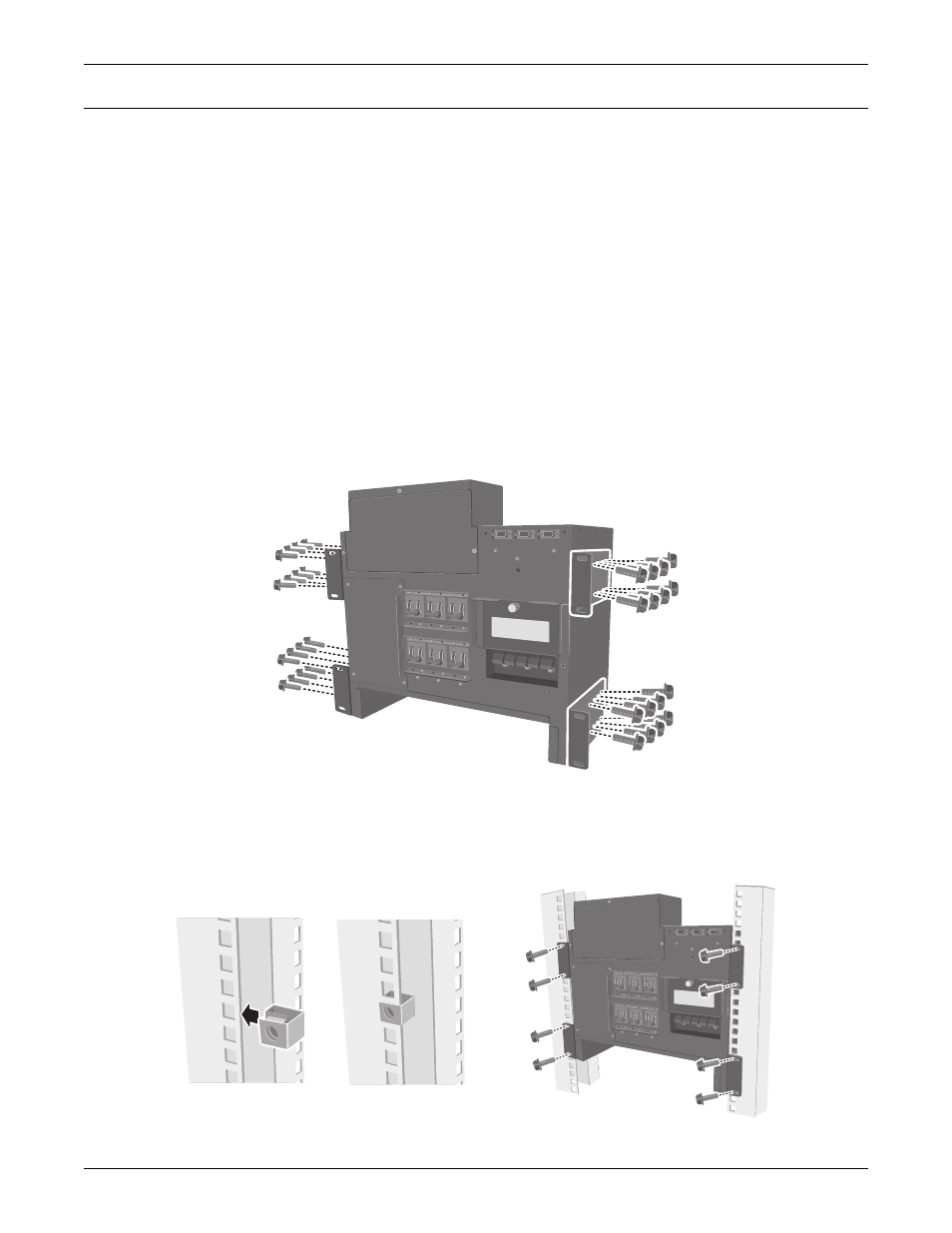

Figure 8 Secure the fixed brackets to the Liebert GXT2-PP20KRT208
5.1.1 Mount the Liebert GXT2-PP20KRT208 in a Rack
Determine an appropriate place for the Liebert GXT2-PP20KRT208 in the rack and secure the
fixed brackets to the rack with eight M6x16 screws (factory-supplied).
Figure 9 Secure a parallel POD to a rack
