Using the Mounting Plate

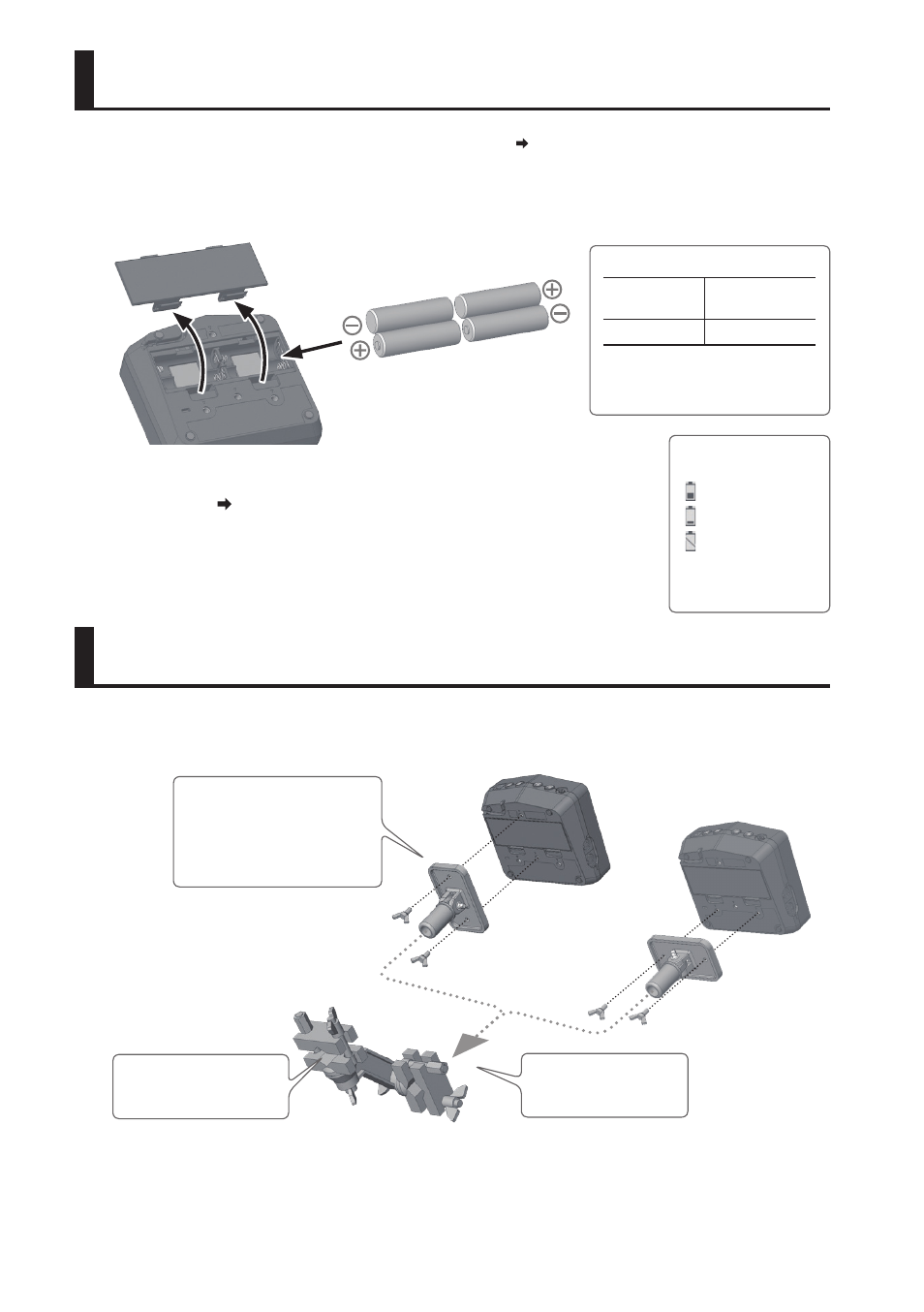

By using the mounting plate (included) and the all-purpose clamp (APC-33: sold separately), you can attach the
TM-2 to a hi-hat stand or cymbal stand.
1. Use the included screws to
attach the included mounting
plate.
You can attach the mounting
plate in either vertical or
horizontal orientation.
2. Attach the TM-2 to the
all-purpose clamp.
Vertical
Horizontal
3. Attach to a cymbal stand
or hi-hat stand.
Remove the mounting plate when installing or removing batteries.
* Use only the screws that are included with the TM-2. Using any other screws may cause malfunctions.
* When turning the unit over, be careful so as to protect the knobs from damage.
* You must turn off the power before installing or removing the batteries. p. 6
* If you’re using the unit on battery power, disconnect the AC adaptor from the DC IN jack.
1.
Open the battery compartment cover located on the bottom panel.
2.
Install rechargeable Ni-MH batteries or alkaline batteries (four AA batteries).
1
2
3.
Change the “BATTERY Type” setting to match the type of batteries that
you installed. p. 14
The approximate remaining battery life is shown in the kit screen.
* If you handle batteries improperly, you risk explosion and fluid leakage. Make sure that you
carefully observe all of the items related to batteries that are listed in “USING THE UNIT SAFELY”
and “IMPORTANT NOTES” (leaflet “USING THE UNIT SAFELY” and Owner’s Manual p. 20).
Battery life (under continuous use)
Rechargeable
Ni-MH battery
Approx. 6 hours
Alkaline battery Approx. 4.5 hours
* The time may vary according to
usage conditions, batteries used, and
type of SD memory card used.
Remaining battery
amount (approximate)
Half
Nearly empty
Replace the batteries
* The indicator is not
shown if there is plenty
of remaining capacity.
Installing Batteries
* Take care to observe the
correct polarity.
