10

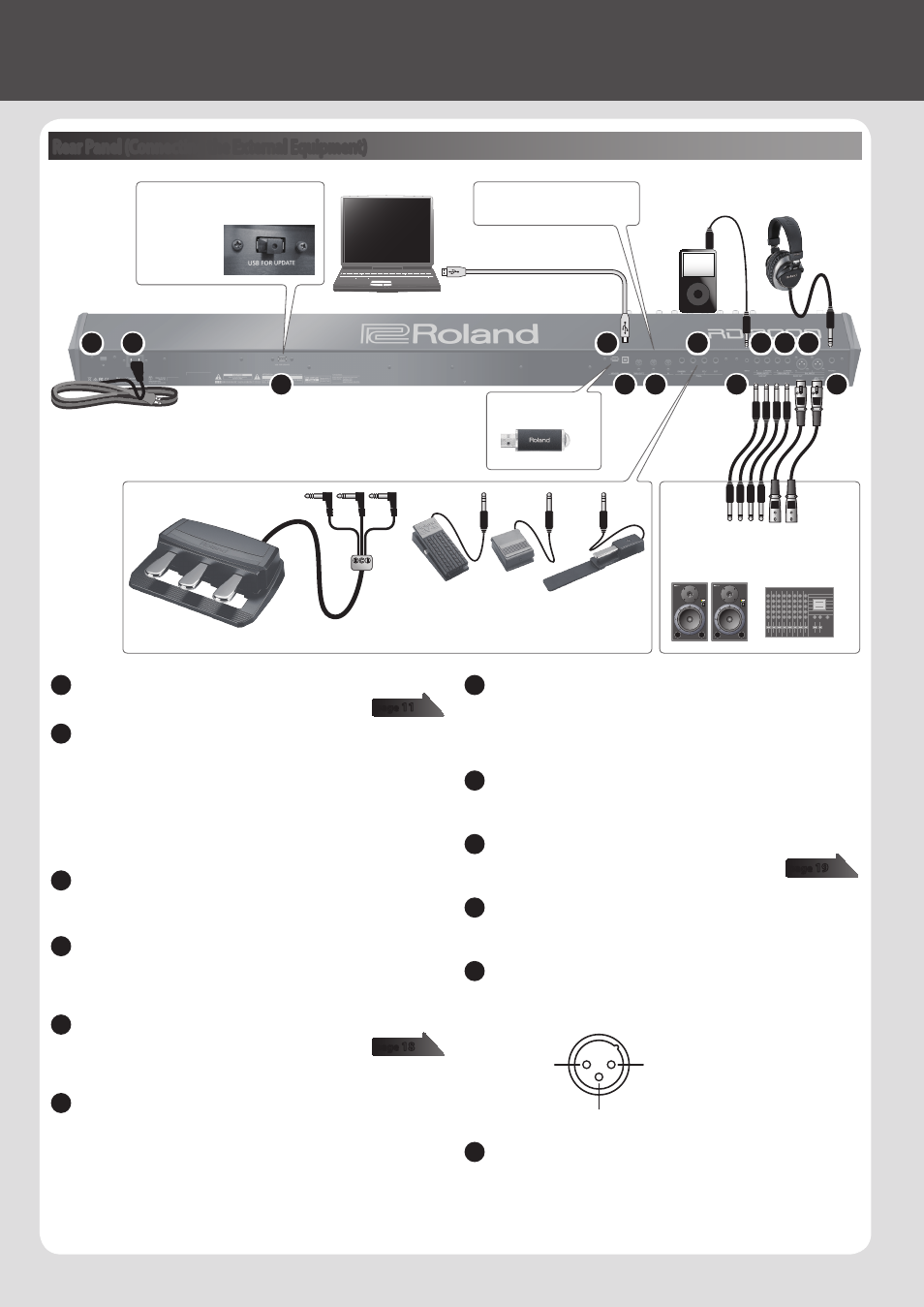

Rear Panel (Connecting the External Equipment)
A
[
L
] switch
This turns the power on/off.
B
AC IN jack
Connect the included power cord to this connector.
* To prevent malfunction and equipment failure, always turn
down the volume, and turn off all the units before making any
connections.
* Use only the specified expression pedal. By connecting any other
expression pedals, you risk causing malfunction and/or damage
to the unit.
C
USB FOR UPDATE jack
Use this to update the RD-2000.
Normally you should leave the USB cap inserted to protect the port.
D
USB MEMORY port
Use a commercially available USB flash drive or a USB flash drive
sold by Roland. However, we cannot guarantee that all commercially
available USB flash drives will work with this unit.
E
USB COMPUTER port
You can connect this to your computer so that it can
exchange performance data and audio signal with the
RD-2000.
F
MIDI connectors (IN, OUT 1, THRU/OUT 2)
Used for connecting external MIDI devices and for transmission of MIDI
messages.
The THRU/OUT 2 connector’s function can be switched to operate
either as MIDI THRU or as MIDI OUT (p. 26).
G
PEDAL jack (DAMPER, FC1, FC2, EXT)
Connecting the pedal switch provided with the RD-2000 to the
DAMPER jack allows you to use the switch as a damper pedal.
With a pedal connected to the FC1, FC2 or EXT jack, you can then
assign a variety of functions to the pedal (p. 21).
H
INPUT jack
This is an audio input jack. You can connect your audio player or other
audio source here.
I
SUB OUT jack (L/MONO, R)
Provide output of the audio signals. For mono output,
use the L/MONO jack.
J
MAIN OUT jack (L/MONO, R)
These are connected to an amp or other device. For mono output, use
the L/MONO jack.
K
MAIN OUT jack (L, R) (XLR type)
Connectors for balanced output of the audio signals. Connect to
mixers and other such gear.
* Pin assignment of MAIN OUT jack
1: GND
2: HOT
3: COLD
1: GND
2: HOT
3: COLD
TIP: HOT
RING: COLD
SLEEVE: GND
L
PHONES jack
A set of headphones can be connected to this jack.
Even when headphones are connected, audio signals will still be
output from the OUTPUT jacks and BALANCED OUT jacks.
to Power outlet
USB flash drive
For connecting MIDI device.
Audio player
Stereo
headphones
Computer
A
B
C
D
E
F
G
H
I
Pedal unit
(RPU-3)
Expression pedal (EV-5)
or
Pedal switch (DP Series)
J K
L
Mixer etc.
Monitor speakers
(powered)
This port is only used for updates.
Normally you should leave the USB
cap inserted
to protect the
port.
