AN-X-MOD (Master) Page 3
The module firmware can be updated over Ethernet using the Windows
utility supplied. Refer to page 72 for details.

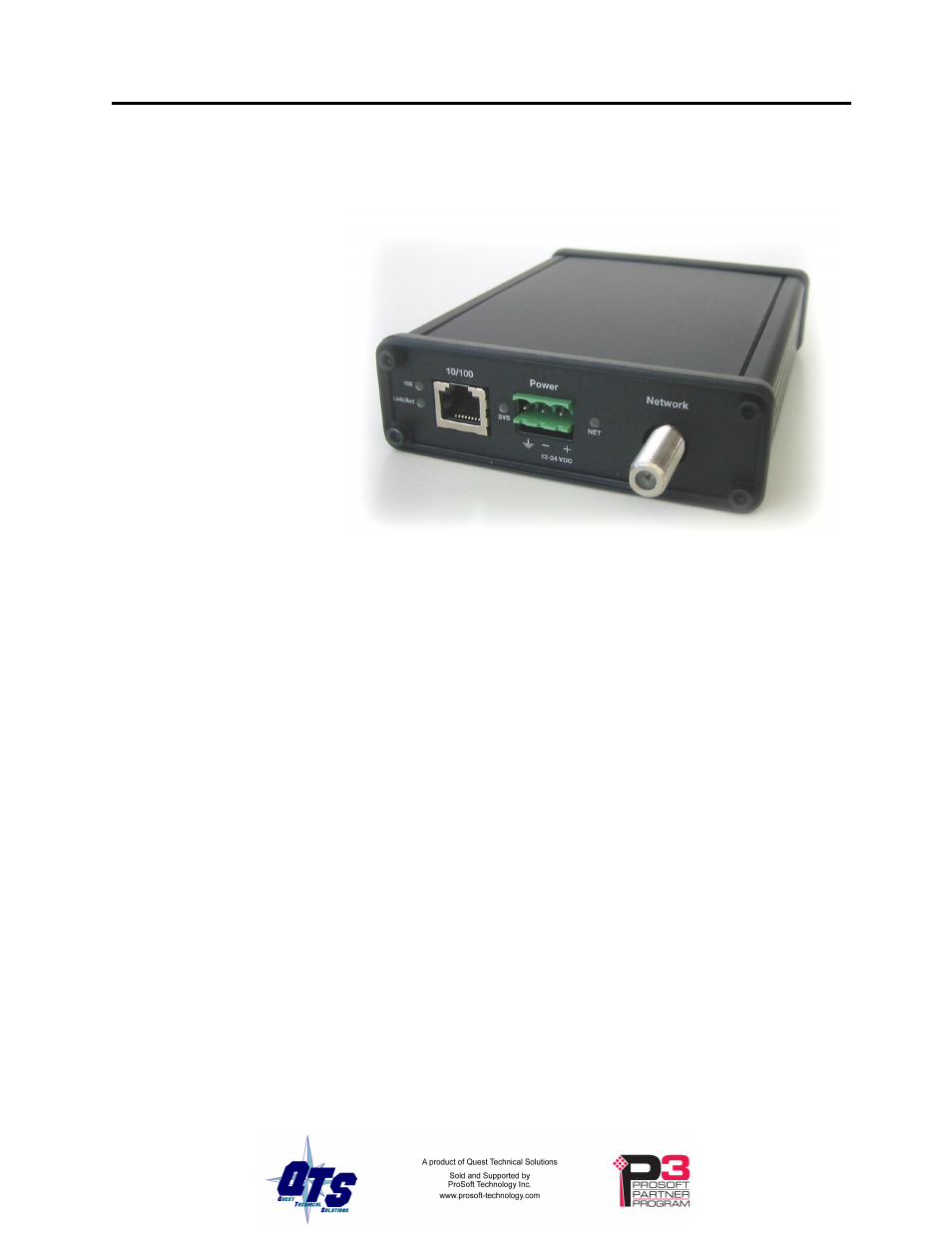

Hardware Features
The module has:
• LEDs to indicate the status of the Ethernet connection, the module’s
internal state, and state of the connection to the S908 remote I/O
network
• an Ethernet connector
• a power connector
• an F connector to connect to the S908 network
Package Contents
• AN-X-MOD (Master) module
• CD containing software and documentation
• rubber feet for desktop use
Modes of Operation
There are three AN-X modes of operation:
• Boot mode. The AN-X is running its low level startup firmware.
• Configuration mode. This is the mode when you are updating the
firmware in the AN-X.
• Production mode. This is the normal runtime mode of operation.
