Page 42 AN-X-MOD (Master) November 2011

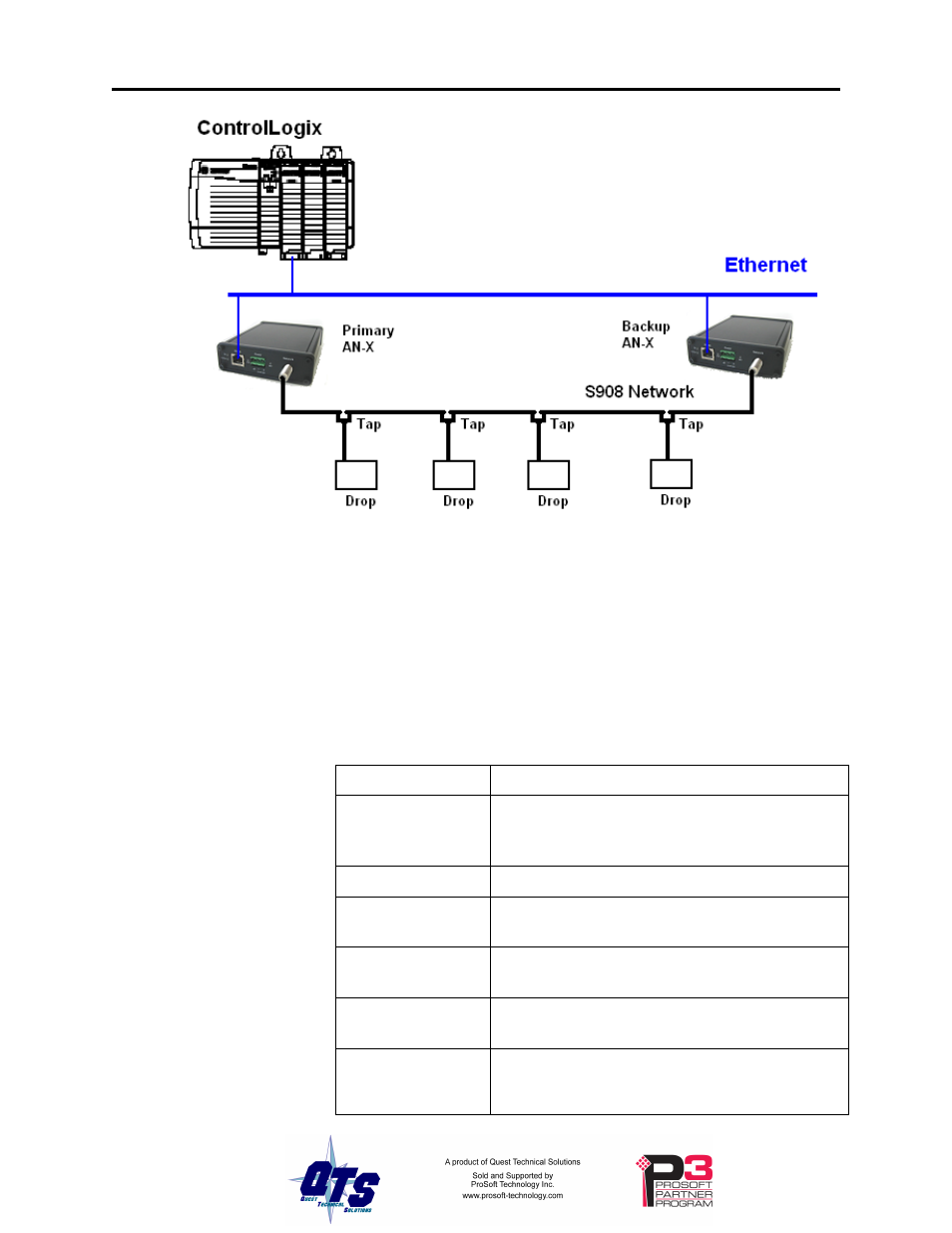

ControlLogix Ethernet Configuration File
The following elements of the ControlLogix configuration file are used
in redundant applications or have their usage slightly changed in
redundant applications..
Parameter Description
RedundEna,
RedundPrefix RedundEna must be included at the beginning of
the ControlLogix configuration file, and is
followed by the redundant prefix for the module
RedundPrefix is used to create aliases
RedundCtl Must be mapped to the output data for the
connection to slot 0
ScanSts Scan status table, can be mapped to the input data
for any connection
LongInput Forces 800 series drops to send inputs on every
scan
DataOutput,
arrayname The array names can be used to creates aliases for
the internal ControlLogix arrays used for the data
for the connection and should be the same for
