PLANET FPS-3300 - Manual (Page 48)

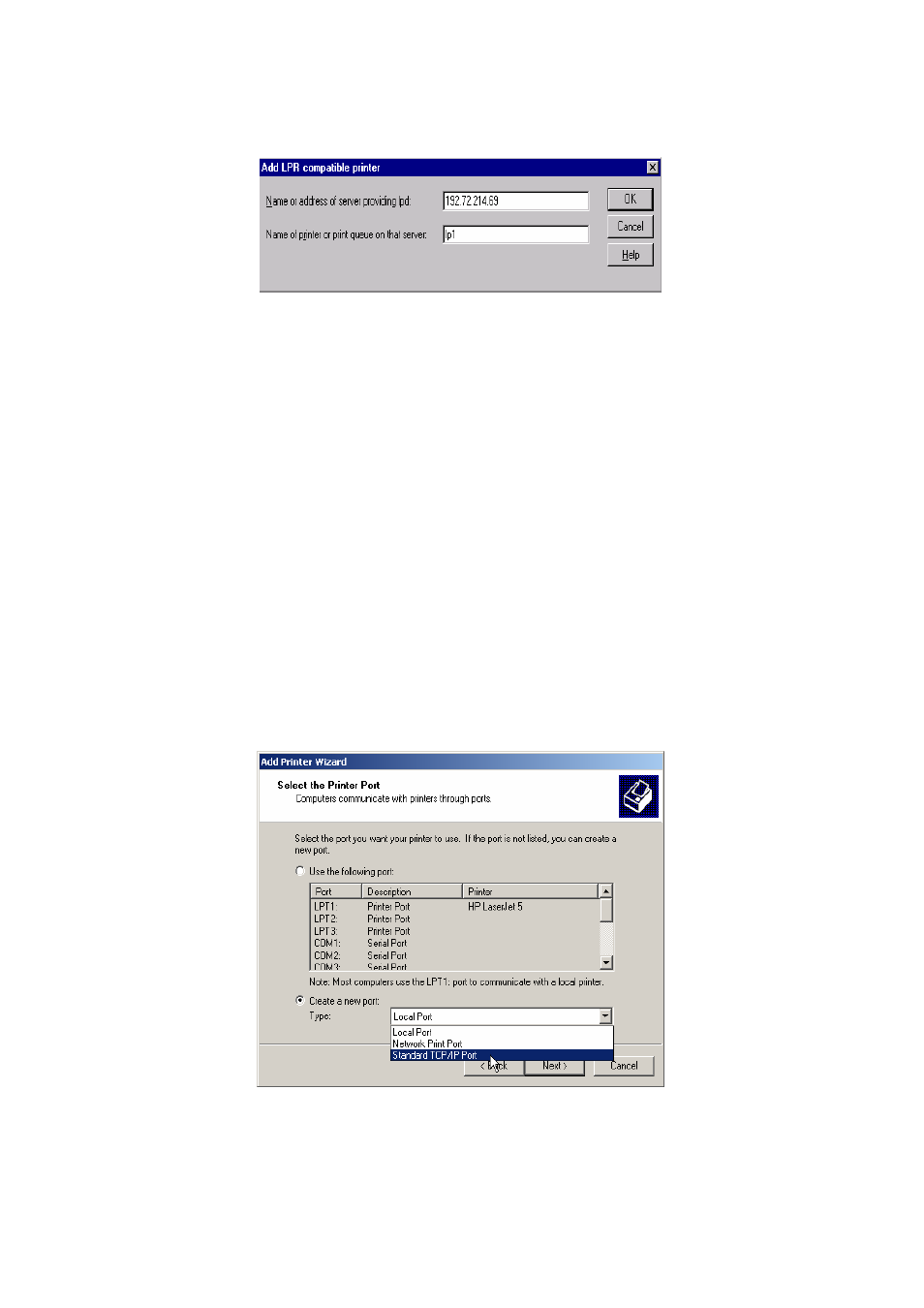

6. The Add LPR compatible printers box will then appear as shown in the following picture. Type in the IP
address assigned to the print server in the Name or address of server providing lpd box.
7. In
the Name of printer or print queue on that server box, type in a printer name, e.g. lp1 for port-1, lp2
for port-2 and lp3 for port-3 of print server. Click OK.
8. In the Printer Ports box, select Close.
9. Click Next.
10. Select the appropriate printer manufacturer and printer type list and click Next.
11. Select Shared. Type in a new Share Name or leave it in default and click Next.
12. A message reading, “After your printer is installed, Windows can print a test page so you can confirm that
the printer is set up properly.”, Select Yes (Recommended) and click Finish.
8.3 Windows 2000/XP/2003 Standard TCP/IP Port Printing Installation
1. Click
Start, point to Settings, and select Printer.
2. Run Add Printer, Click Next.
3. The Add Printer Wizard screen will appear, Select Local Printer and click Next.
4. From the type of Create a new port box as shown in the following picture, select the Standard TCP/IP
Port, Click Next.
5.
The Add Standard TCP/IP Printer Port Wizard box will then appear as shown the picture as below, and
type in the IP address assigned to the print server in the Printer Name or IP Address box, Click Next.
48
