Switch Information
Display the System Information and Port Status, which allows you to see the system
information, current link status, port disable/enable status, speed/duplex mode, flow
control status and trunk status of each port. Explained on section 3.2.4.
Reboot Switch
Allow user to reset the FNSW-2402S back to factory default and restart the FNSW-2402S.
Explained in section 3.2.5.
Logout
Allow user to logout the FNSW-2402S console interface. Explained in section 3.2.6.
3.2.3 Switch Static Configuration
Press “Enter” to access the screen of Switch Static Configuration from the main menu
screen (please see the figure3-4). The following screen in Figure 3-5 appears. Table 3-2
describes the objects that shown in this screen.

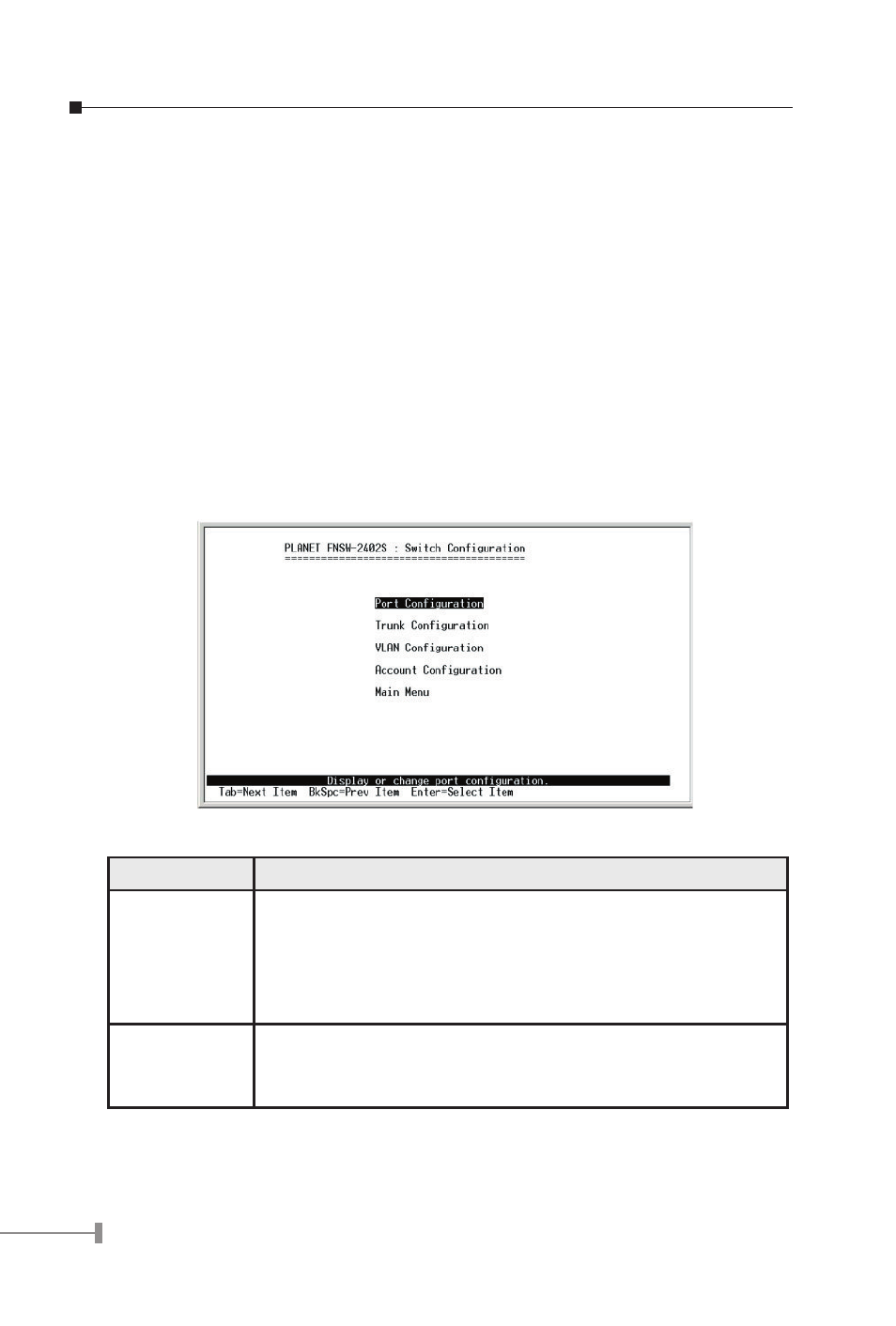

Figure 3-5 Switch Configuration Screen
Object Description
Port
Configuration Allow user to set rate control on each port, disable or enable
each port, set each port to run at Auto-negotiation, NWAY-
FORCE or FORCE mode, modify the speed duplex mode and
disable or enable flow control on each port. Please refer to
section 3.2.3.1 for detail configuration.
Trunk
Configuration Provide seven groups of up to maximum 4-port trunk and
supports fail-over feature. Please refer to section 3.2.3.2 for
detail configuration.
