12 lsi7204lxp-lc connectors and indicator leds, 13 lsi7404xp-lc host adapter configuration, Lsi7204lxp-lc connectors and indicator leds – Avago Technologies LSI7104EP-LC User Manual

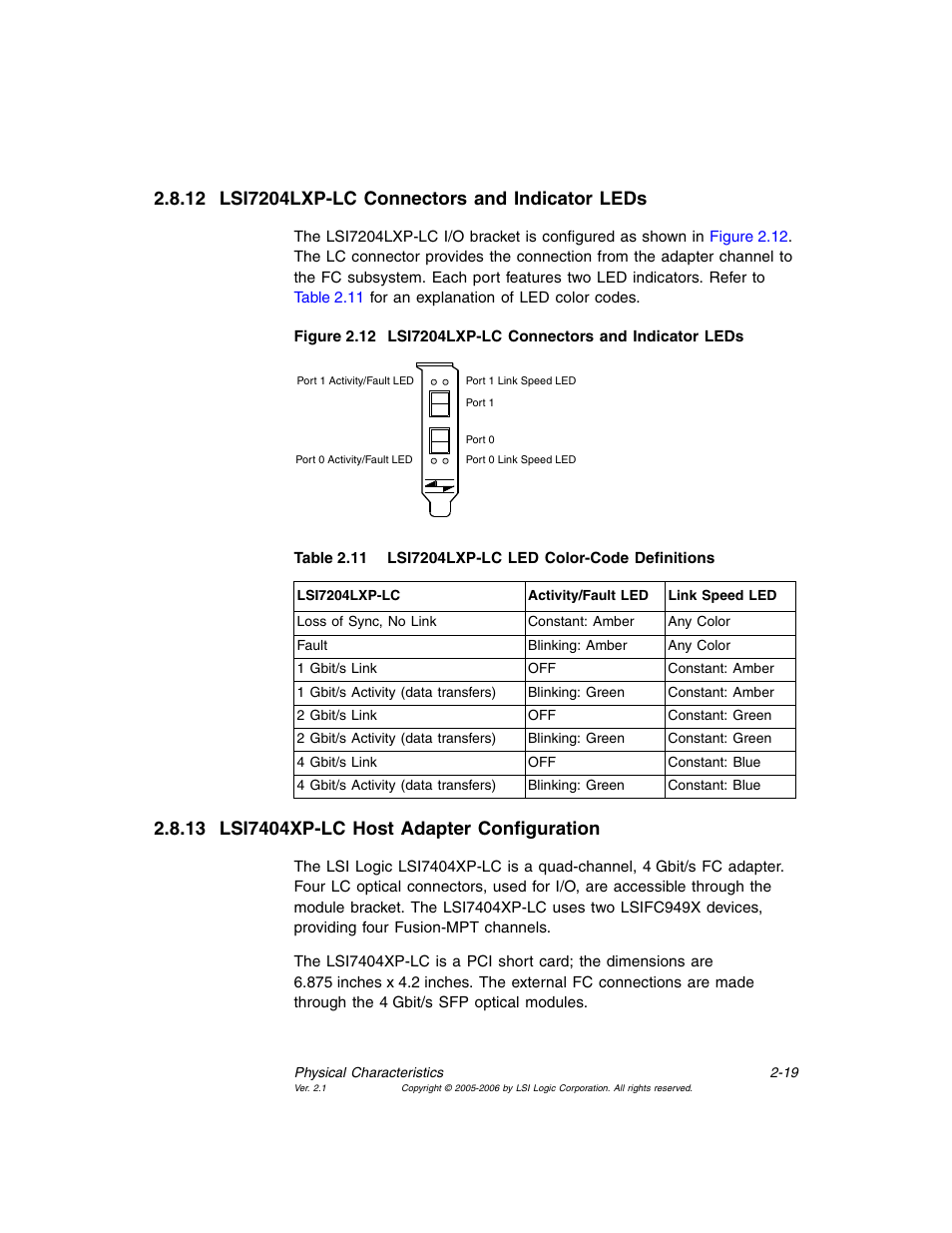

Page 39: Lsi7404xp-lc host adapter configuration, Lsi7204lxp-lc led color-code definitions

Text mode
Original mode

12 lsi7204lxp-lc connectors and indicator leds, 13 lsi7404xp-lc host adapter configuration, Lsi7204lxp-lc connectors and indicator leds | Lsi7404xp-lc host adapter configuration, Lsi7204lxp-lc led color-code definitions | Avago Technologies LSI7104EP-LC User Manual | Page 39 / 76
