DMIIIS
EN - 29

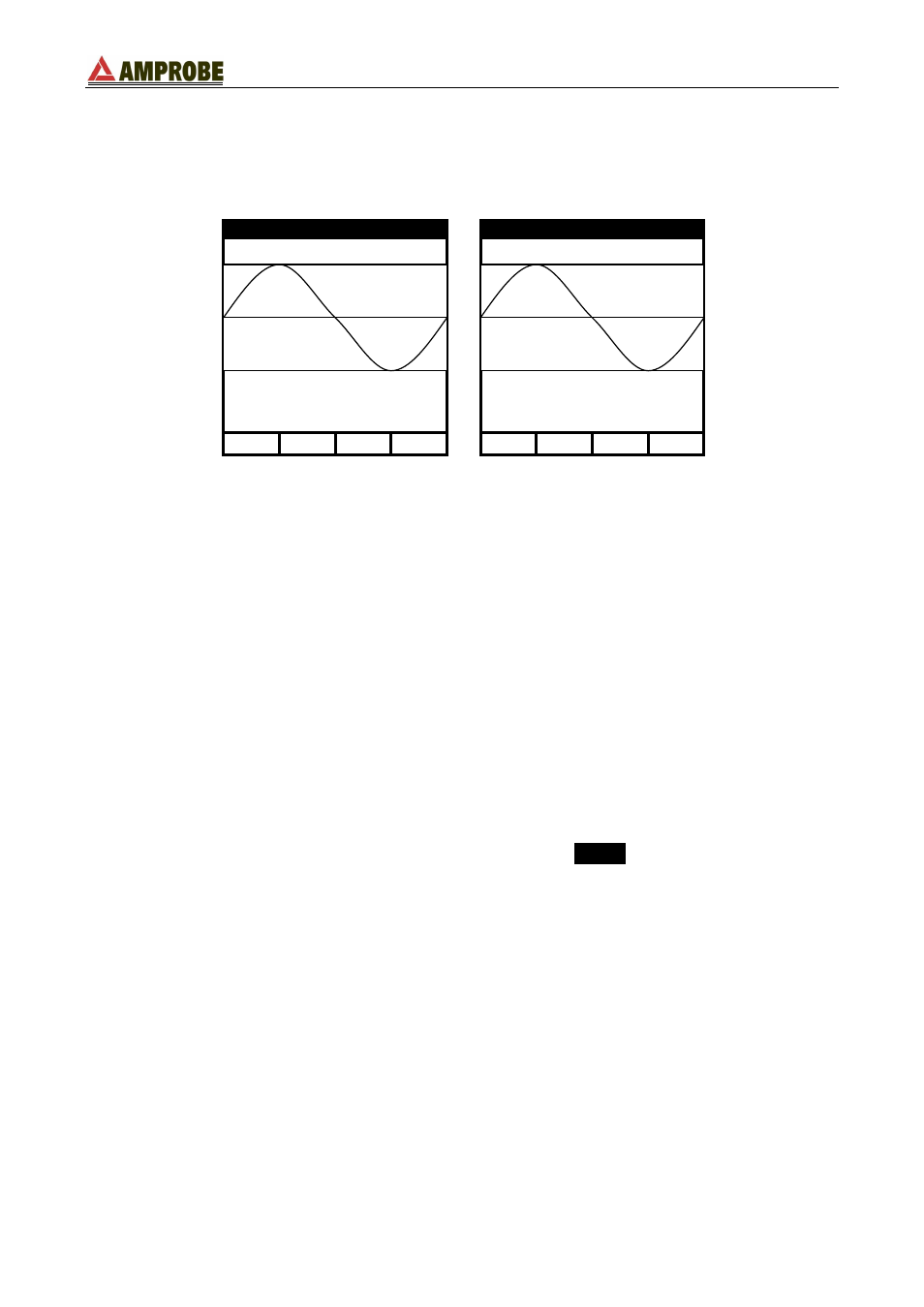

6.2.4. "WAVE" mode
Selecting the WAVE mode one of the below screens will be displayed according to the
settings made as per paragraph 5.2. The screens show the waveform of the phase
currents.
Example of screen in single-
phase mode
Example of screen in “3 wires”
or “4 wires” three-phase mode
The symbols used are described in Tab. 2.
For eventual messages displayed see Appendix 1
Following keys are enabled:
F1:
(only for three-phase mode): to display the values relevant to the
following phase.
ESC:
to return back to METER mode (see paragraph 6.2.2).
SAVE:
to save in the instrume
nt memory a record of “Smp” type (see
paragraph 5.4) containing the instantaneous values of voltage and
current present on the instrument inputs. This function is disabled
during a recording.
ENTER/HOLD: to enable/disable the HOLD function (updating interruption) of the
displayed data. All the previous functions remain available. When the
HOLD function is enabled, the word
HOLD
is displayed. When this
function is enabled it’s not possible to record or take an energy
measurement. This function is disabled during a recording or an
energy measurement.
MENU:
to enter in the MENU mode and change the instrument settings (see
paragraph 5.2 and 5.3
). It’s not possible to enter the configuration
MENU during a recording or an energy measurement.
START/STOP: to record selected parameters
according to the instrument’s settings
(see chapter 7).
27.09.00 17:35:12
I1 = 230.2 A
Ipk1 = 325.5 A
freq = 60.0 Hz
27.09.00 17:35:12
I2 = 400.2 A
Ipk2 = 565.5 A
freq = 60.0 Hz
ChgP
