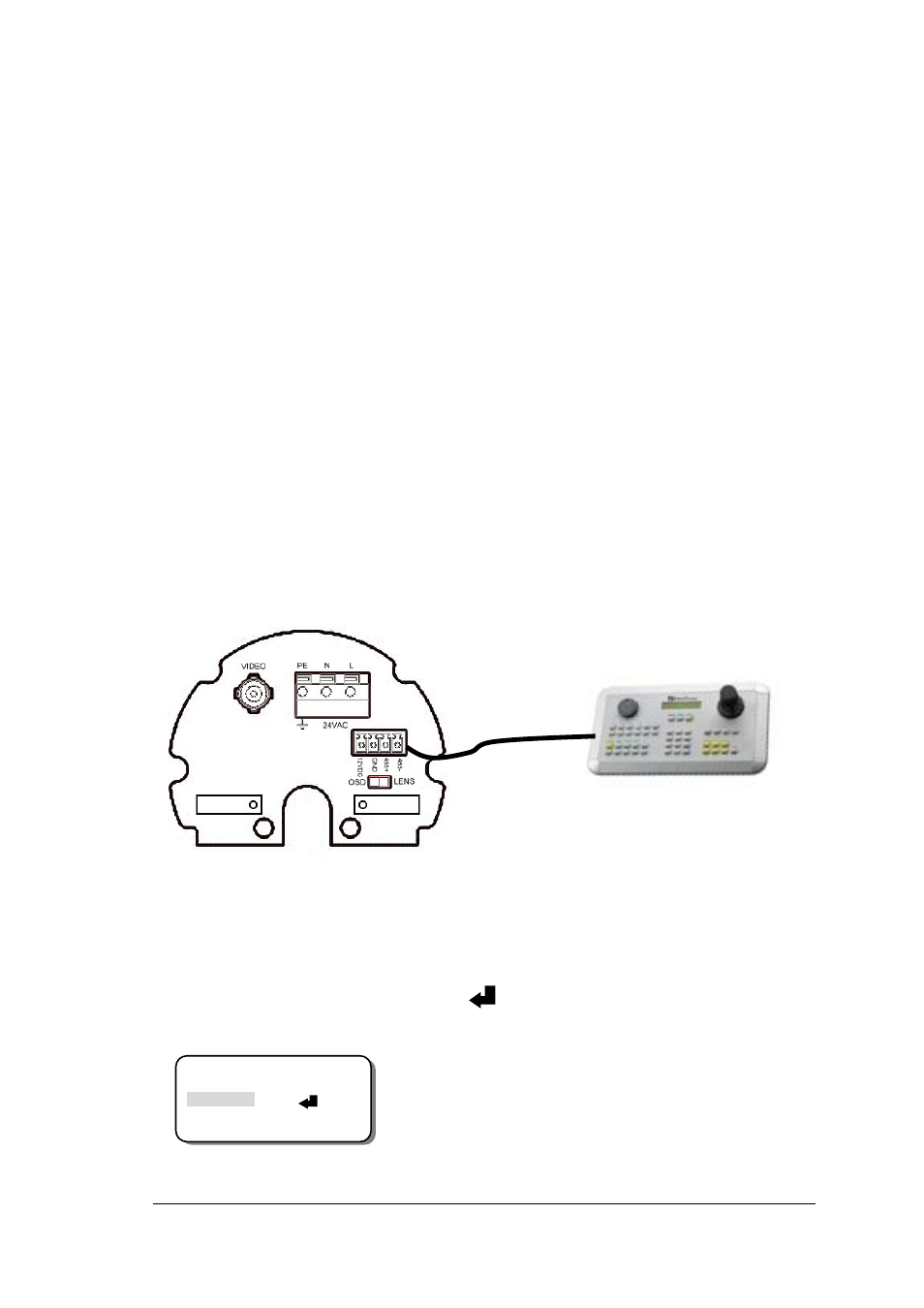

Control from Keyboard EKB500 (Optional)

Note!

Before being able to control keyboard, make sure Keyboard RS485 camera ID, Baud rate match
the camera. (see COM port setting in EKB500 manual). EZ650 camera ID default is 01. Baud

rate is 9600. Support Protocol EVF-1, EVF-2 and Pelco-D.

4.1 Key Features with Keyboard

1. OSD can be set up from Keyboard.

2. Lens Zoom and Focus can be controlled by keyboard.

4.2 OSD Menu Setting by Keyboard

a. Press “Menu” to enter SETUP menu.

b. Move the joystick UP

() and DOWN (). This allows you to move between selection

items in setup menu.

c. If the item has sub-menu setting (sign ), press “Menu” again to display the sub-
menu.

Chapter

SETUP

> LENS DC

<┘

SHUTTER ___
WHITE BAL. ATW
