15

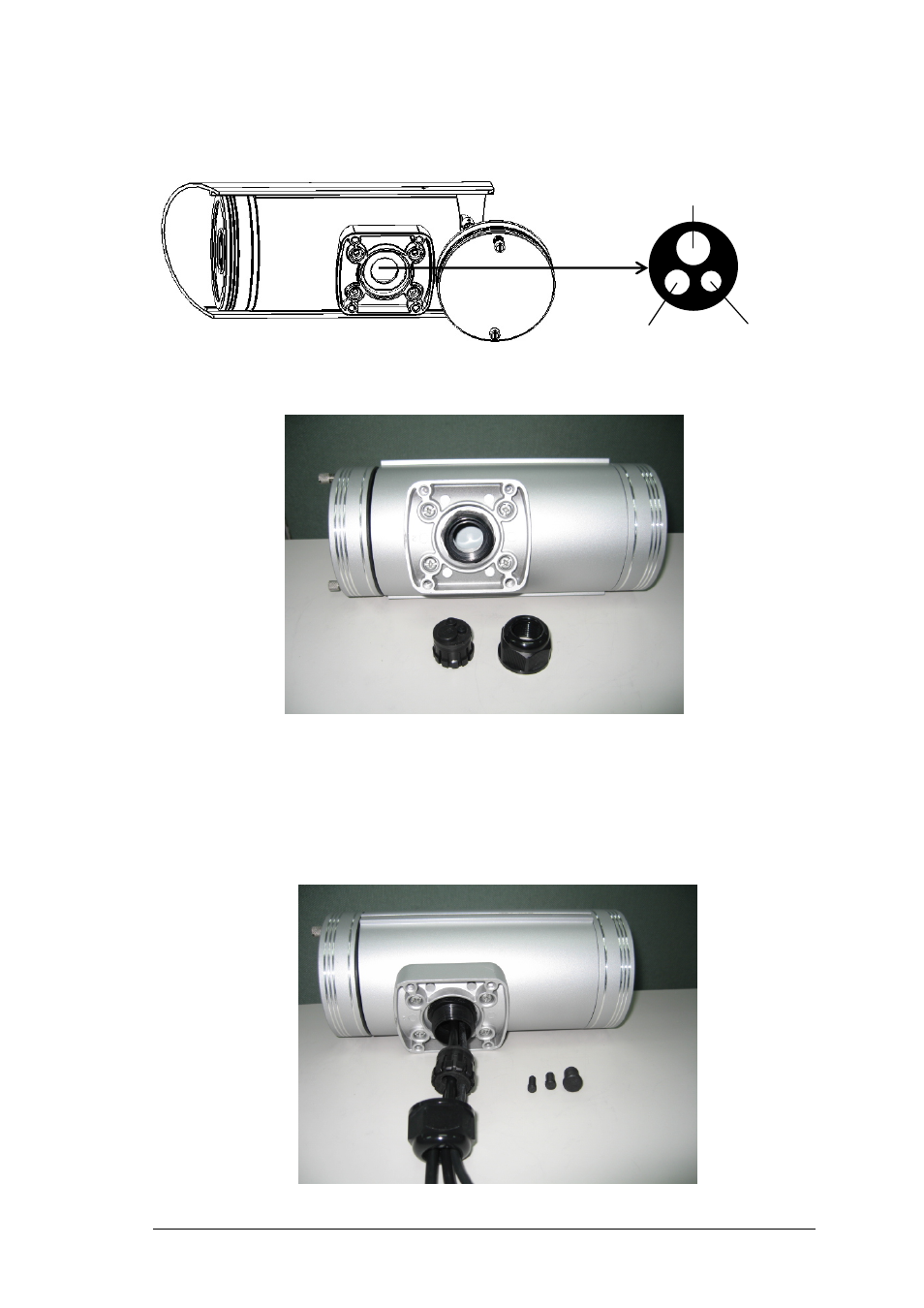

4. Take off the cap of waterproof conduit which is at the camera bottom.
Note: 1. the holes of waterproof conduit were plugged, please remove the plug when you
need to use it for connection.
5. Take coaxial cable, power cable and RS485 cable to pass through waterproof conduit, place
them into camera housing.
Note: Do not connect BNC connector to coaxial cable until coaxial cable has passed through
camera housing otherwise your cable might not pass the housing.
Power cable (Φ10.3mm)
Coaxial cable
(Φ6mm)
RS485
(Φ5mm)
